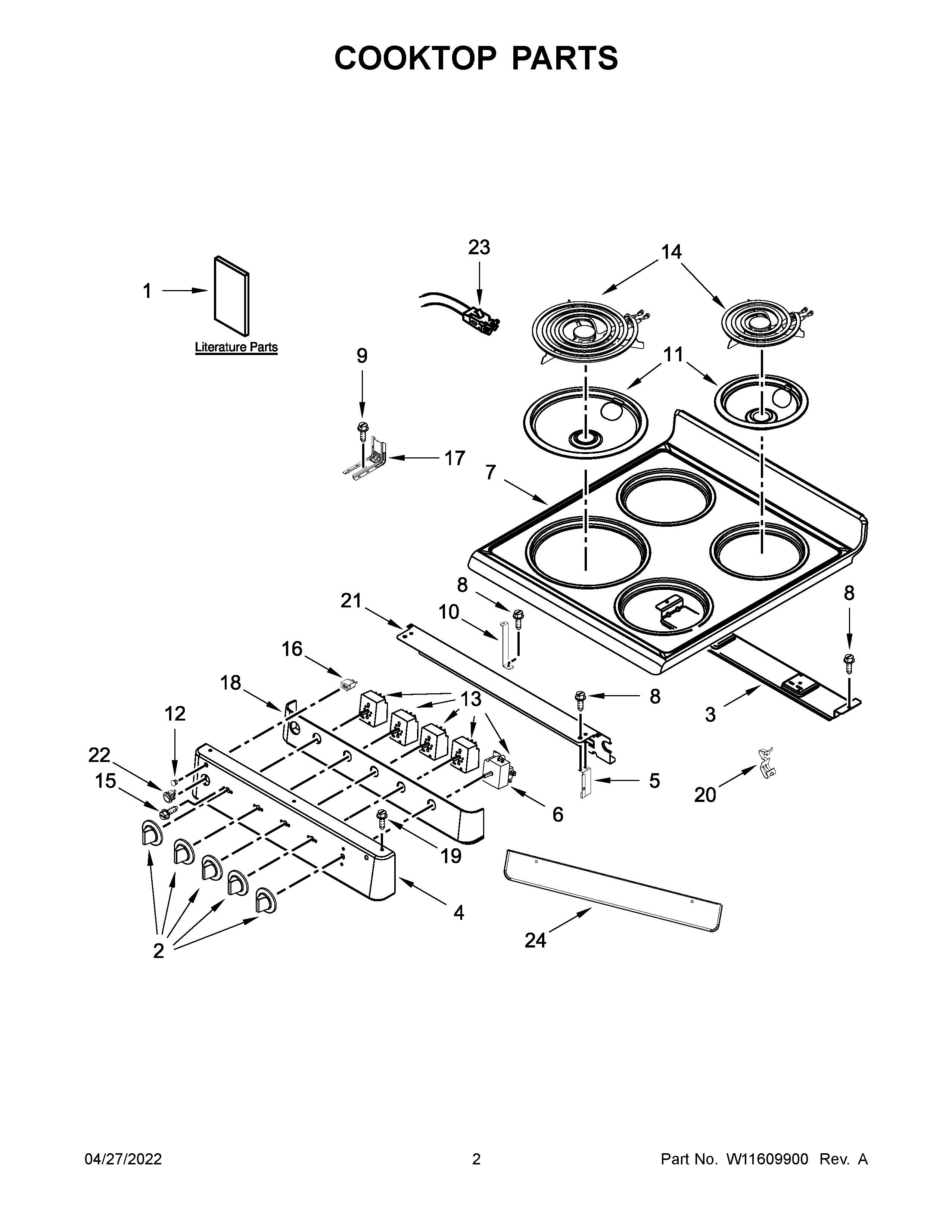

AEP222VAW5 02 – COOKTOP PARTS

Products

Position	Product
NI	3196696 Whirlpool Clip
NI	W11176326 Whirlpool Wire Harness
NI	W11176348 Whirlpool Wire Harness
NI	W11219526 Whirlpool Wire Harness
NI	WP3391018 Whirlpool Wire Tie
NI	WIRE, INFINITE TO TERM BLOCK L1 (BLACK)
NI	WIRE, THERMOSTAT TO BAKE ELEMENT
NI	WIRE, TERM BLOCK TO THERMOST
NI	WPL W11176361
NI	WPL W11241454
NI	WIRE, BROILER ELEMENT TO THERMOSTAT TO BK
NI	WPL W11176362
NI	WPL W11188382
NI	CABINET (NOT A SERVICEABLE PART)
1B	Tech Sheet
1	USE & CARE GUIDE
1A	INSALLATION INSTRUCTIONS
1C	Safer Cooking Tips
2	WPW10183393 Whirlpool Knob
3	Support, Burner
4	W11543893 Whirlpool Panel Manufacturing
5	BRACKET, SUPPORT LEFT
5A	BRACKET, SUPPORT RIGHT
6	WP74009277 Whirlpool Thermostat Assembly
7	W10175582 Whirlpool Cooktop
8	W10837731 Whirlpool Screw Assembly
9	SCREW, ANTI-TIP KIT
10	BRACKET, COOKTOP
11A	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	W11690131 Whirlpool Light Lens
13	WPW10179654 Whirlpool Refrigerator Infinite Switch
13A	SWITCH-IND
14A	W11396792 Whirlpool Surface Coil Element
14	ELMNT-SURF
15	WP3400882 Whirlpool Screw
16	W10852510 Whirlpool Indicator Light
17	WPW10477747 Whirlpool Anchor Tip
18	FOIL, PANEL
19	WP98008545 Whirlpool Screw
20	98005642 Whirlpool Clip
21	SHIELD, CONTROL
22	98011571 Whirlpool Light Switch
23	814399 Whirlpool Receptacle Kit
24	"Z" BRACKET, MANIFOLD
