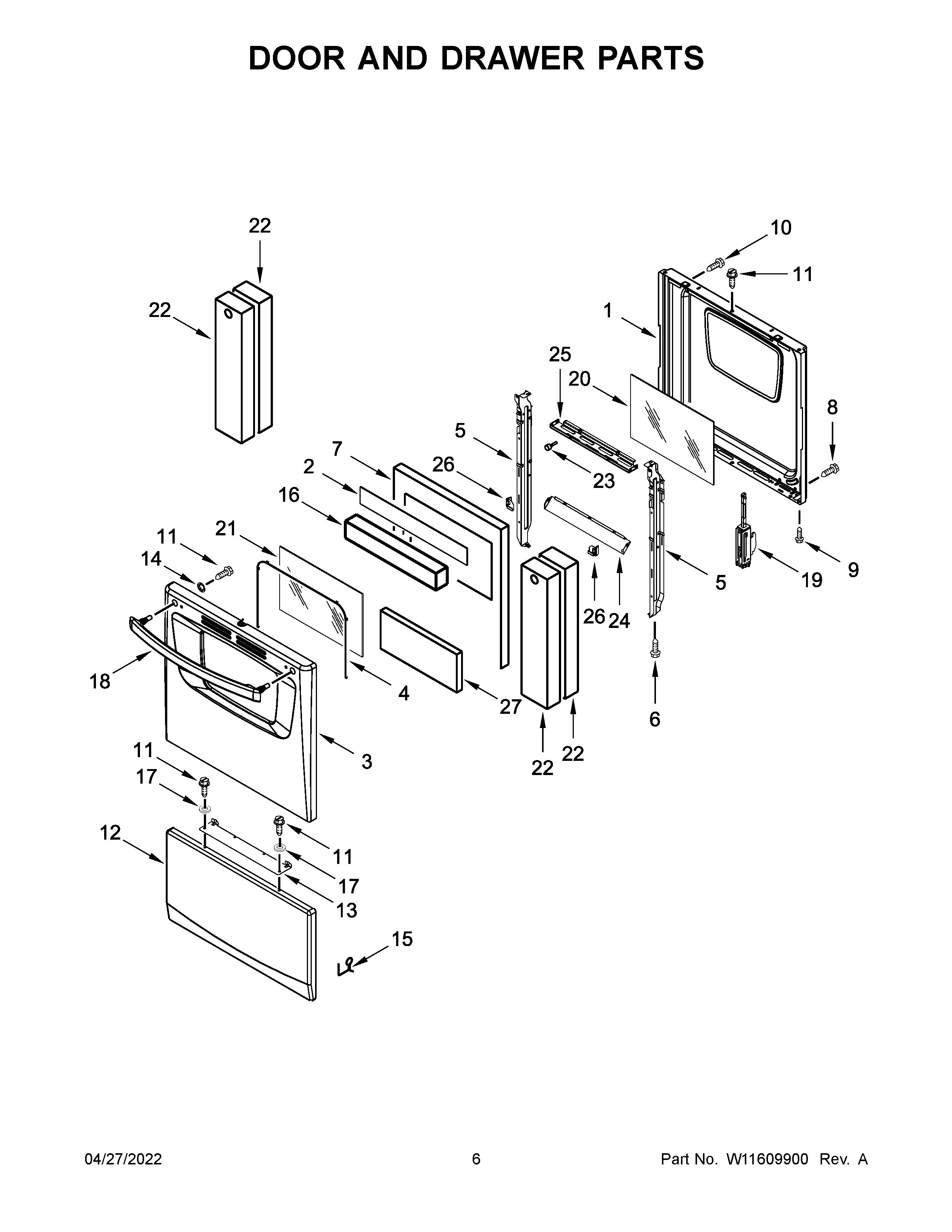

AEP222VAW5 04 – DOOR AND DRAWER PARTS

Products

Position	Product
1	LINER, DOOR
2	RETAINER, UPPER INSULATION
3	PANEL, OVEN DOOR (WHITE)
4	W11522387 Whirlpool Door Gasket
5A	98004629 Whirlpool Oven Retainer
5	98004564 Whirlpool Oven Retainer
6	WP59002061 Whirlpool Microwave Screw
7	W11688807 Whirlpool Insulation
8	W11206744 Whirlpool Screw
9	WP3400832 Whirlpool Screw
10	SCREW
11	3196166 Whirlpool Screw
12	98009307 Whirlpool Oven Drawer Panel
13	W10208117 Whirlpool Mounting Bracket
14	WP98004650 Whirlpool Nut
15	6610364 Whirlpool Oven Clip
16	INSULATION, DOOR
17	W10216805 Whirlpool Washer
18	WP98004947 Whirlpool Door Handle
19	98017873 Whirlpool Oven Door Hinge
20	WPW10201296 Whirlpool Door Glass
21	WPW10168624 Whirlpool Door Glass
22	W11688783 Whirlpool Insulation Assembly
23	98004723 Whirlpool Oven Bumper
24	98012903 Whirlpool Oven Retainer
25	98004981 Whirlpool Oven Retainer
26A	98004952 Whirlpool Oven Clip
26	98004953 Whirlpool Clip
27	W11688579 Whirlpool Insulation
