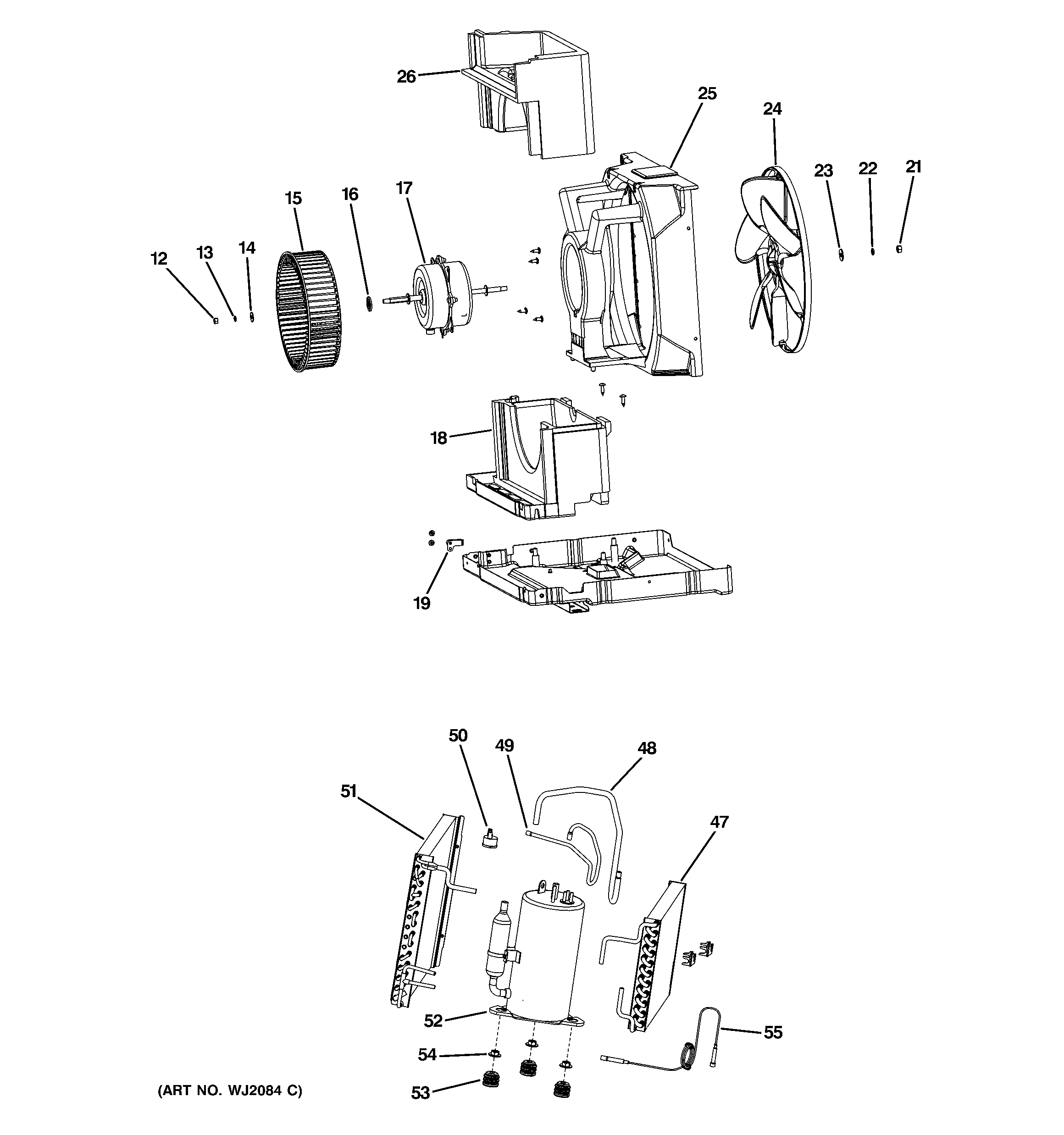

AEQ05LQQ1 BASE PAN & UNIT PARTS

Products

Position	Product
12	WJ01X10344 GE Nut (M5)
13	WJ03X10074 GE Washer Spring (5 mm Diameter)
14	GEN WJ01X10345
15	GEN WJ73X10191
16	GEN WJ43X10081
17	GEN WJ73X10222
18	GEN WJ76X10336
19	WJ02X10035 GE Cable Clamp
21	WJ01X10314 GE Air Conditioner Nut with Washer
22	WJ01X10313 GE Washer Air Conditioner
23	WJ01X10312 GE Air Conditioner Washer
24	GEN WJ73X10221
25	GEN WJ65X10121
26	GEN WJ76X10335
47	WJ88X10249 GE Evaporator Assembly
48	GEN WJ57X10039
49	GEN WJ49X10029
50	GEN WJ23X10158
51	WJ87X10246 GE Condenser Assembly
52	GEN WJ98X10308
53	RUBBER GROMMET
54	WJ01X10335 GE Washer Nut M8
55	GEN WJ53X10245
