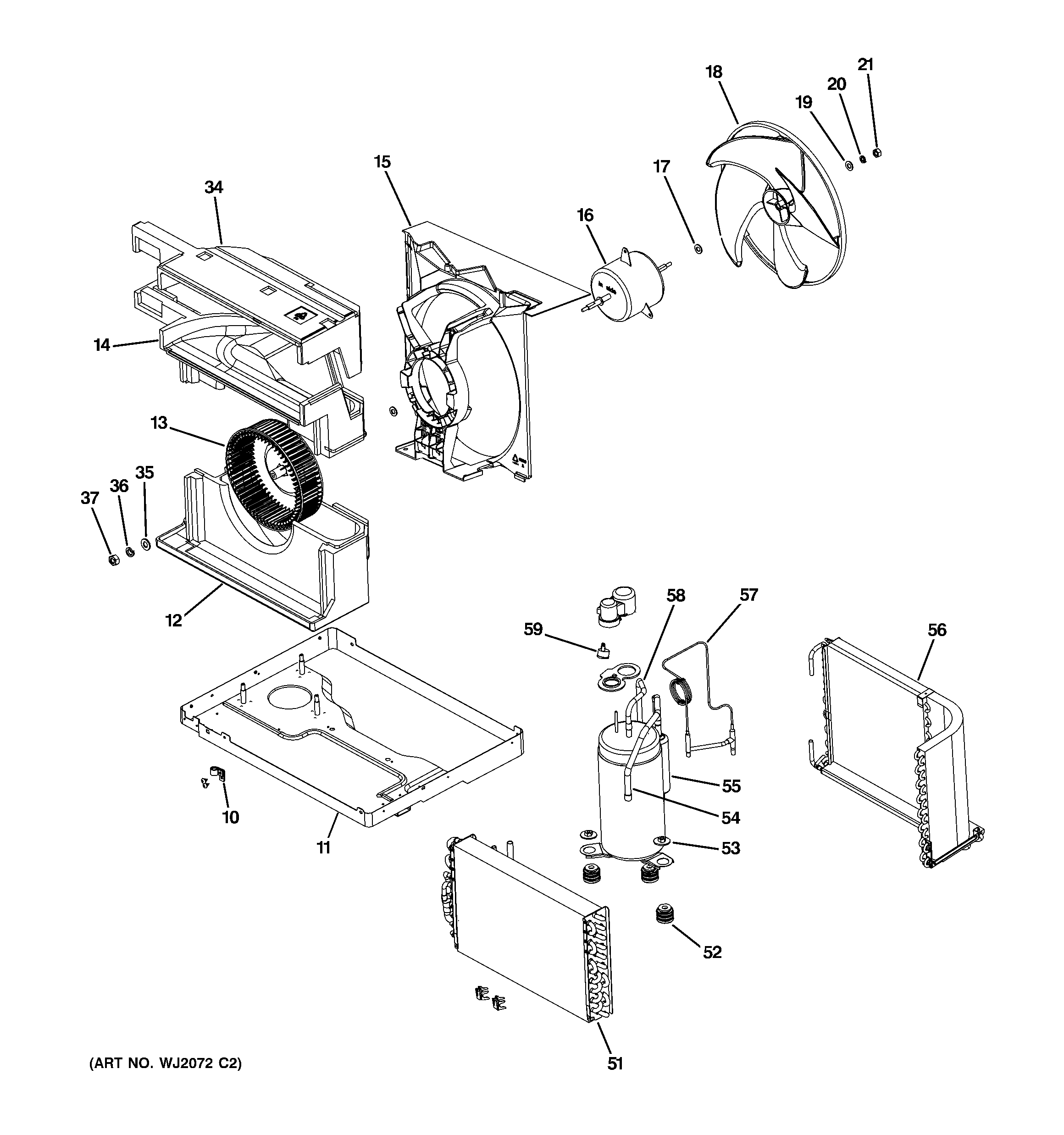

AEQ08ASL1 BASE PAN & UNIT PARTS

Products

Position	Product
10	GEN WJ03X10091
11	WJ89X10066 GE Base Assembly
12	WJ76X10314 GE Lower Propeller Housing
13	FAN, CENTRIFUGAL
14	WJ76X10315 GE Propeller Housing
15	WJ01X10346 GE Motor Support
16	GEN WJ94X10336
17	WJ43X10072 GE Gasket (8 mm Diameter)
18	WJ73X10218 GE Axial Flow Fan
19	WJ01X10347 GE Washer (6mm)
20	WJ01X10313 GE Washer Air Conditioner
21	WJ01X10314 GE Air Conditioner Nut with Washer
34	GEN WJ79X10252
35	GEN WJ01X10345
36	WJ03X10074 GE Washer Spring (5 mm Diameter)
37	WJ01X10344 GE Nut (M5)
51	GEN WJ88X10251
52	GEN WJ01X10385
53	GEN WJ01X10325
54	WJ57X10045 GE Suction Tube
55	GEN WJ98X10290
56	GEN WJ87X10289
57	GEN WJ53X10266
58	GEN WJ49X10052
59	GEN WJ23X10148
