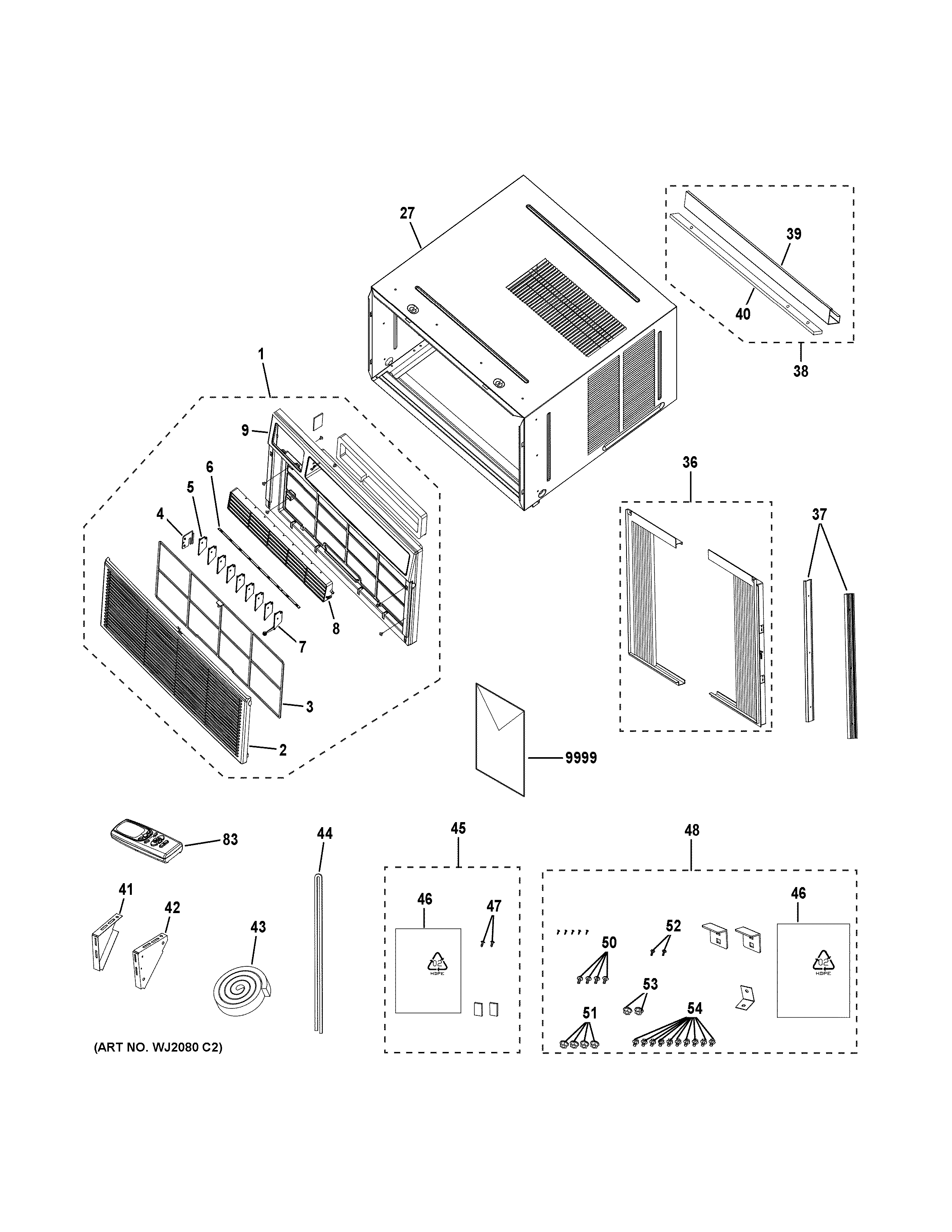

AEQ24DQL1 GRILLE & CHASSIS PARTS

Products

Position	Product
1	WJ82X10085 GE Front Panel Assembly
2	WJ71X10738 GE Air Intake Grill Front
3	WJ71X10710 GE Air Conditioner Filter
4	SUPPORT OF LOUVER
5	SWING LOUVER
6	LINK VERTICAL LOUVER
7	SWING LOUVER 1
8	AIR GUIDE
9	PANEL ASM, FRONT
27	CABINET ASM
36	WJ69X10017 GE Air Conditioner Curtain Assembly
37	WJ68X10064 GE Cabinet Support
38	CURTAIN ASM
39	WJ82X10069 GE Top Guide
40	WJ43X10082 GE Gasket Form
41	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
42	WJ67X10003 GE Right Side Case Mount Bracket
43	WJ43X10079 GE Window Top Foam Gasket
44	WJ43X10080 GE Window Seal Sash
45	WJ01X10415 GE Hardware Kit
46	WJ01X10350 GE Plastic Bag
47	SCREW
48	WJ01X10433 GE Hardware Installation
50	BOLT M5X13
51	NUT M5X5
52	BOLT M6X19
53	NUT M6X6
54	SCREW M4.8X8
83	WJ26X20522 GE Air Conditioner Remote Controller
9999	MINI MANUAL
9999	USE & CARE MANUAL
