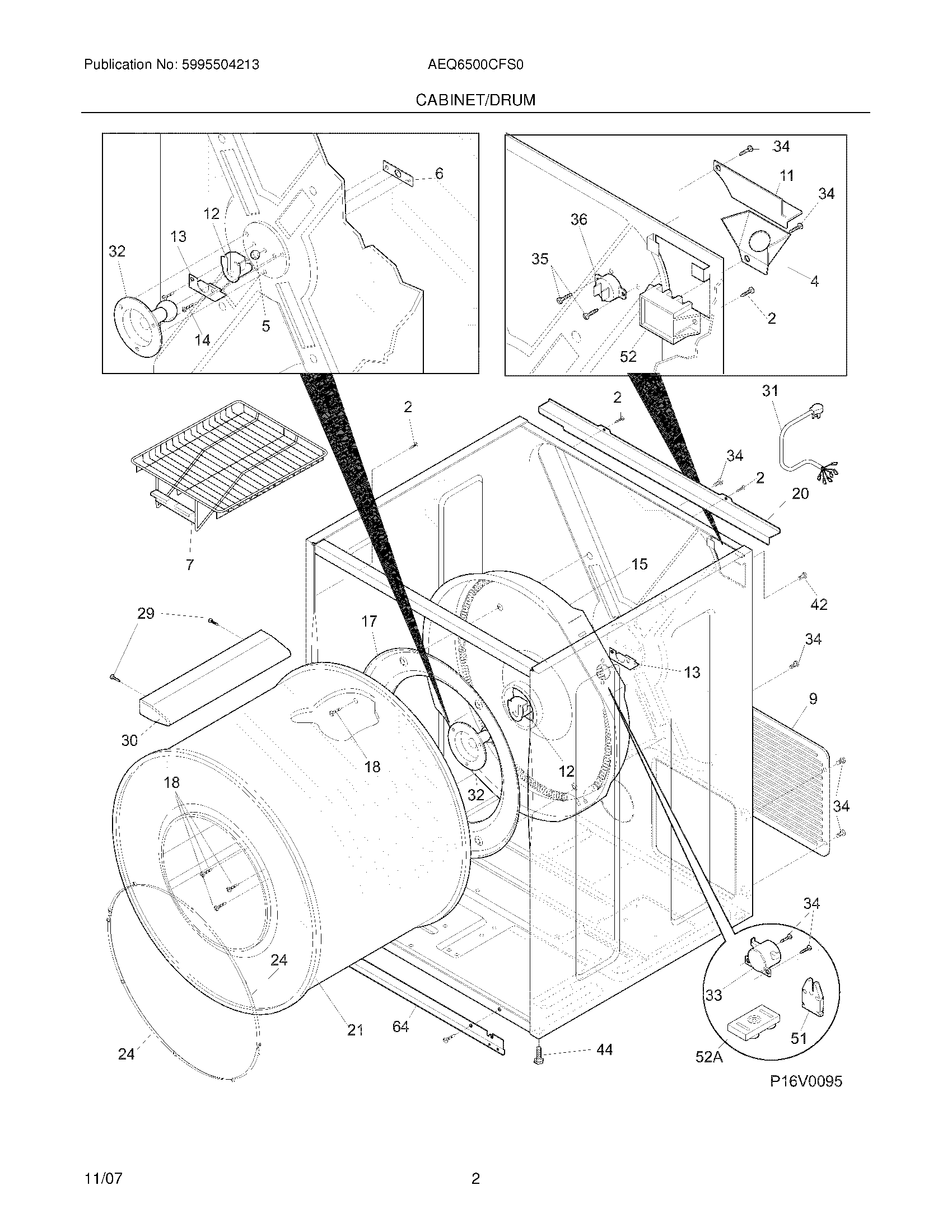

AEQ6500CFS0 03 – CABINET/DRUM

Products

Position	Product
NI	WCI 5303281153]
NI	5303307893 Frigidaire HI TEMP Rear Bearing Lubricant Kit
NI	WCI 134394200
4	WCI 131785200
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
7	WCI 134121200
9	WCI 131793200
11	WCI 5303211428
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HSG ASSY 5/16" (DW1)
17	3204254 Frigidaire Baffle Assembly
18	131168200 Frigidaire Dryer Screw
20	WCI 134166500
21	WCI 134122592
24	137513300 Frigidaire Dryer Drum Glide
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	5304505408 Frigidaire Cord
32	131777700 Frigidaire Dryer Bearing Drum
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	131892100 Frigidaire Screw
36	134120900 Frigidaire Dryer Limiter Thermal
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
44	WCI 134344900
51	131472100 Frigidaire Dryer Insulator Heater Coil
52A	3202786 Frigidaire Terminal Block
52	134101400 Frigidaire Dryer Kit Terminal Block
64	WCI 134360100
