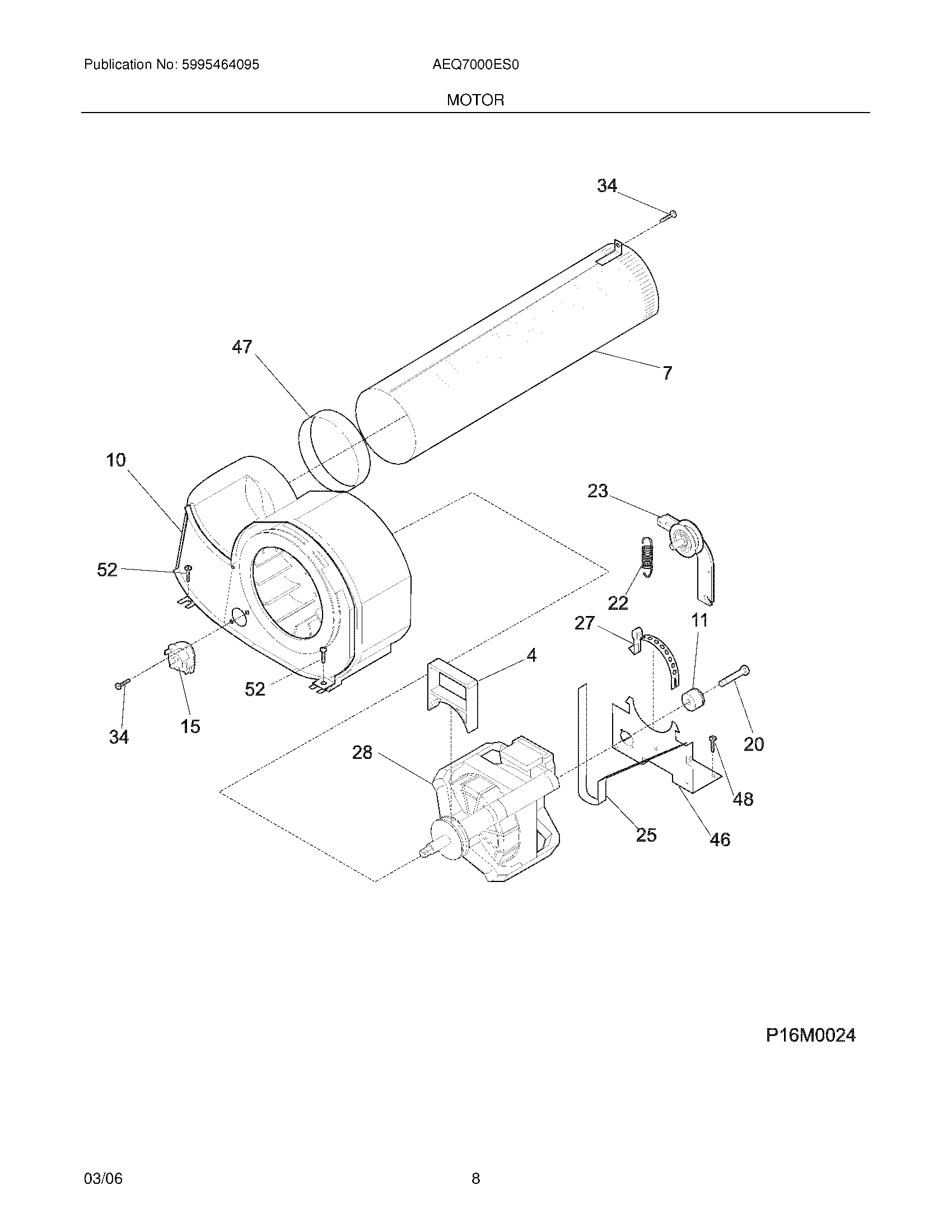

AEQ7000ES0 09 – MOTOR

AEQ7000ES0 09 – MOTOR

Written by

in

AEQ7000ES0 09 – MOTOR

Products

PositionProduct
NITube,exhaust ,side/bottom ,Optional Kit
4131435200 Frigidaire Fan Housing Lock
7Tube,exhaust ,rear ,w/mtg bracket
10ASMY-BLWR HSG/COV/W
11131749800 Frigidaire Spacer
15134587700 Frigidaire Washer Control Thermistor
20131017900 Frigidaire Screw
22131601000 Frigidaire Idler Spring Assembly
23131863007 Frigidaire Washer Idler Pulley Assembly
25134503600 Frigidaire Dryer Belt
27134242400 Frigidaire Washer Clamp Assembly
28131560100 Frigidaire Dryer Drive Motor with Pulley
34131243700 Frigidaire Screw
46WCI 134203400
47WCI 131633300
48131168200 Frigidaire Dryer Screw
52131202300 Frigidaire Screw
