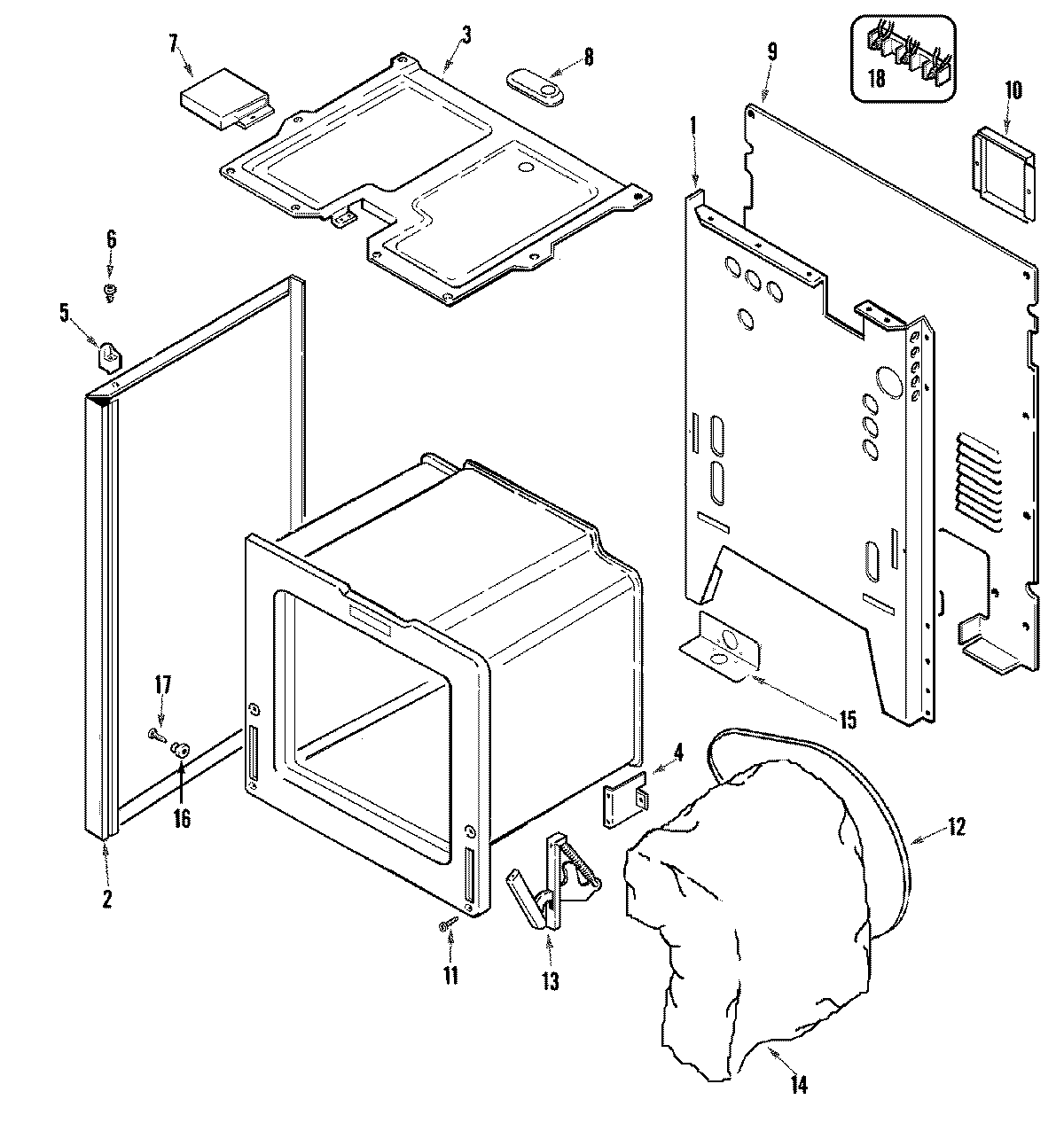

AER1110BAH 01 – BODY

Products

Position	Product
1	GROMMET
1	MAY 74006322
2	MAY 74003236
3	MAY 74003403
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P248-60
7	MAY 74003404
8	COVER, VENT
9	MAY 74004451
10	MAY 4005F427-51
11	WP4159193 Whirlpool Screw
12	MAY 74003385
13	W10876639 Whirlpool Door Hinge Assembly
14	MAY 4804F039-60
14	MAY 74003112
15	W10190166 Whirlpool Service Bracket
15	SCREW
16	MAY 8004P024-60
17	MAY 74001449
17	W11693756 Whirlpool Screw Assembly
18	WP7103P027-60 Whirlpool Nut
18	SCREW (10ABX1.0-ZN)
18	WPW10245259 Whirlpool Terminal Block
