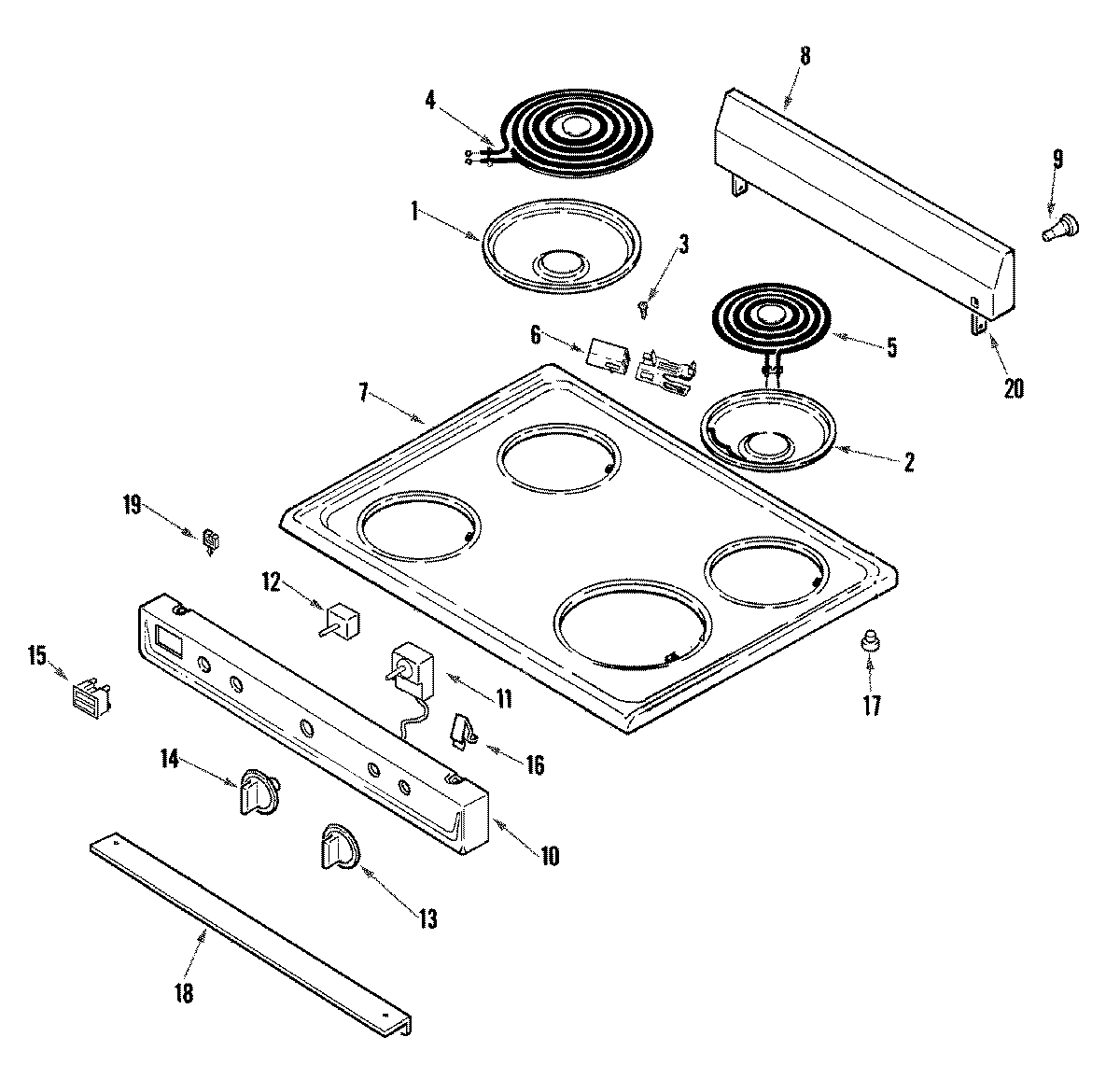

AER1110BAH 02 – CONTROL PANEL/TOP ASSEMBLY

AER1110BAH 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER1110BAH 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
3MAY 7118P013-60
4WPY04000035 Whirlpool Surface Element
4WP9761346 Whirlpool Stove Surface Burner Element
5WPW10345407 Whirlpool Surface Element
5WPY04000036 Whirlpool Surface Element
6MAY 1430306K
7TOP, MAIN (WHT)
7MAY 3802F085-80
8MAY 74003972
9SPACER, HINGE (MAIN TOP)
10BRACKET, CNTL. PANEL
10MAY 74003401
11WP74009277 Whirlpool Thermostat Assembly
11MAY 74003267
12SCREW
12WP7403P239-60 Whirlpool Oven Switch
12WP7403P238-60 Whirlpool Infinite Switch (Small Element)
13WP74003280 Whirlpool Knob Assembly
13MAY 74009709
14WP7737P030-60 Whirlpool Knob Switch
15MAY 74006106
16MAY 74004827
17MAY 8010P048-60
18SCREW
18SUPPORT UPPER FRONT PANEL
19MAY 7112P029-60
20MAY 3801F242-51
20MAY 3801F243-51
