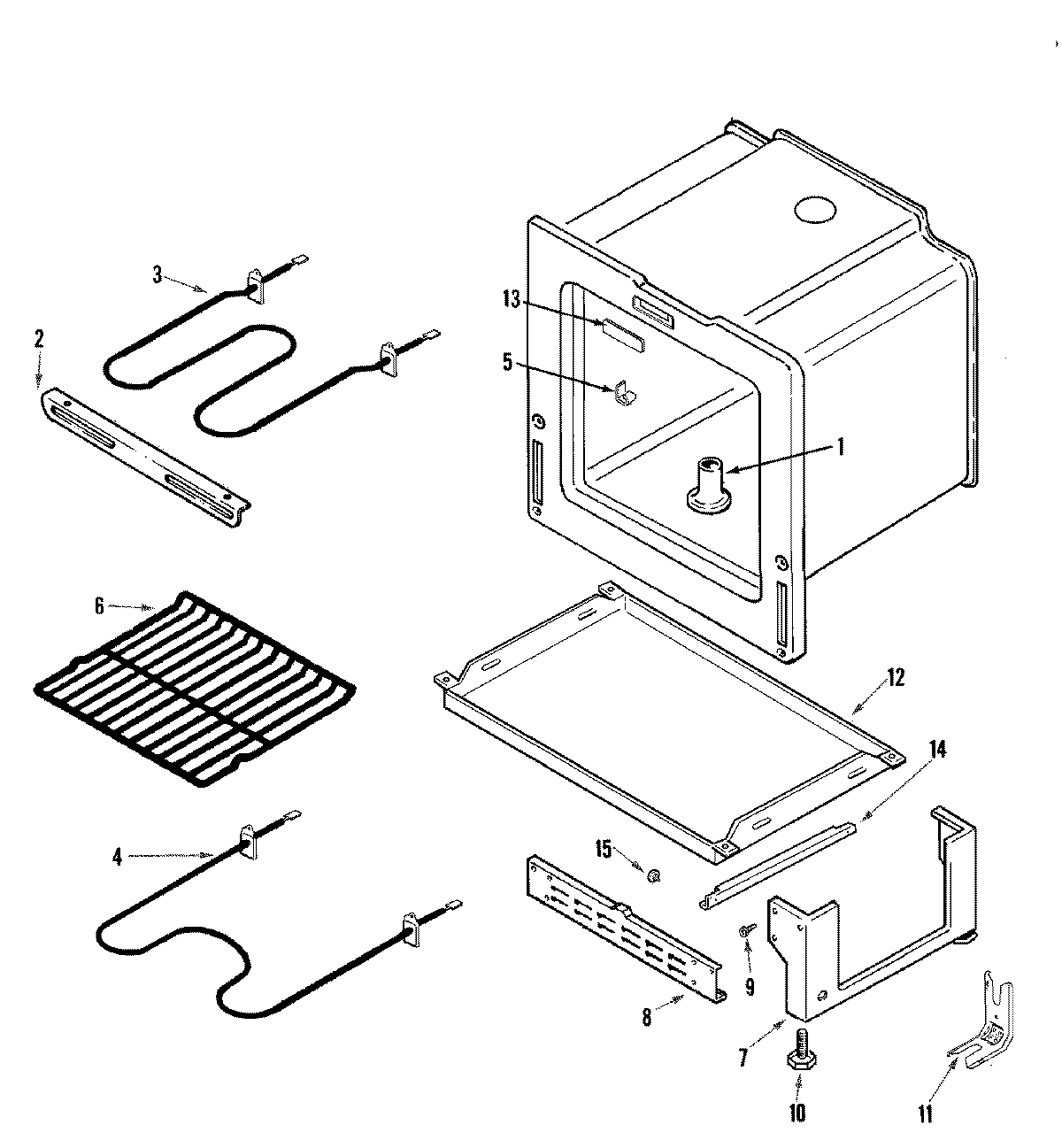

AER1110BAH 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P020-60
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	WP7112P004-60 Whirlpool Thermal Clip
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003405
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	MAY 74005250
13	PLUG, LOCK SLOT
14	SCREW
14	RUNNER, DRAWER
15	WP74004078 Whirlpool Door Roller
15	WP488130 Whirlpool Air Conditioner Nut
