AER1140AGH 03 – DOOR/DRAWER

AER1140AGH 03 – DOOR/DRAWER

Written by

in

AER1140AGH 03 – DOOR/DRAWER

Products

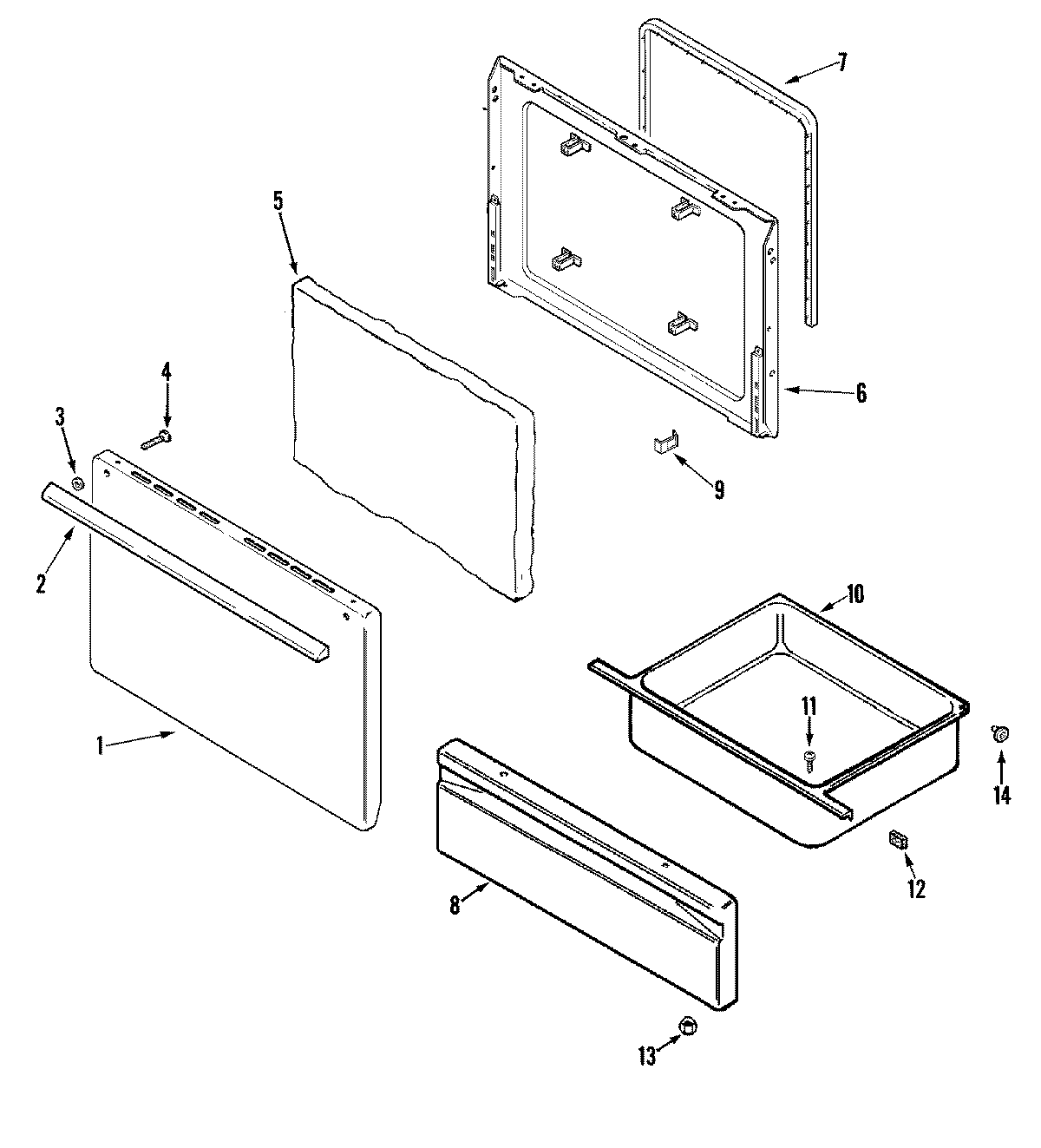

PositionProduct
1MAY 12001260
1SCREW
2WP2411F013-70 Whirlpool Door Handle
3MAY 8010P084-60
4WP3387230 Whirlpool Screw
5MAY 4804F050-60
6MAY 74003240
7WP7212P043-60 Whirlpool Oven Door Seal Gasket
8MAY 74003399
9CLIP, DOOR
10MAY 74003618
11WP7101P072-60 Whirlpool Screw
12MAY 8010P085-60
13WPW10131078 Whirlpool Nut Assembly
14MAY 74003566
14WP488130 Whirlpool Air Conditioner Nut
