AER1140AGH 04 – OVEN/BASE

AER1140AGH 04 – OVEN/BASE

Written by

in

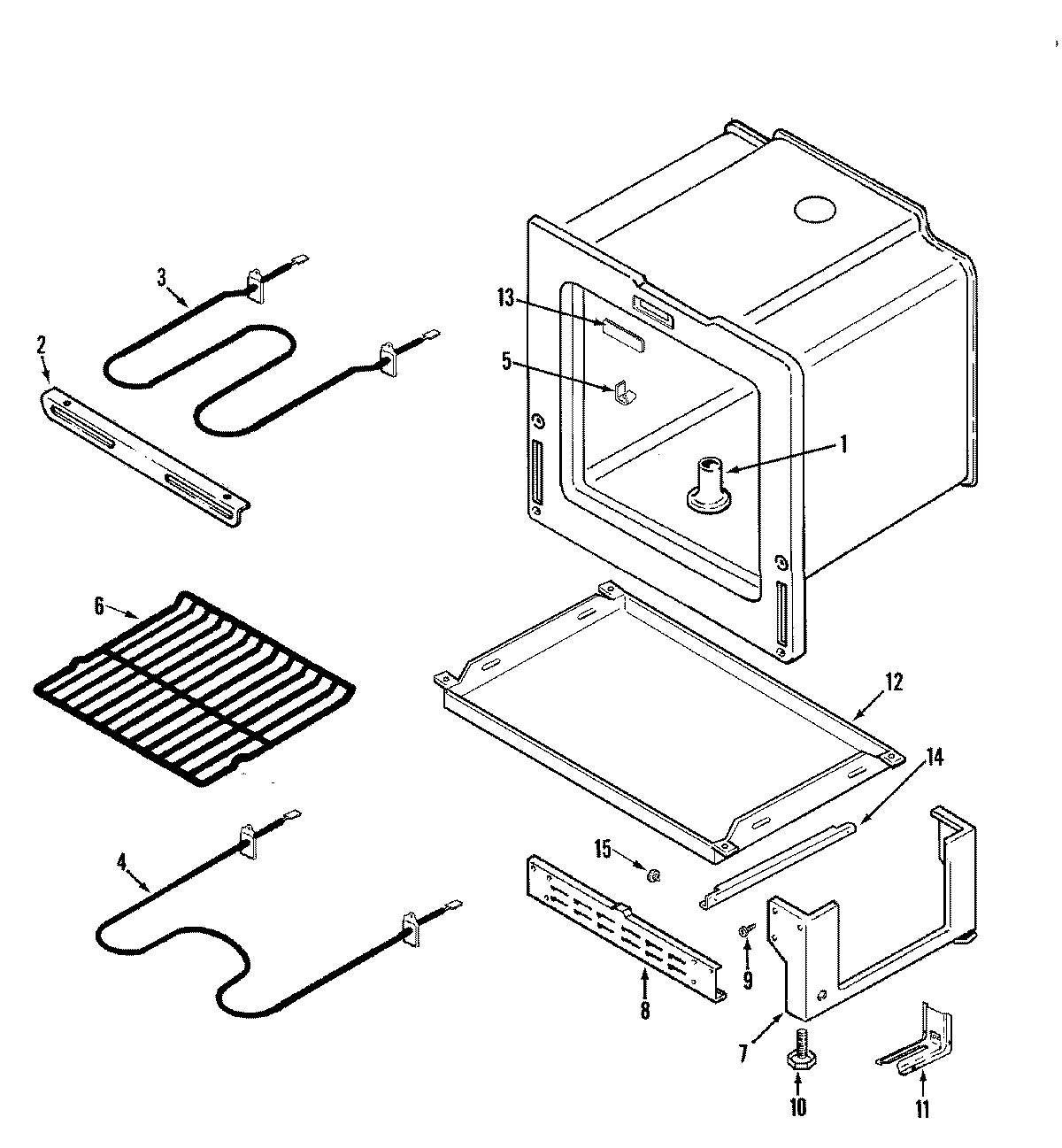

AER1140AGH 04 – OVEN/BASE

Products

PositionProduct
1MAY 8026P019-60
1W11693756 Whirlpool Screw Assembly
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 74003393
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11MAY 74002311
12MAY 74003392
13PLUG, LOCK SLOT
14RUNNER, DRAWER
14SCREW
15MAY 74003566
15WP488130 Whirlpool Air Conditioner Nut
