AER1350AMH 01 – BODY

AER1350AMH 01 – BODY

Written by

in

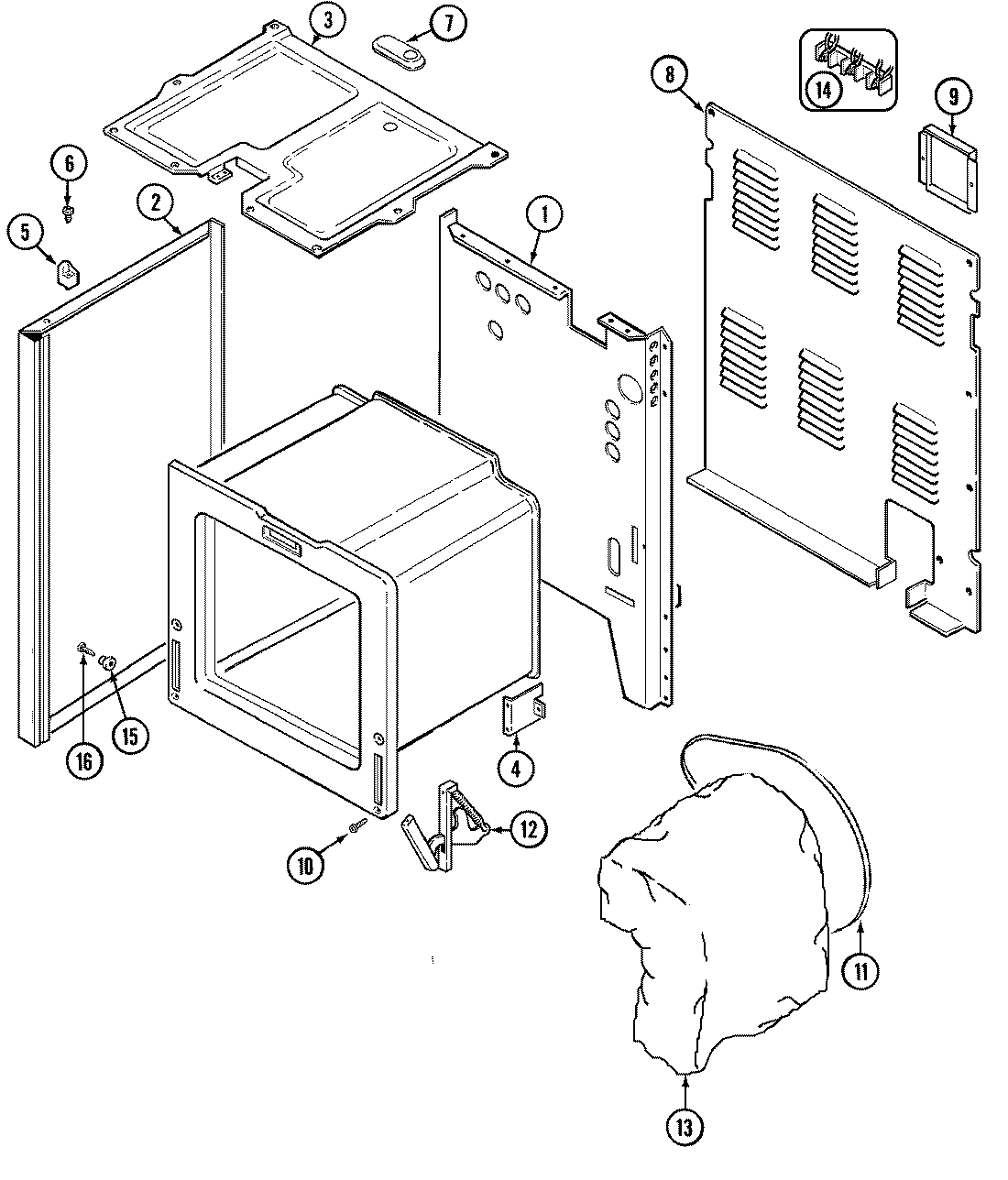

AER1350AMH 01 – BODY

Products

PositionProduct
1MAY 74006322
1GROMMET
1MAY 74002334
1MAY 74001772
2MAY 74004590
3MAY 4011F239-19
3WP74003976 Whirlpool Screw
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
9SCREW
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14WP7103P027-60 Whirlpool Nut
14SCREW (10ABX1.0-ZN)
14WPW10245259 Whirlpool Terminal Block
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74001449
