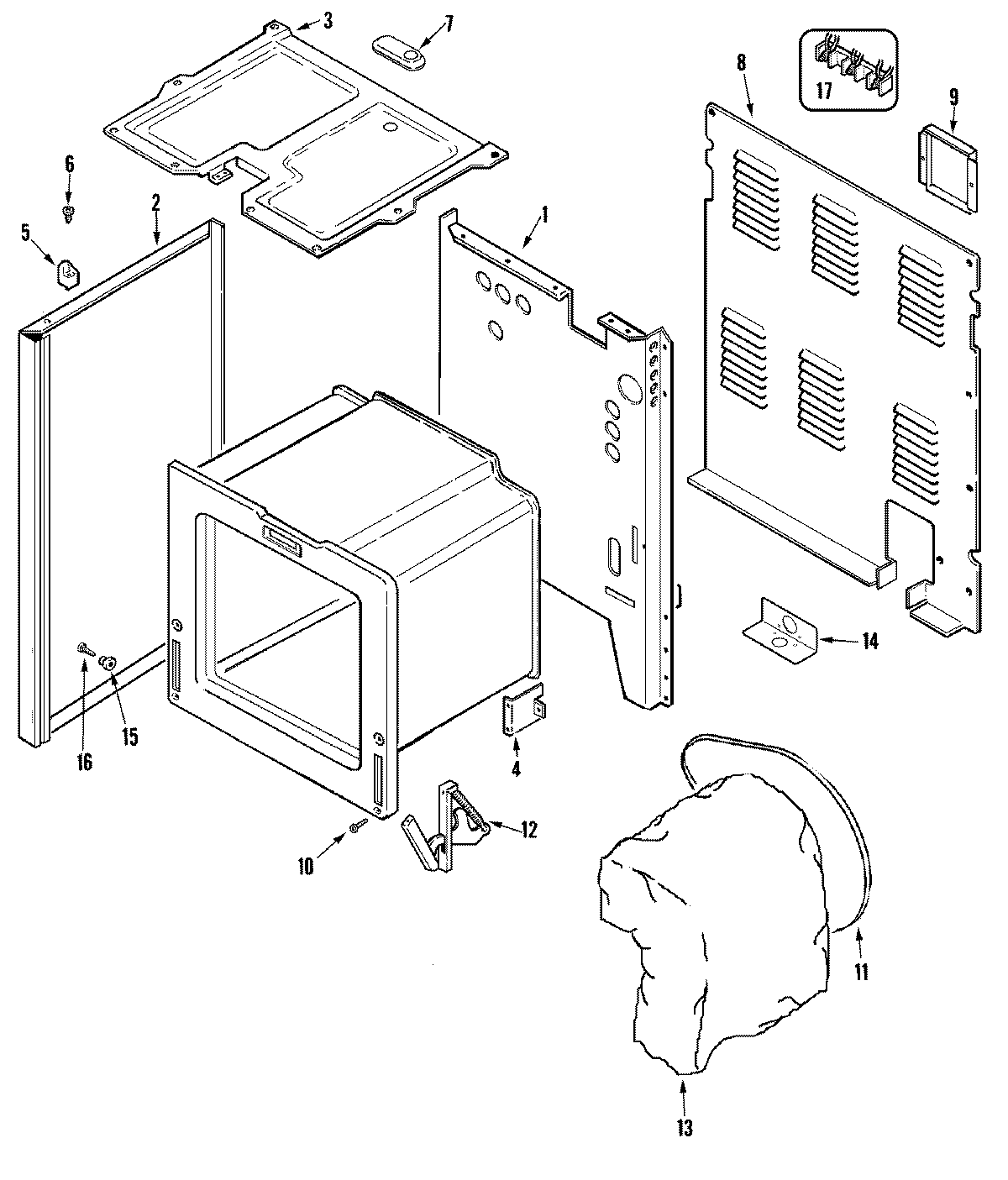

AER1350BAH 01 – BODY

Products

PositionProduct
1MAY 74006322
1MAY 74002334
1GROMMET
2MAY 74003236
3MAY 4011F239-19
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW (8BX3/8-NI)
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
10WP4159193 Whirlpool Screw
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14SCREW
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16MAY 74001449
16W11693756 Whirlpool Screw Assembly
17SCREW (10ABX1.0-ZN)
17WPW10245259 Whirlpool Terminal Block
17WP7103P027-60 Whirlpool Nut
