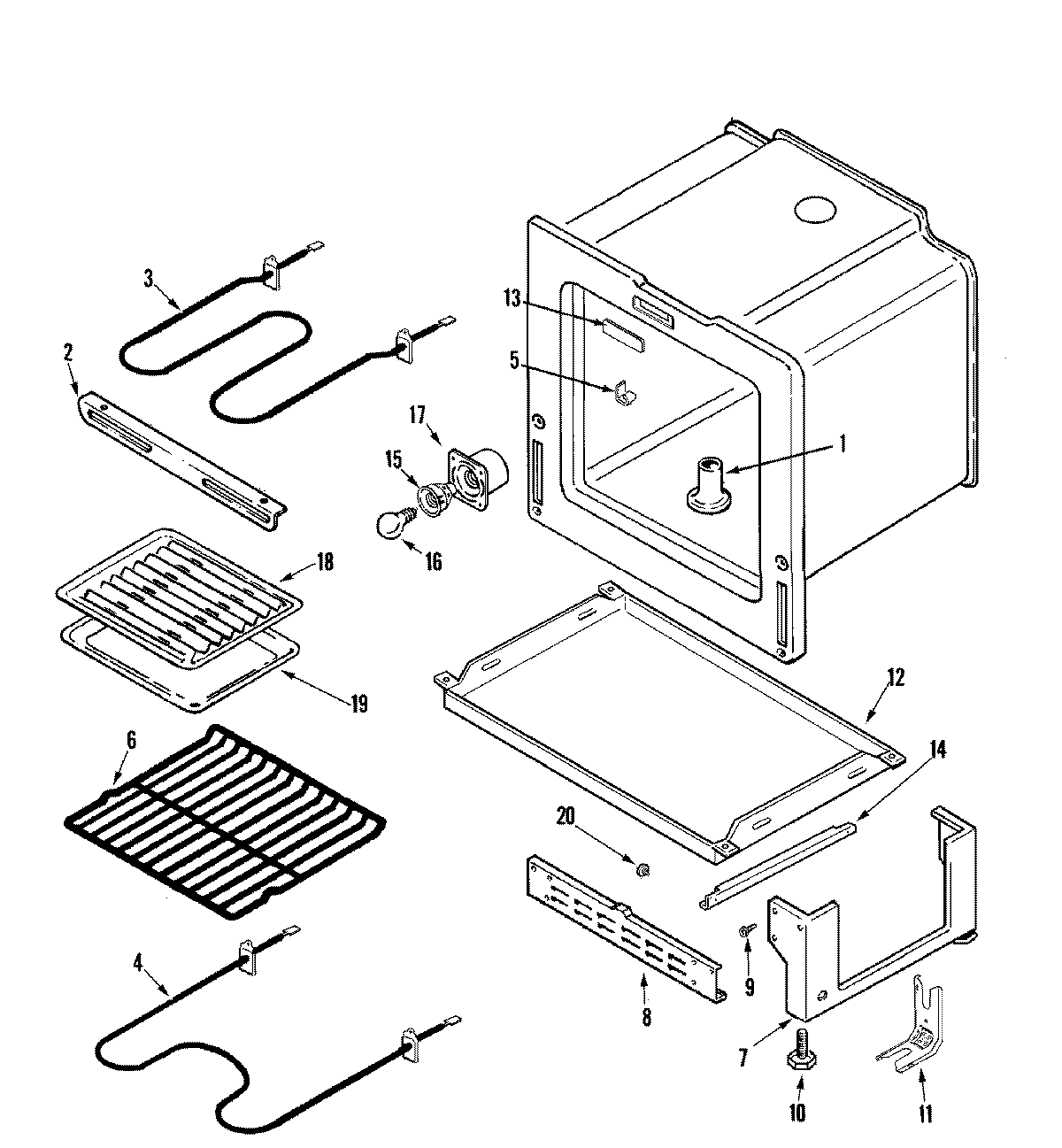

AER1360BGW 04 – OVEN/BASE

AER1360BGW 04 – OVEN/BASE

Written by

in

AER1360BGW 04 – OVEN/BASE

Products

PositionProduct
1MAY 8026P019-60
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 74003393
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12MAY 74004169
13PLUG, LOCK SLOT
14RUNNER, DRAWER
15MAY 74003387
15SCREW
16MAY 7407P027-60
17MAY 74003388
18MAY Y3413F01619
19MAY Y3401F02019
20SHAFT, STORAGE DRAWER ROLLER
20WP488130 Whirlpool Air Conditioner Nut
20MAY 74003566
