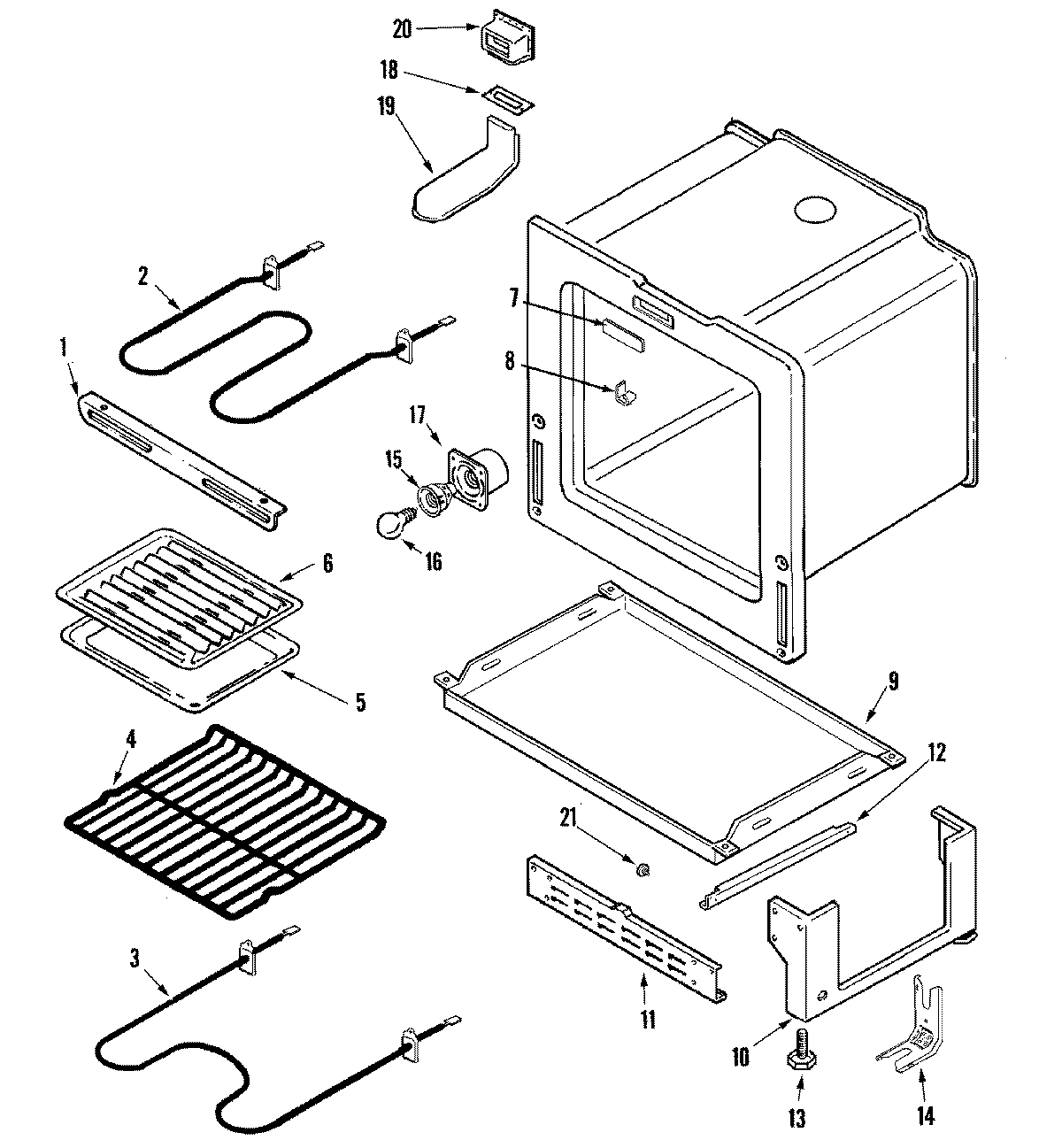

AER1450BAH 04 – OVEN/BASE

AER1450BAH 04 – OVEN/BASE

Written by

in

AER1450BAH 04 – OVEN/BASE

Products

PositionProduct
1SUPPORT, BROIL ELEMENT
2WPW10310249 Whirlpool Broil Element
3WP74010750 Whirlpool Oven Bake Element
4WPW10282492 Whirlpool Oven Rack
5MAY Y3401F02019
6MAY Y3413F01619
7PLUG, LOCK SLOT
8WP7112P004-60 Whirlpool Thermal Clip
9MAY 74003996
10MAY 74003393
11MAY 4020F001-80
12RUNNER, DRAWER
13W11665456 Whirlpool Range Level Foot
14MAY 7101P344-60
14WP3801F656-51 Whirlpool Range Anti-Tip Bracket
15RANGE ONLY 40W 120V APPL BULB
16MAY 74003387
17MAY 74003388
18MAY 74003285
19SCREW
19MAY 74003394
20MAY 74004534
21MAY 74003566
21WP488130 Whirlpool Air Conditioner Nut
