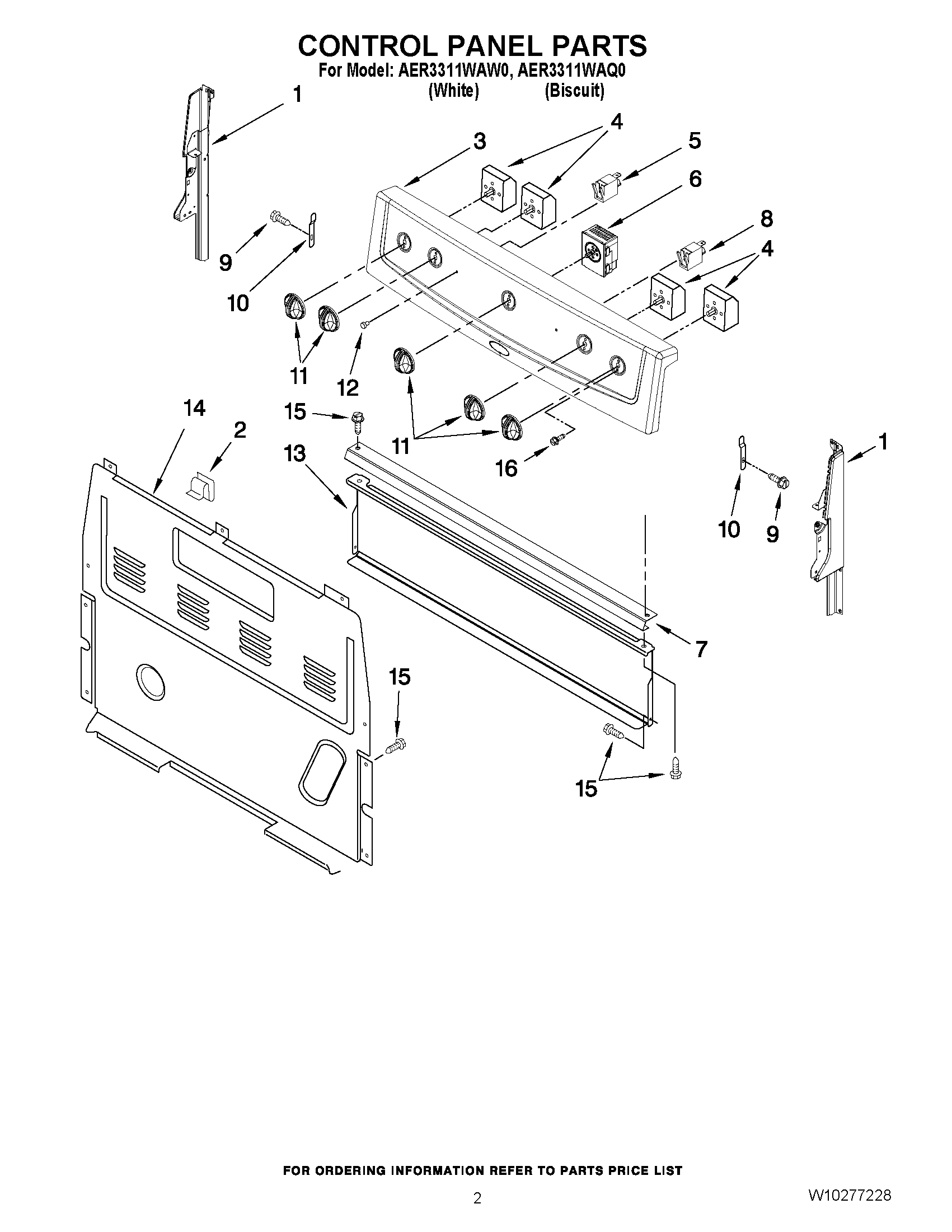

AER3311WAQ0 02 – CONTROL PANEL PARTS

AER3311WAQ0 02 – CONTROL PANEL PARTS

Written by

in

AER3311WAQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1MAY W10184436
1ENDCAP (WHITE (RIGHT))
1MAY W10184435
2MAY 8273564
3MAY W10320984
3PANEL, BACKGUARD (WHITE)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6CONTROL, ELECTRIC
7Bracket, Console
8MAY 8523266
9Screw (White)
10CLIP, SPRING
11KNOB (BISCUIT)
11KNOB, INFINITE (WHITE)
12MAY 3196068
13MAY 8053912
14COVER, UPPER REAR
15SCREW
16SCREW
