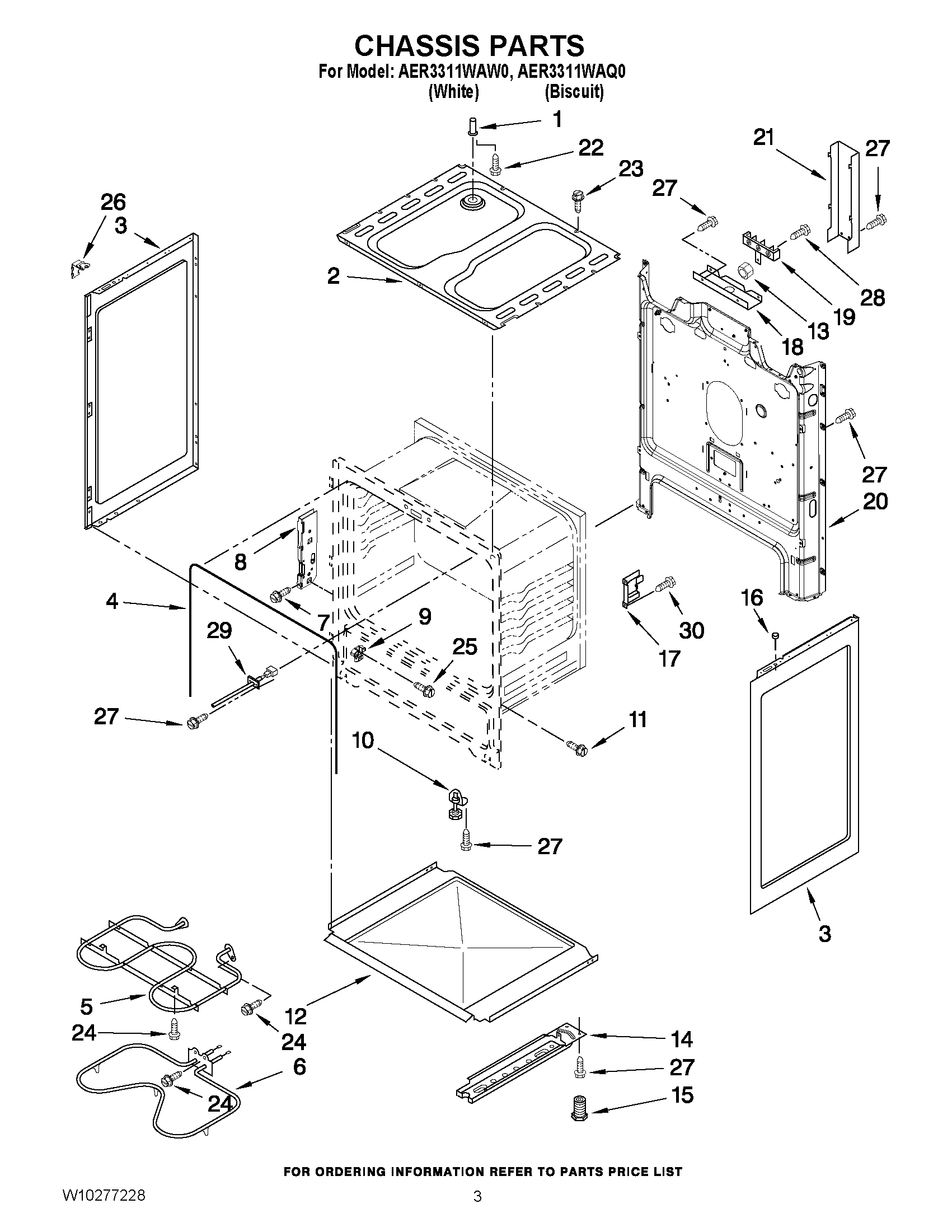

AER3311WAW0 03 – CHASSIS PARTSadmin2025-04-26T08:56:00+00:00AER3311WAW0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP |
| NI | INSULATION, BACK |
| 1 | MAY 3169143 |
| 2 | BOX, BURNER |
| 3 | MAY 8272519 |
| 3 | Panel, Side (2) (White) |
| 4 | SEAL, DOOR |
| 5 | ELEMENT, BROIL |
| 6 | Element, Bake (Hidden) |
| 7 | MAY W10031780 |
| 8 | BRKT - MOUNTING |
| 9 | Glide, Drawer |
| 10 | MAY 3196037 |
| 11 | SCREW |
| 12 | RETAINER, INSULATION |
| 13 | WP7103P027-60 Whirlpool Nut |
| 14 | RAIL, BASE |
| 15 | FOOT, LEVELING |
| 16 | BUMPER, SIDE |
| 17 | MAY 3186116 |
| 18 | BRACKET, SERVICE |
| 19 | BLOCK, TERMINAL |
| 20 | MAY 8274034 |
| 21 | MAY 9758283 |
| 22 | SCREW |
| 23 | Screw (Black) |
| 24 | SCREW |
| 25 | SCREW |
| 26 | CLIP, PANEL |
| 27 | SCREW |
| 28 | SCREW |
| 29 | SENSOR, OVEN |
| 30 | SCREW |
