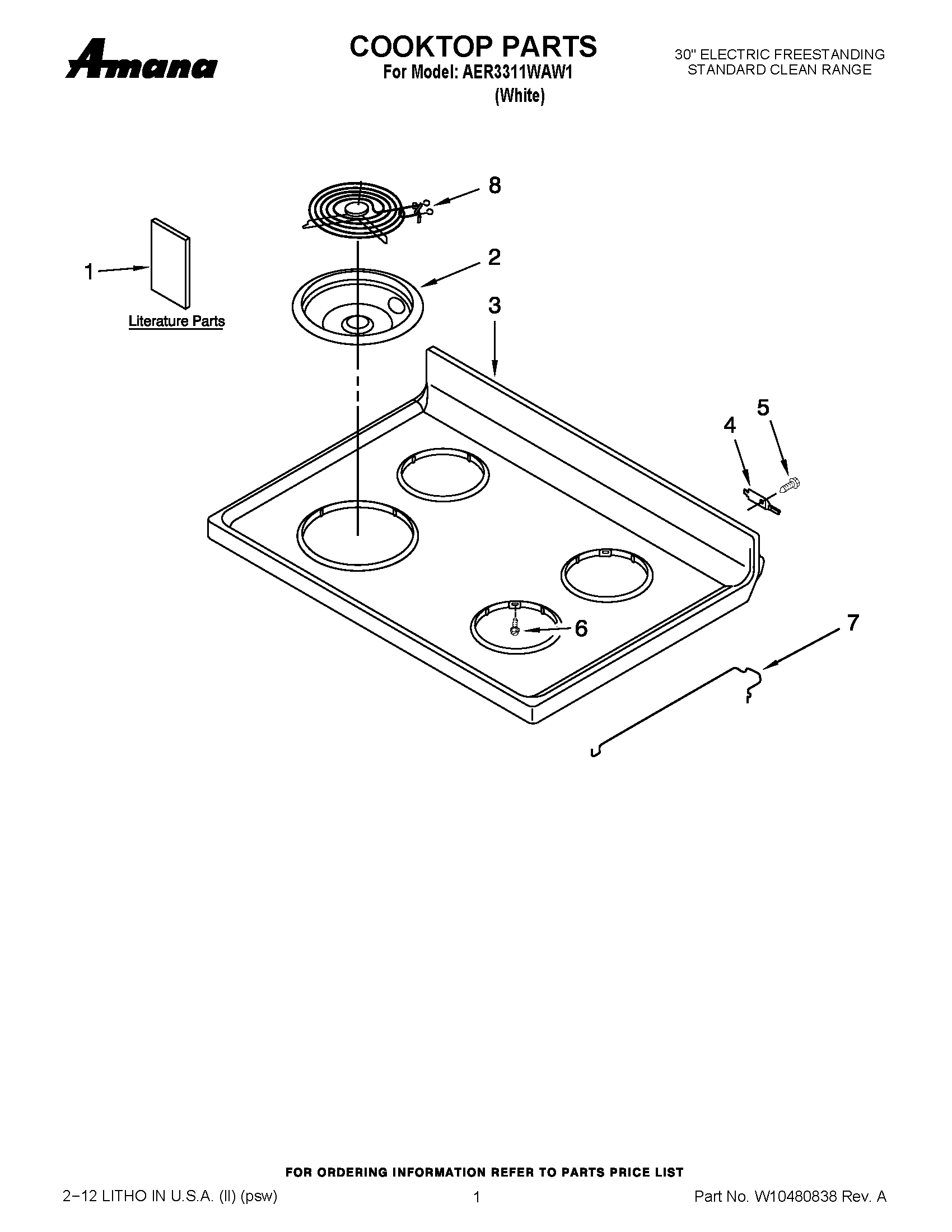

AER3311WAW1 01 – COOKTOP PARTS

AER3311WAW1 01 – COOKTOP PARTS

Written by

in

AER3311WAW1 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10419392
1TIPS, SAFE COOKING (ENGLISH)
1TECH SHEET
1MAY W10403811
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6SCREW
7ROD, SUPPORT
8ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
8ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
