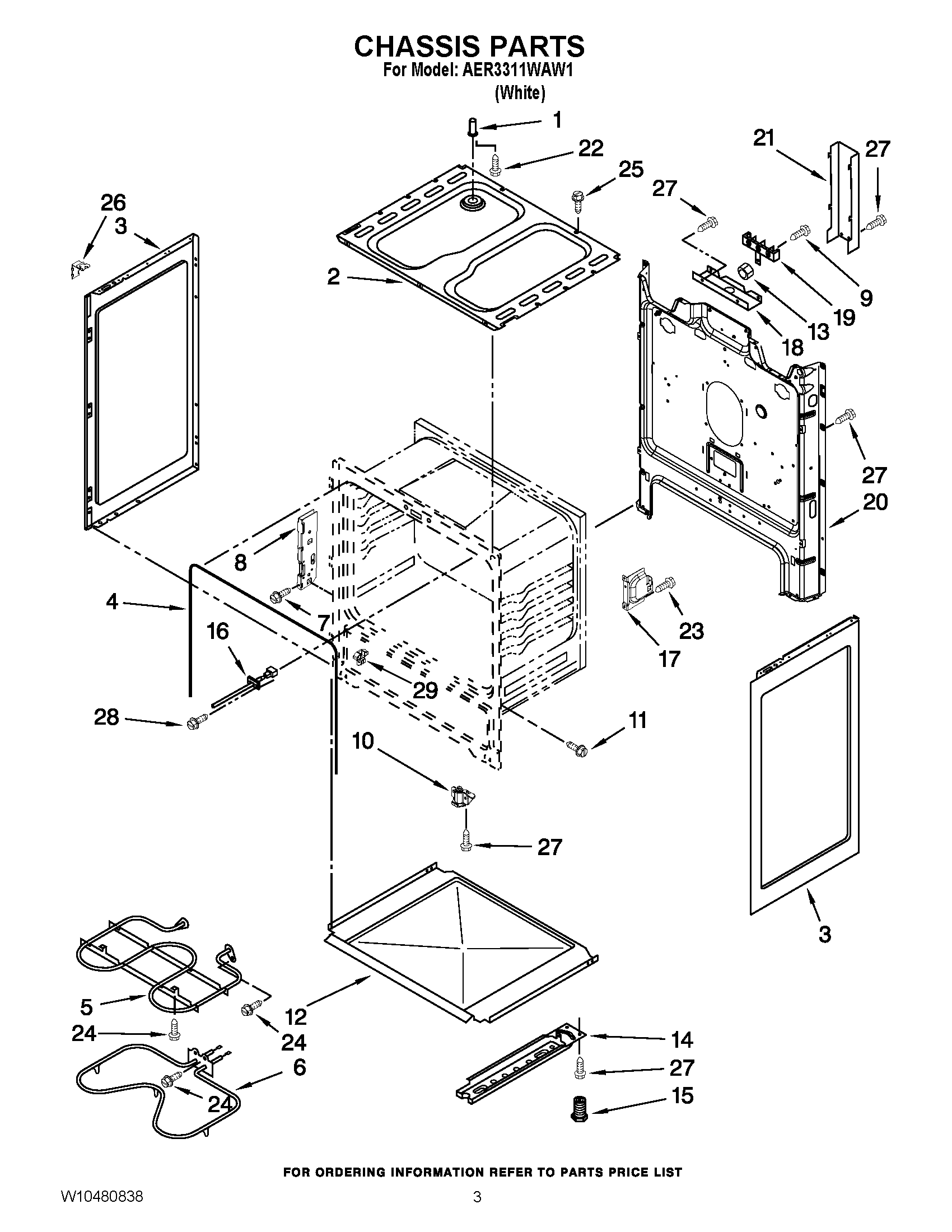

AER3311WAW1 03 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, WRAP
NIINSULATION, BACK
1MAY 3169143
2BOX, BURNER
3MAY W10322769
4SEAL, DOOR
5ELEMENT, BROIL
6ELEMENT, BAKE
7MAY W10031780
8RECEIVER, HINGE
9SCREW
10ASSEMBLY, FRONT FOOT
11SCREW
12RETAINER, INSULATION
13WP7103P027-60 Whirlpool Nut
14ASSEMBLY, BASE RAIL (LEFT)
14ASSEMBLY, BASE RAIL (RIGHT)
15FOOT, LEVELING
16SENSOR, OVEN
17BRACKET, OVEN SUPPORT
18BRACKET, SERVICE
19BLOCK, TERMINAL
20BACK, MAIN
21COVER, TERMINAL BLOCK
22SCREW
23SCREW
24SCREW
25SCREW
26CLIP, PANEL
27SCREW
28SCREW
29GLIDE, DRAWER
