AER3311WAW1 05 – DOOR PARTS – Aparts

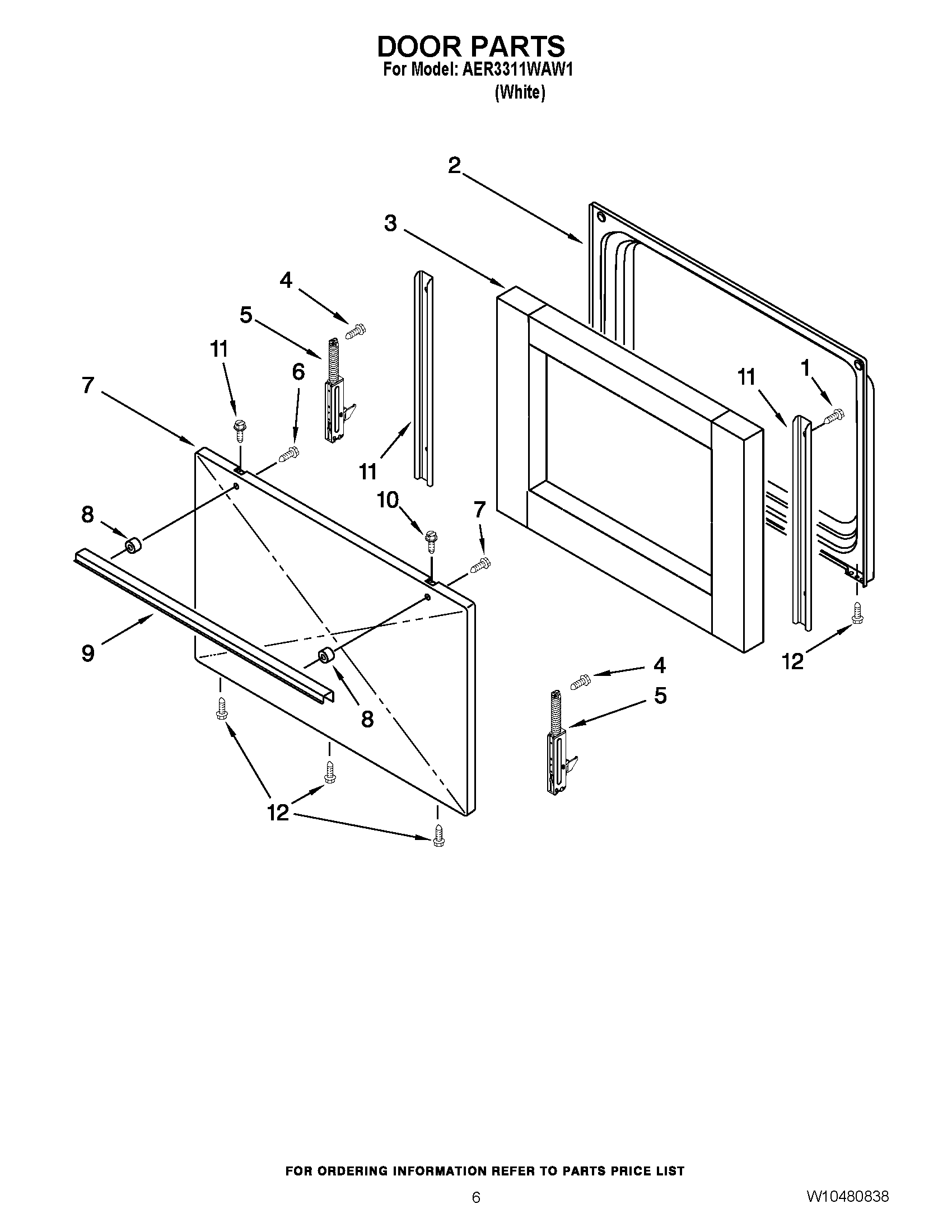

AER3311WAW1 05 – DOOR PARTS

Products

Position	Product
1	SCREW
2	MAY 9761342
3	INSULATION, DOOR STRIP
4	MAY W10031780
5	HINGE, DOOR (ACTIVE)
5	HINGE, DOOR (PASSIVE)
6	SCREW
7	MAY 3195560
8	MAY 3196143
9	MAY 3195263
10	SCREW, TOP (WHITE)
11	BRACKET, DOOR
12	SCREW
