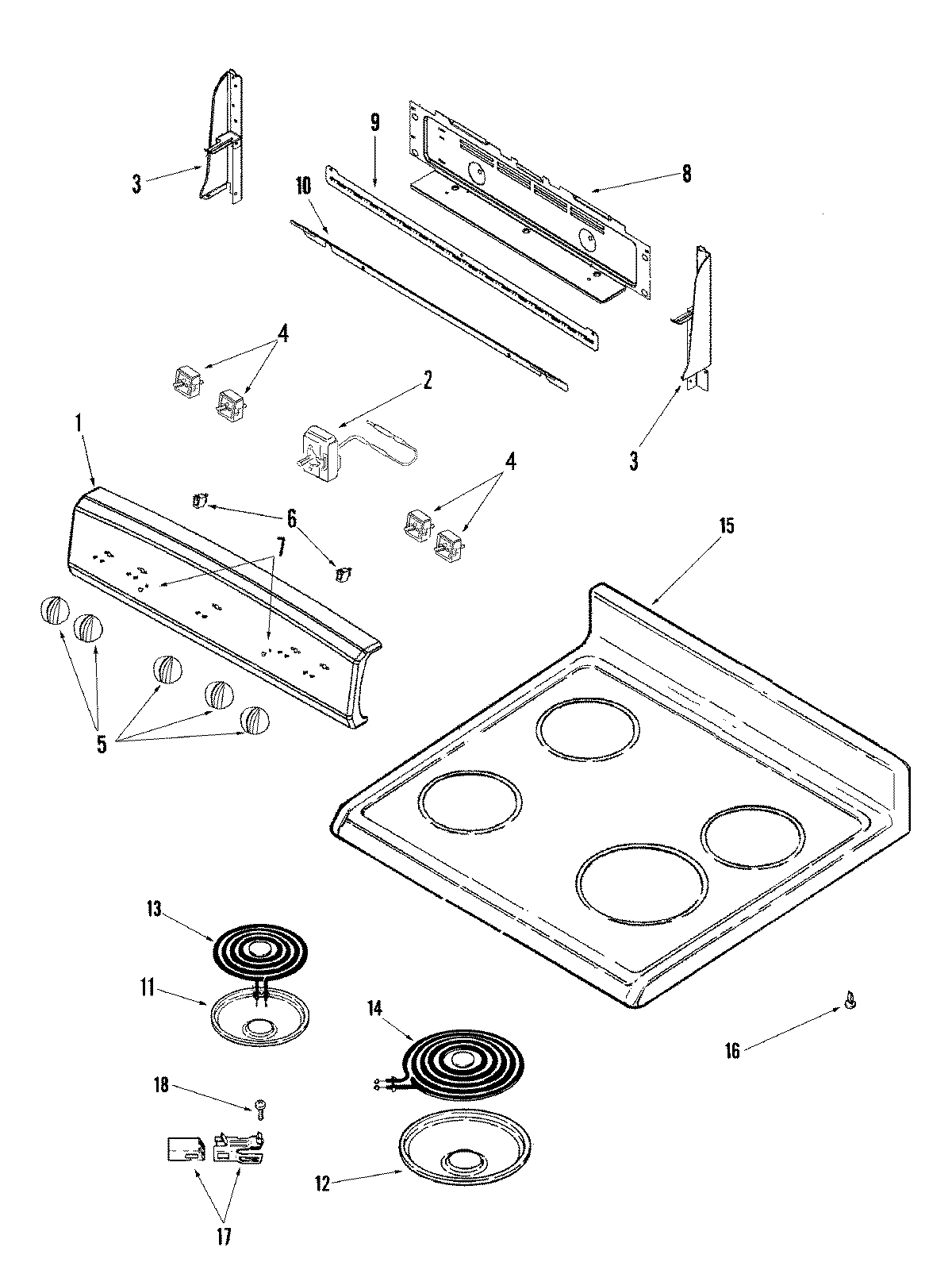

AER4111AAW 02 – CONTROL PANEL/TOP ASSEMBLY

AER4111AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER4111AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011438
2MAY 74010330
3MAY 74010713
3MAY 74010212
3WP74003976 Whirlpool Screw
3WP98008544 Whirlpool Screw Assembly
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74010983
9MAY 74009701
10MAY 71001394
10MAY 74009978
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
12DRIP BOWL 8" W/HOLE CHROME
13WPW10345407 Whirlpool Surface Element
14WP9761346 Whirlpool Stove Surface Burner Element
15MAY 74003428
16W11189172 Whirlpool Glide Drawer
17WP74007474 Whirlpool Dishwasher Element Receptacle
18WP74004005 Whirlpool Screw
