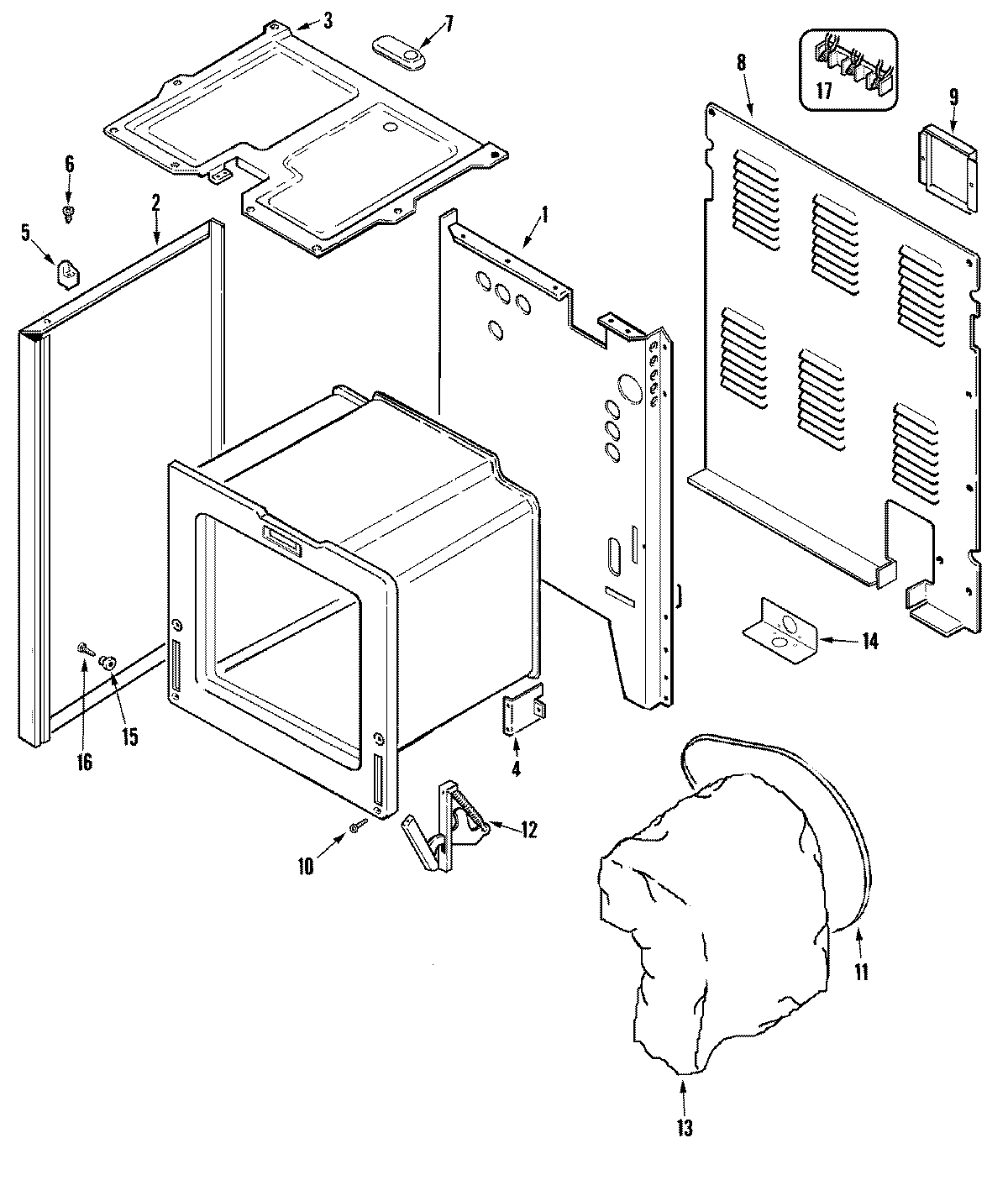

AER4311AAW 01 – BODY

AER4311AAW 01 – BODY

Written by

in

AER4311AAW 01 – BODY

Products

PositionProduct
1MAY 74009677
1MAY 74002334
2MAY 74003236
3MAY 74007026
3WP74003976 Whirlpool Screw
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
7MAY 71001394
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14SCREW
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74007476
17WPW10245259 Whirlpool Terminal Block
17MAY 7111P020-60
17SCREW (10ABX1.0-ZN)
17WP7103P027-60 Whirlpool Nut
