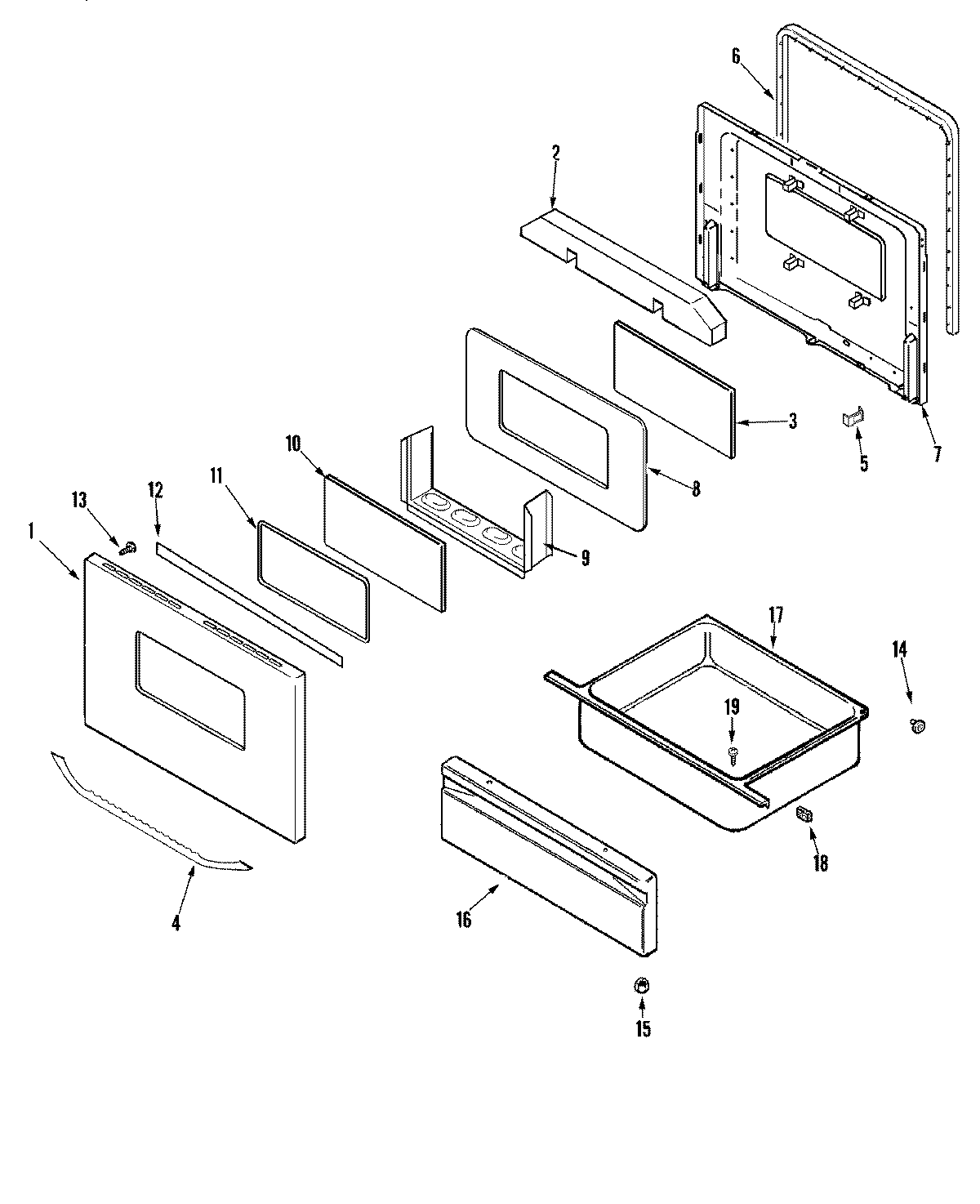

AER4311AAW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74006288
1	SCREW
2	MAY 74002458
3	MAY 74002002
4	MAY 74006291
5	CLIP, DOOR
6	WP7212P043-60 Whirlpool Oven Door Seal Gasket
7	MAY 74005097
8	MAY 7101P209-60
8	MAY 74002461
9	MAY 74002462
10	MAY 74002464
11	MAY 7201P017-60
12	TAPE, FOIL (3“ WIDE)
13	WP74006515 Whirlpool Washer Screw
14	SHAFT, STORAGE DRAWER ROLLER
14	WP74004078 Whirlpool Door Roller
14	WP488130 Whirlpool Air Conditioner Nut
15	WPW10131078 Whirlpool Nut Assembly
16	MAY 74003399
17	MAY 71003042
18	WP854334 Whirlpool Air Conditioner Sealing Strip
