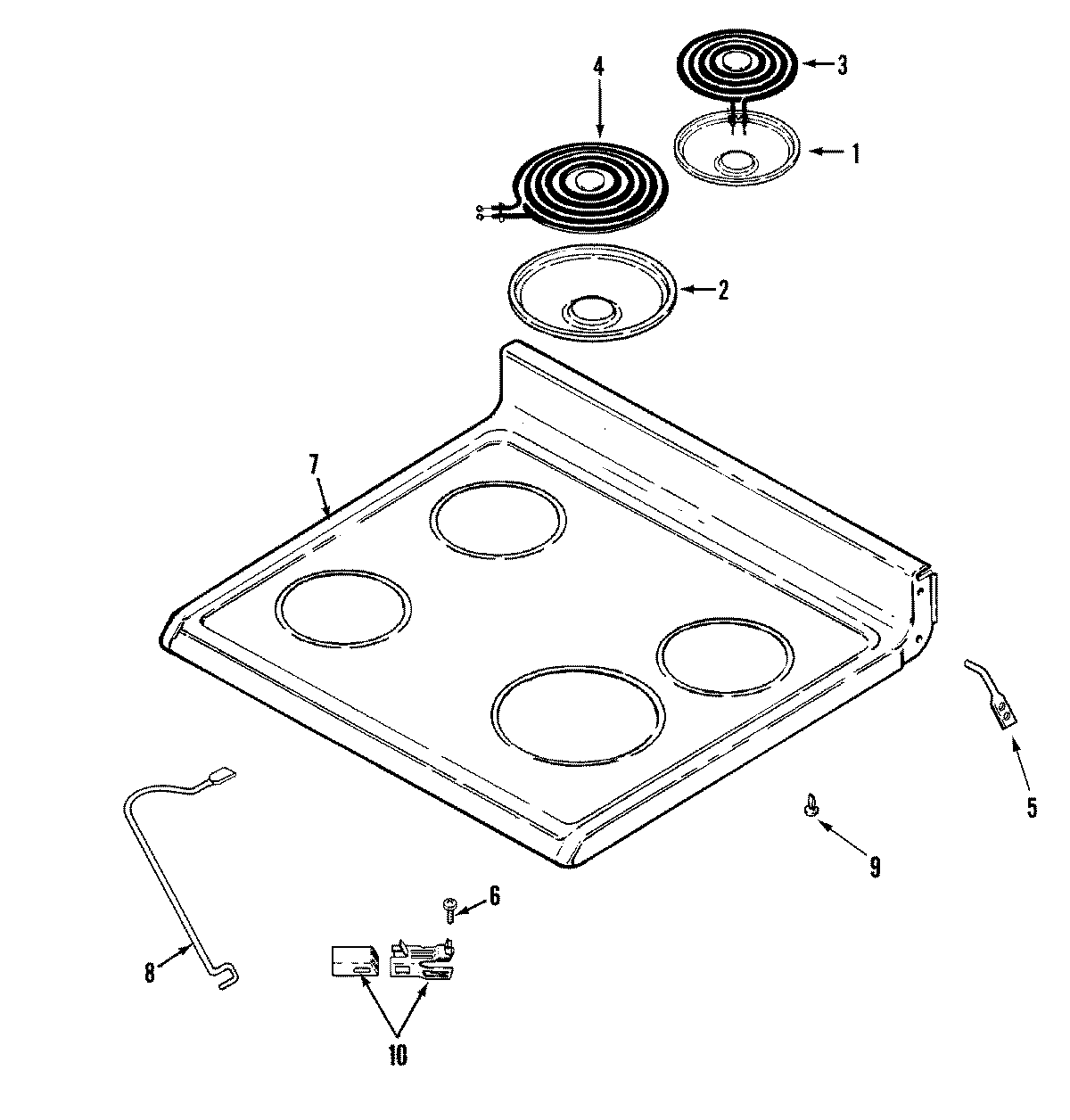

AER4311AAW 06 – TOP ASSEMBLY

AER4311AAW 06 – TOP ASSEMBLY

Written by

in

AER4311AAW 06 – TOP ASSEMBLY

Products

PositionProduct
1WPW10196406 Whirlpool 6" Chrome Drip Bowl
1WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2DRIP BOWL 8" W/HOLE CHROME
3WPW10259868 Whirlpool Surface Heating Element
4WPW10345410 Whirlpool Surface Element
5MAY 74003371
574003975 Whirlpool Screw P1 (8ABX3/8-BLK)
6MAY 7118P013-60
7MAY 74009683
8MAY 74004084
9W11189172 Whirlpool Glide Drawer
10WP74007474 Whirlpool Dishwasher Element Receptacle
