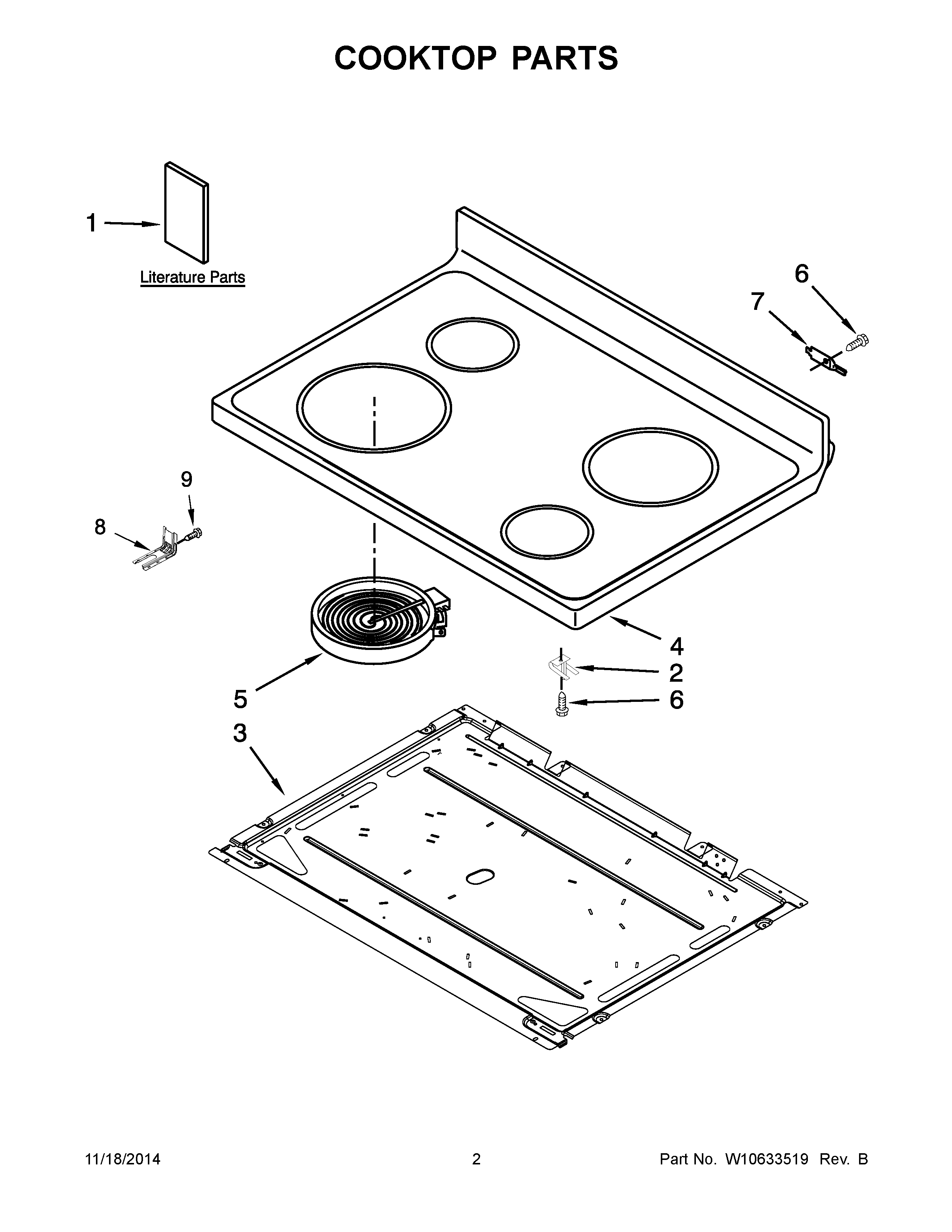

AER5330BAB0 02 – COOKTOP PARTS

Products

Position	Product
NI	TIE, CABLE
NI	WIRING HARNESS PARTS, HARNESS, DOOR SWITCH SENSOR
NI	WIRING HARNESS PARTS, CLIP, WIRE GROUND
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10251766
NI	MAY 8523279
1	MAY W10403811
1A	MAY W10572534
1C	TECH SHEET (ENGLISH)
1B	TIPS, SAFE COOKING (ENGLISH)
2	SPRING, ELEMENT
3	PAN, RADIANT ELEMENT
4	COOKTOP (WHITE)
4A	MAY W10202162
5A	ELEMENT (1500W) (RIGHT FRONT AND LEFT REAR)
5	ELEMENT (2000W) (LEFT FRONT AND RIGHT REAR)
6	SCREW
7	HINGE, COOKTOP
8	BRACKET, ANTI-TIP
9	SCREW, ANTI-TIP KIT
