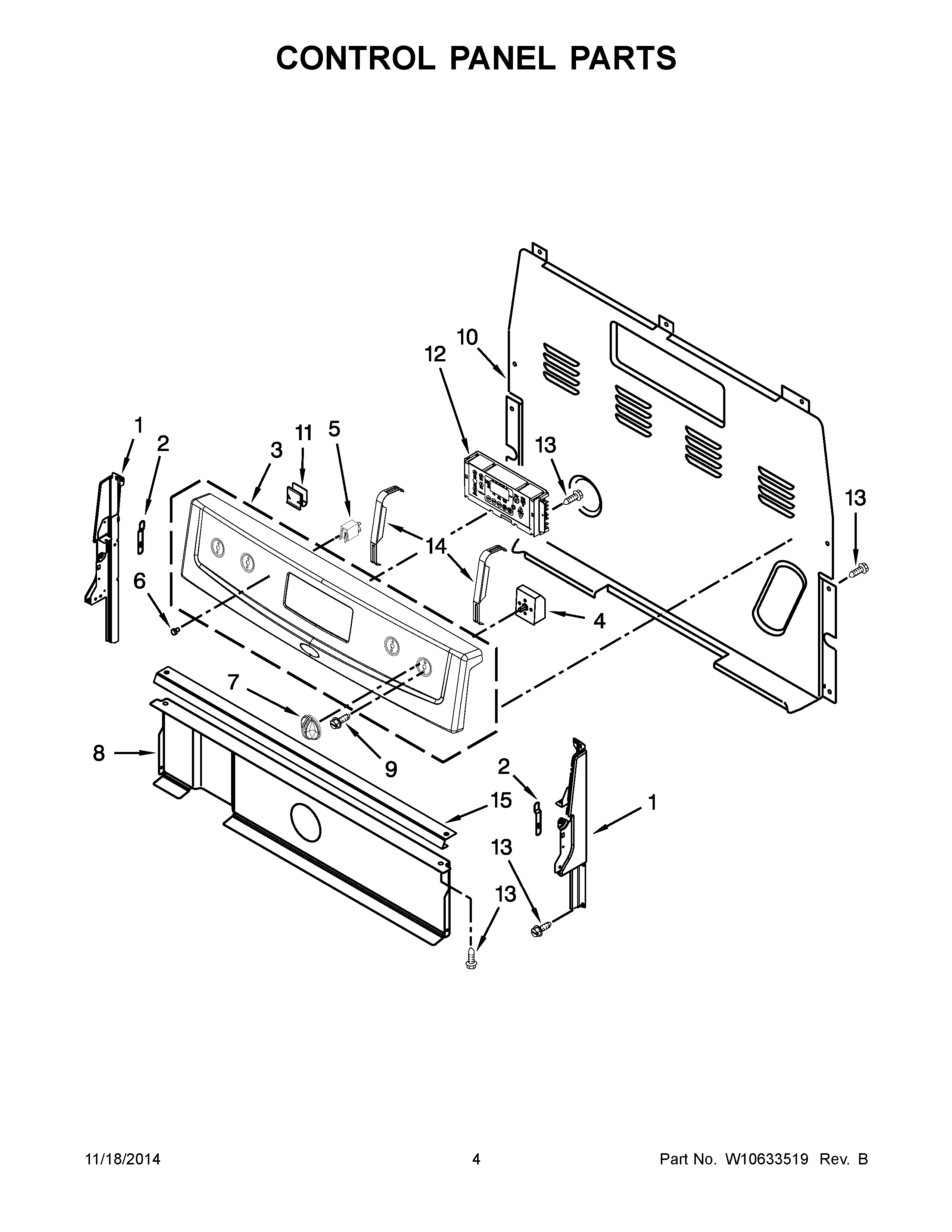

AER5330BAB0 03 – CONTROL PANEL PARTS

AER5330BAB0 03 – CONTROL PANEL PARTS

Written by

in

AER5330BAB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1CENDCAP (BLACK (RIGHT))
1BENDCAP (WHITE (RIGHT))
2CLIP, SPRING
3AMAY W10572567
3MAY W10572565
3BMAY W10572569
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4ASWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
7AKNOB, INFINITE (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11MAY 8273564
12MAY W10626963
12AMAY W10626964
13SCREW
14BRACKET, CONTROL
15BRACKET, CONSOLE MOUNTING
