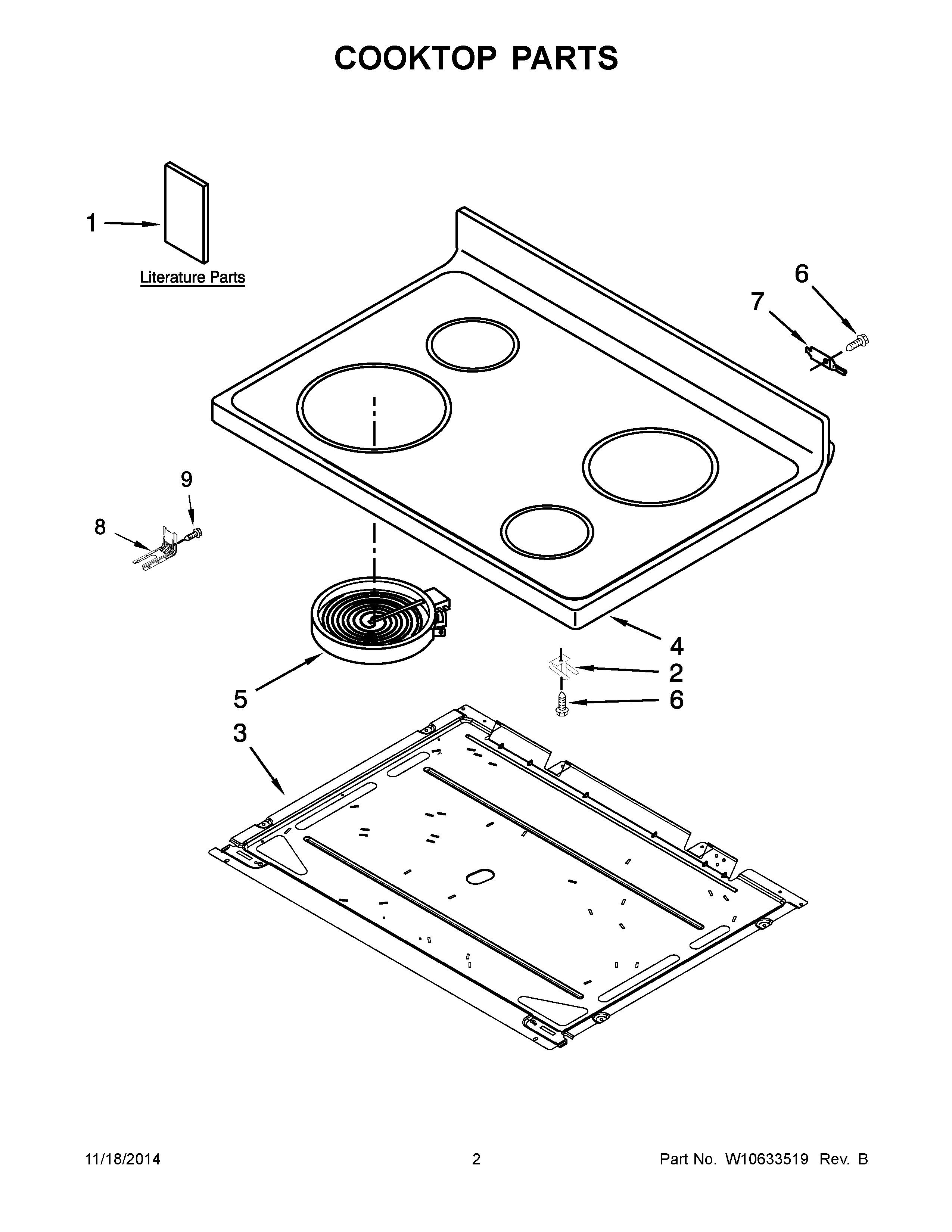

AER5330BAS0 02 – COOKTOP PARTSadmin2025-04-26T08:55:55+00:00AER5330BAS0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | TIE, CABLE |
| NI | WIRING HARNESS PARTS, HARNESS, DOOR SWITCH SENSOR |
| NI | WIRING HARNESS PARTS, CLIP, WIRE GROUND |
| NI | HARNESS, WIRE (COOKTOP RIGHT) |
| NI | HARNESS, WIRE (COOKTOP LEFT) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10251766 |
| NI | MAY 8523279 |
| 1 | MAY W10403811 |
| 1A | MAY W10572534 |
| 1C | TECH SHEET (ENGLISH) |
| 1B | TIPS, SAFE COOKING (ENGLISH) |
| 2 | SPRING, ELEMENT |
| 3 | PAN, RADIANT ELEMENT |
| 4 | COOKTOP (WHITE) |
| 4A | MAY W10202162 |
| 5A | ELEMENT (1500W) (RIGHT FRONT AND LEFT REAR) |
| 5 | ELEMENT (2000W) (LEFT FRONT AND RIGHT REAR) |
| 6 | SCREW |
| 7 | HINGE, COOKTOP |
| 8 | BRACKET, ANTI-TIP |
| 9 | SCREW, ANTI-TIP KIT |
