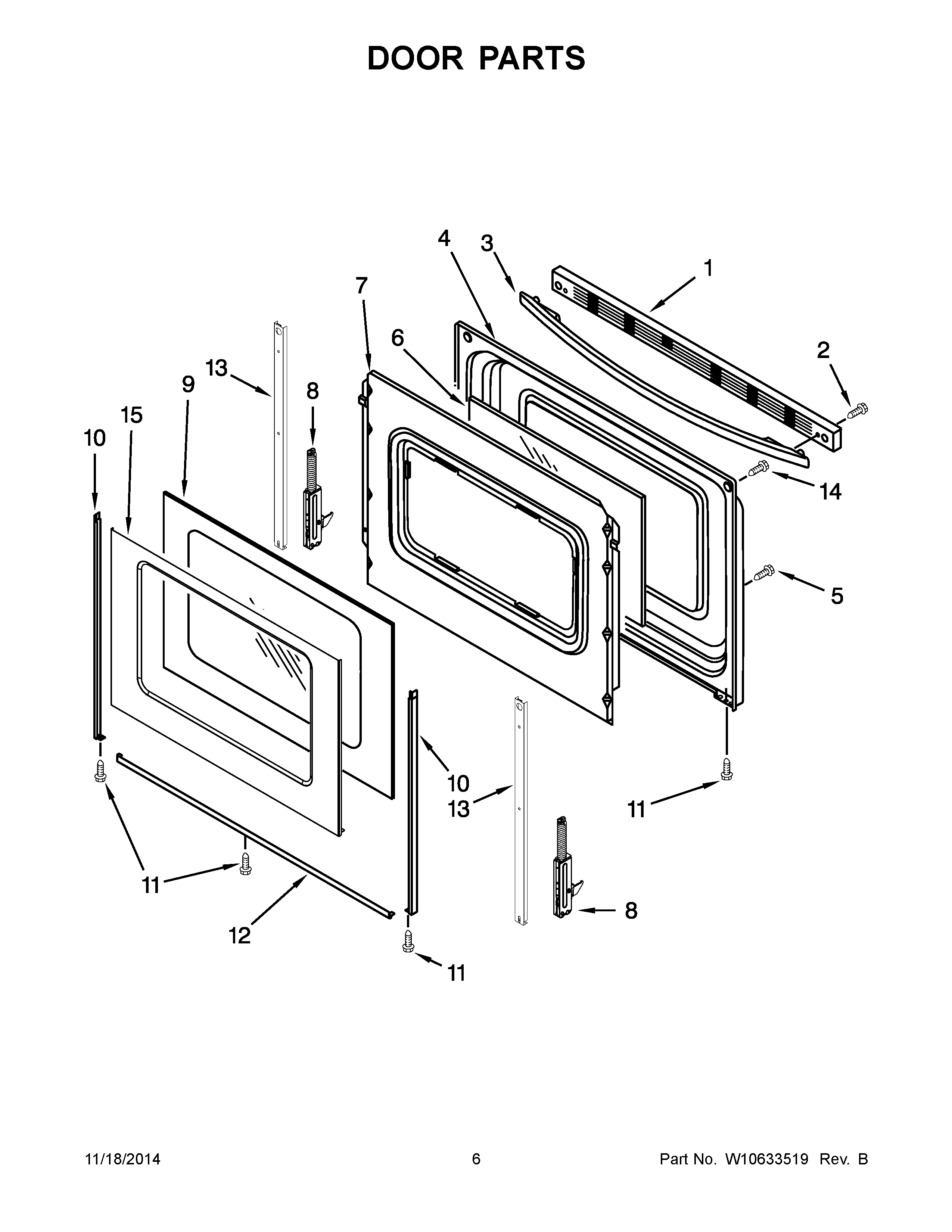

AER5330BAS0 04 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3B	HANDLE, DOOR (STAINLESS)
3	HANDLE, DOOR (WHITE)
3A	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
8A	HINGE, DOOR (PASSIVE)
9	Glass, Outer (White)
9A	Glass, Outer (Black)
10C	TRIM, SIDE (BLACK (RIGHT))
10A	TRIM, SIDE (BLACK (LEFT))
10B	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (WHITE (LEFT))
11	SCREW
12A	TRIM, LOWER (BLACK)
12	TRIM, LOWER (WHITE)
13	STRAP, DOOR
14	SCREW
15	GLASS, OUTER (STAINLESS)
