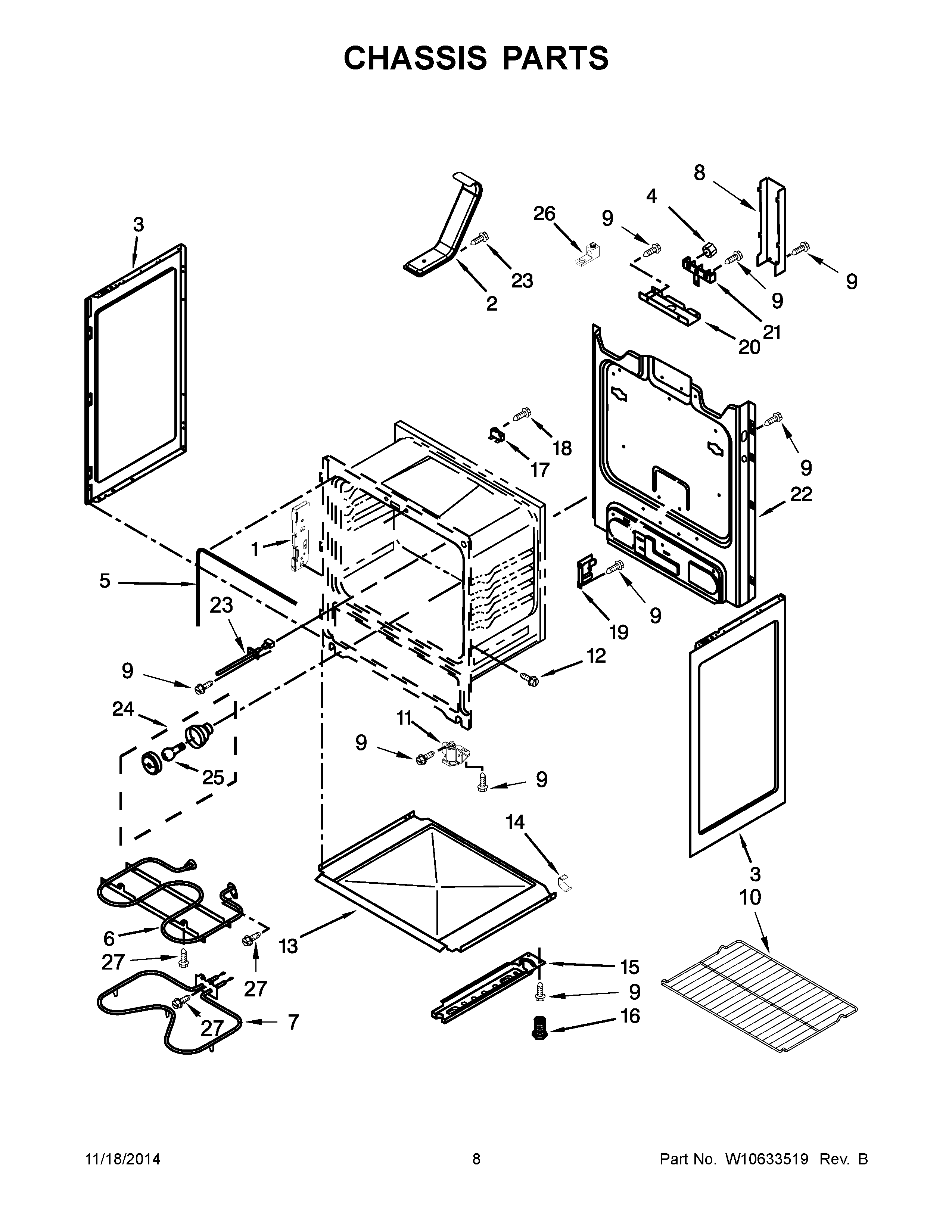

AER5330BAS0 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	INSULATION, FLUE
1	RECEIVER, HINGE
2	TUBE, VENT
3A	MAY W10322770
3	MAY W10322769
4	NUT
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	COVER, TERMINAL BLOCK
9	SCREW
10	RACK, OVEN
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SENSOR, OVEN
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	KIT, BARE WIRE ADAPTER BLOCK
27	SCREW
