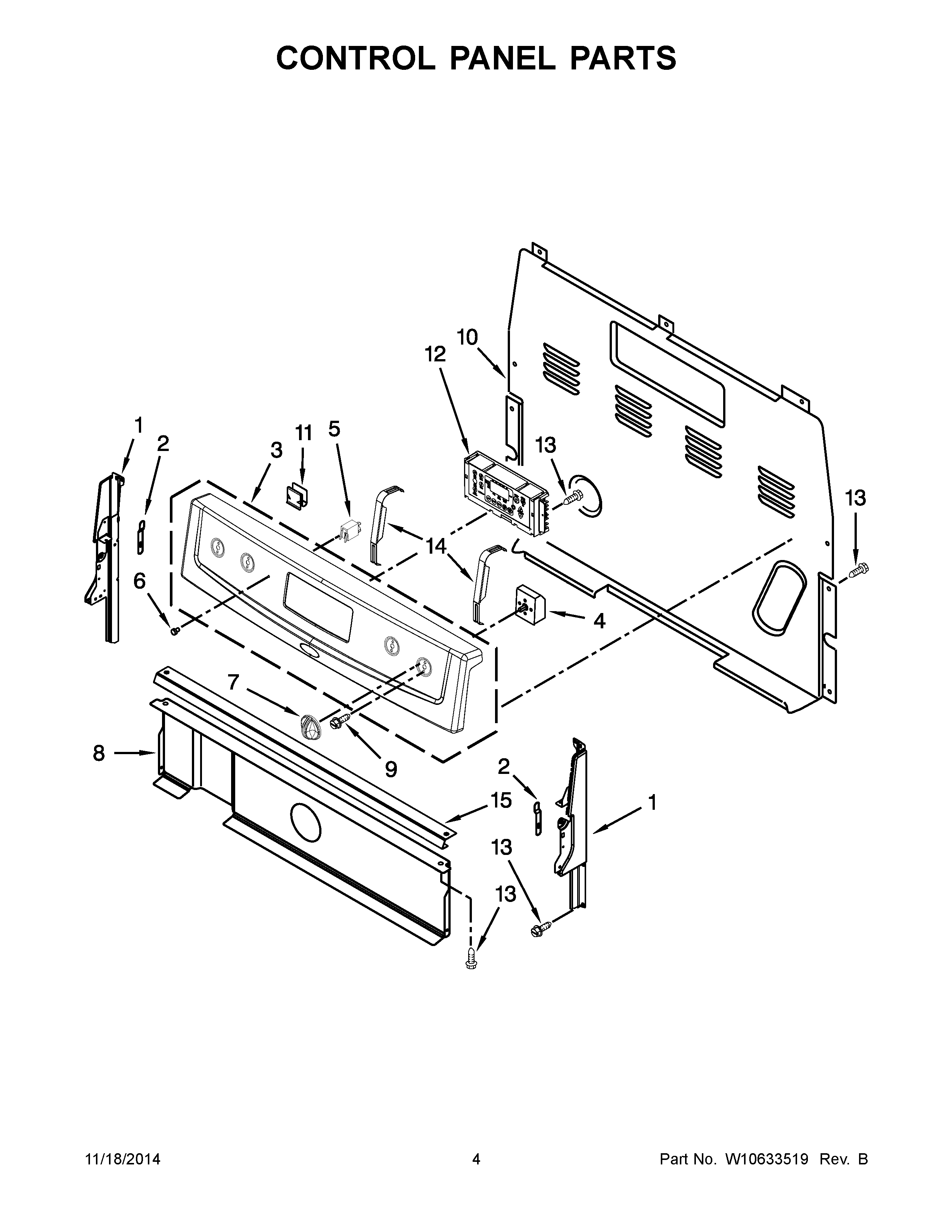

AER5330BAW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1C	ENDCAP (BLACK (RIGHT))
1B	ENDCAP (WHITE (RIGHT))
2	CLIP, SPRING
3A	MAY W10572567
3	MAY W10572565
3B	MAY W10572569
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4A	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	MAY 8523265
6	MAY 3196068
7	KNOB, INFINITE (WHITE)
7A	KNOB, INFINITE (BLACK)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	MAY 8273564
12	MAY W10626963
12A	MAY W10626964
13	SCREW
14	BRACKET, CONTROL
15	BRACKET, CONSOLE MOUNTING
