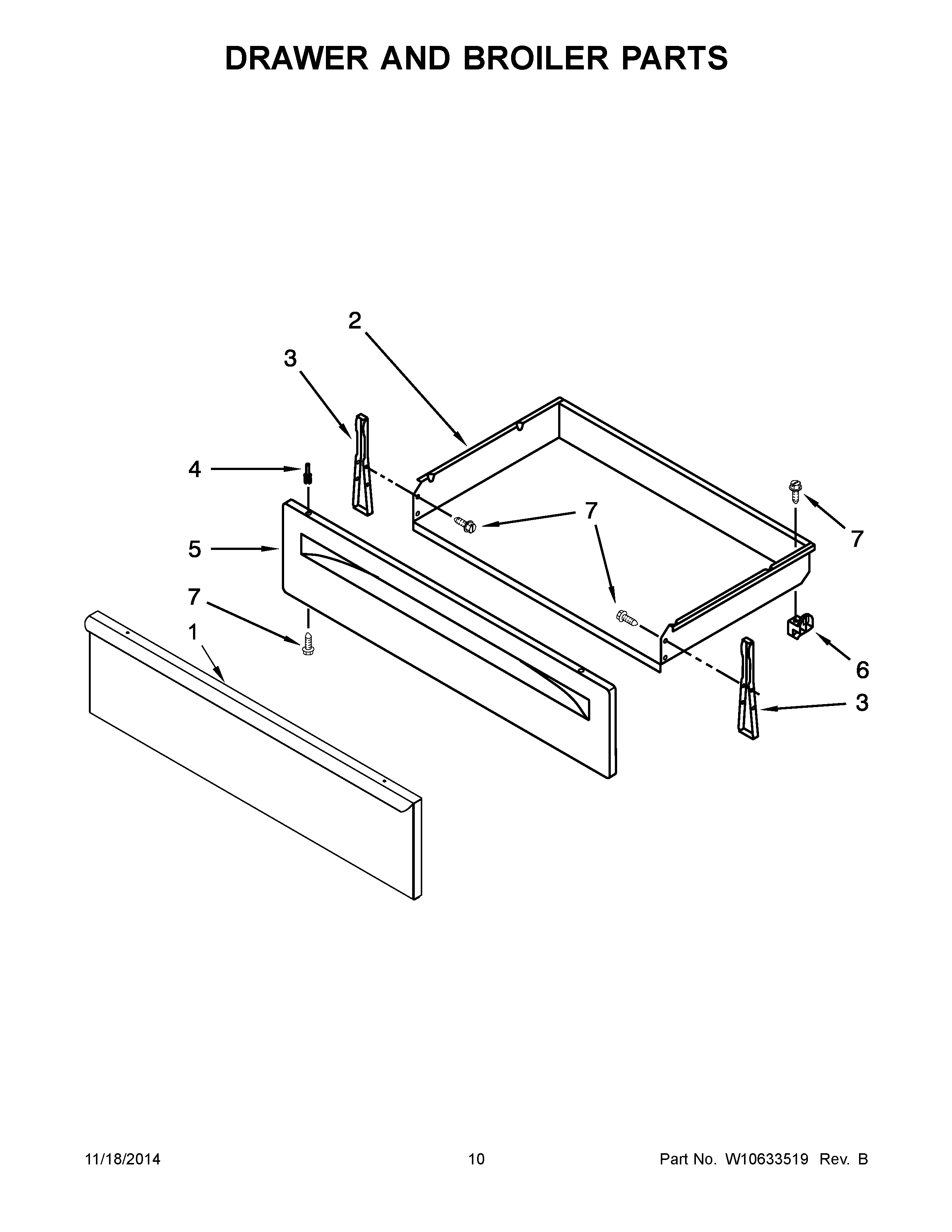

AER5330BAW0 06 – DRAWER AND BROILER PARTS

Written by

Products

Position	Product
1	PANEL, DRAWER FRONT (STAINLESS)
2	DRAWER, STORAGE
3	BRACKET, MOUNTING DRAWER
3A	BRACKET, MOUNTING DRAWER
4	RIVET, PUSH (WHITE)
4A	RIVET, PUSH (BLACK)
5A	PANEL, DRAWER FRONT (BLACK)
5	PANEL, DRAWER FRONT (WHITE)
6A	GLIDE, DRAWER FRONT
6	GLIDE, DRAWER REAR
7	SCREW
