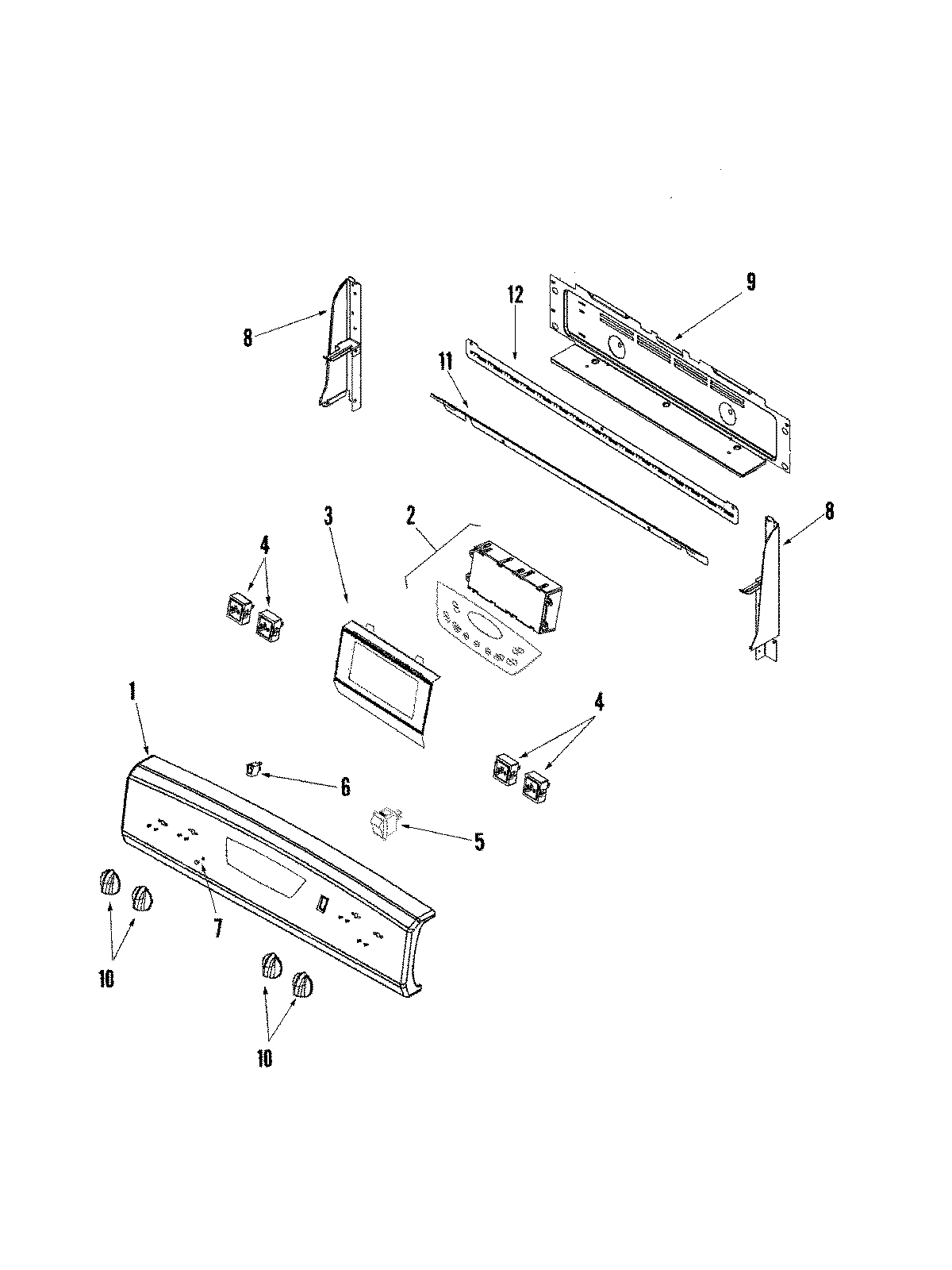

AER5511AAB 02 – CONTROL PANEL

Written by

Products

Position	Product
1	MAY 74010304
2	5701M760-60 Whirlpool Electronic Control Board
3	BRACKET, CLOCK
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4	WP7403P239-60 Whirlpool Oven Switch
4	SCREW
5	SWITCH, ROCKER (BLK)
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
8	WP74003976 Whirlpool Screw
9	MAY 74009335
9	MAY 74009943
10	MAY 74008731
10	MAY 74008732
11	MAY 74009701
11	SCREW (8BX3/8-NI)
12	MAY 74009976
12	WP90767 Whirlpool Screw
