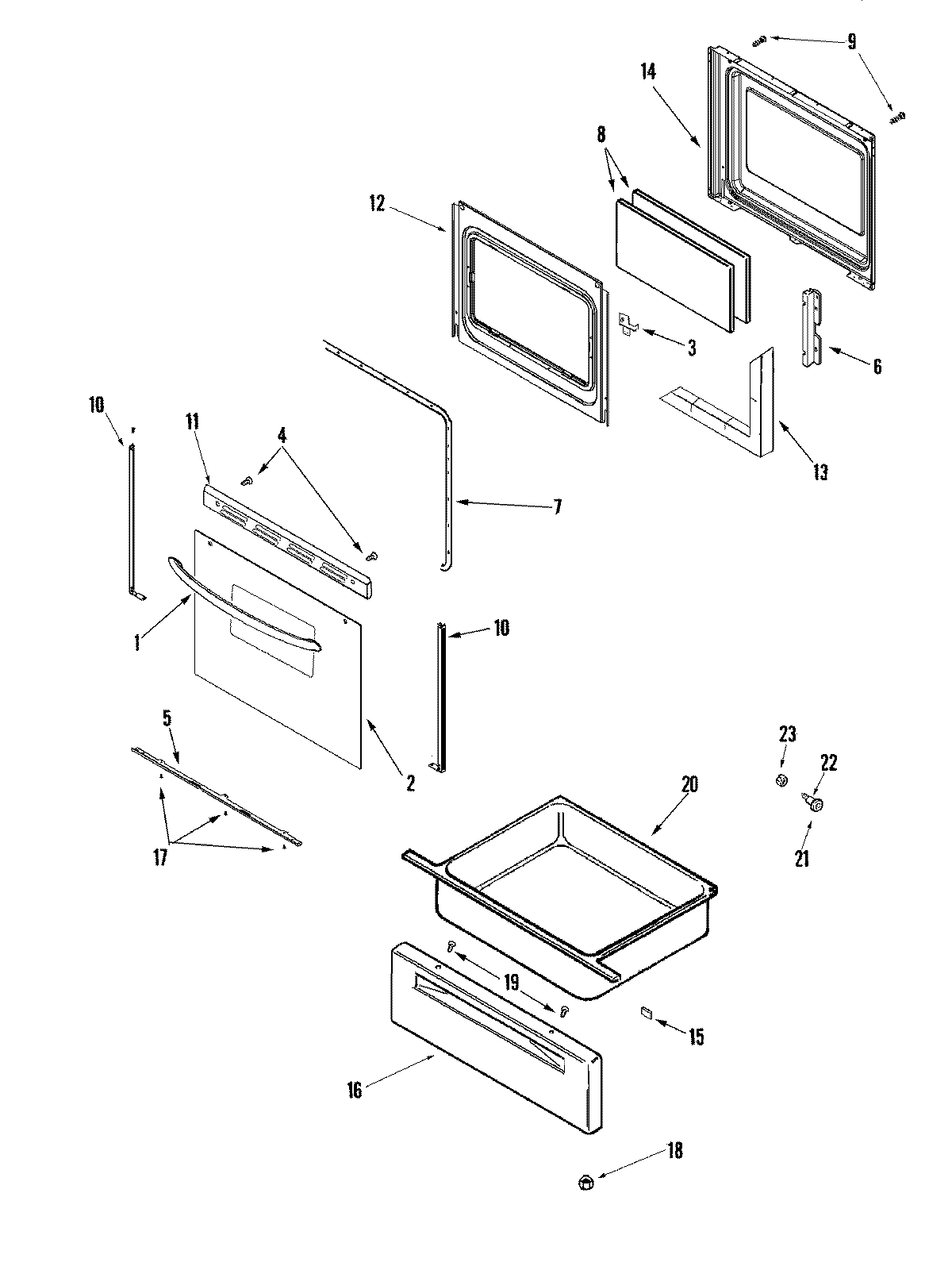

AER5511AAQ 03 – DOOR/DRAWER

AER5511AAQ 03 – DOOR/DRAWER

Written by

in

AER5511AAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008323
2MAY 12002394
2MAY 74003146
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4MAY 74001521
4MAY 74006295
5SUPPORT, GLASS (BSQ)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
10TRIM, DOOR (BSQ-RT)
10WP74004224 Whirlpool Tape
10TRIM, DOOR (BSQ-LT)
10WP74009541 Whirlpool Screw Assembly
11MAY 74009691
11MAY 7101P356-60
12BAFFLE, OVEN DOOR
13MAY 74001842
14LINING, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
15WP74005546 Whirlpool RU Spacer
16MAY 74005055
17SCREW
18WPW10131078 Whirlpool Nut Assembly
20DRAWER, STORAGE
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
