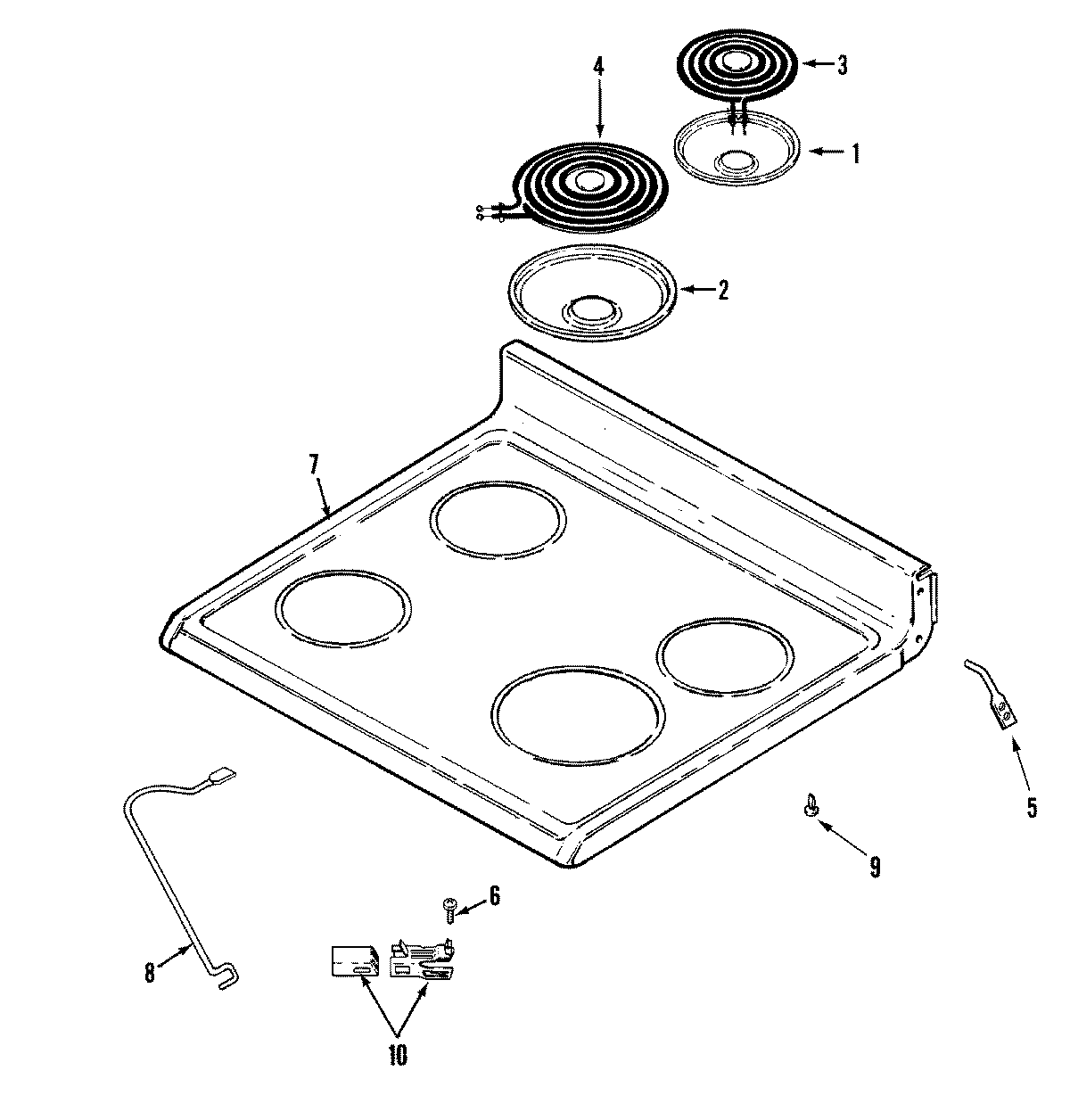

AER5511AAQ 06 – TOP ASSEMBLY

AER5511AAQ 06 – TOP ASSEMBLY

Written by

in

AER5511AAQ 06 – TOP ASSEMBLY

Products

PositionProduct
1WPW10196406 Whirlpool 6" Chrome Drip Bowl
1WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2DRIP BOWL 8" W/HOLE CHROME
3WPW10259868 Whirlpool Surface Heating Element
4WPW10345410 Whirlpool Surface Element
5SCREW
5MAY 74003371
6WP74004005 Whirlpool Screw
7MAY 74005063
8MAY 74004084
9W11189172 Whirlpool Glide Drawer
1012001676 Whirlpool Range Surface Burner Receptacle Kit
