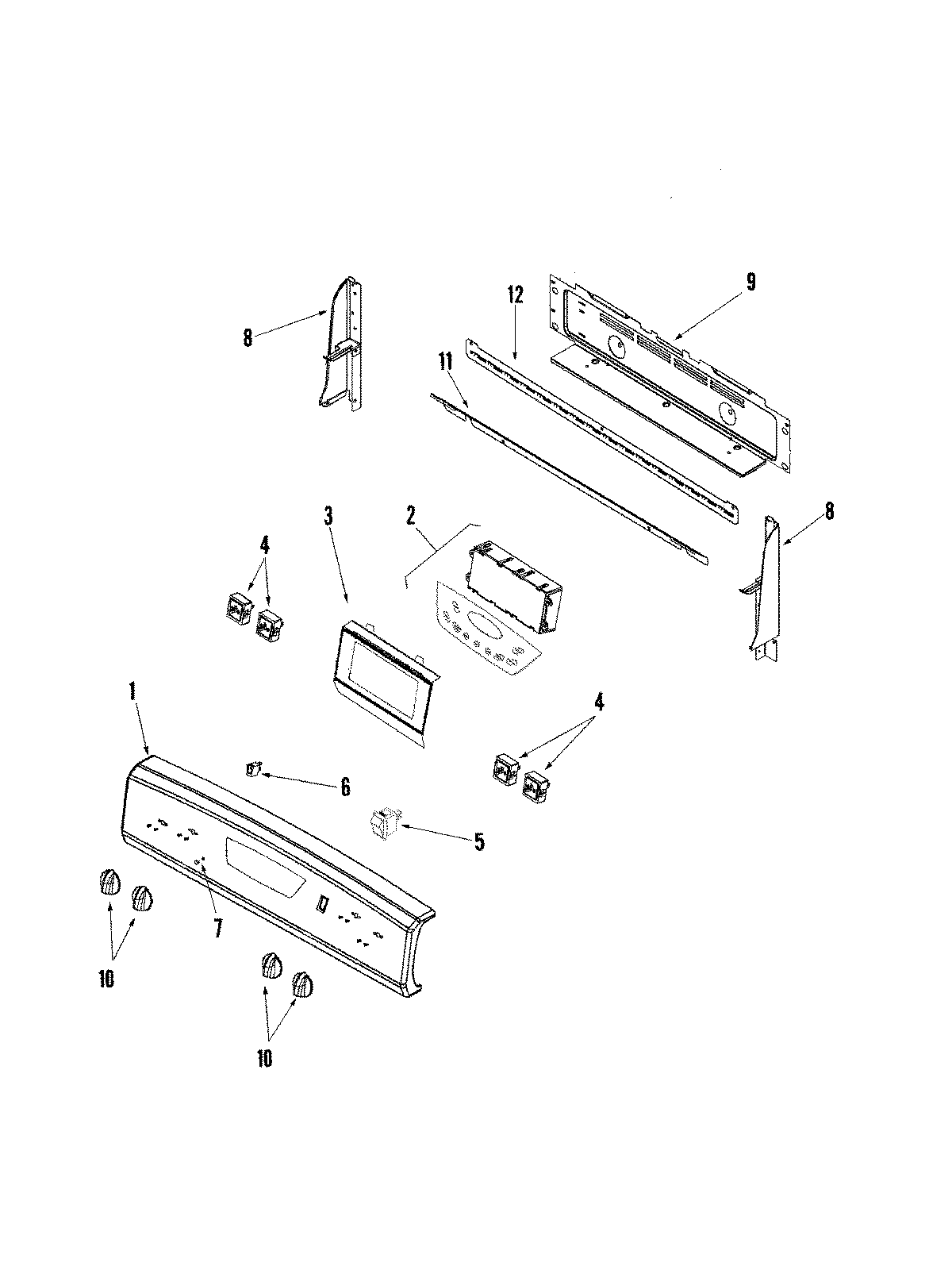

AER5511AAW 02 – CONTROL PANEL

AER5511AAW 02 – CONTROL PANEL

Written by

in

AER5511AAW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74008711
25701M760-60 Whirlpool Electronic Control Board
3BRACKET, CLOCK
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
574008717 Whirlpool White Rocker Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74010211
8MAY 74010212
8WP74003976 Whirlpool Screw
9MAY 74009943
9MAY 74009335
10MAY 74008731
10MAY 74008732
11MAY 74009701
11SCREW (8BX3/8-NI)
12MAY 74009976
12WP90767 Whirlpool Screw
