AER5511AAW 03 – DOOR/DRAWER

AER5511AAW 03 – DOOR/DRAWER

Written by

in

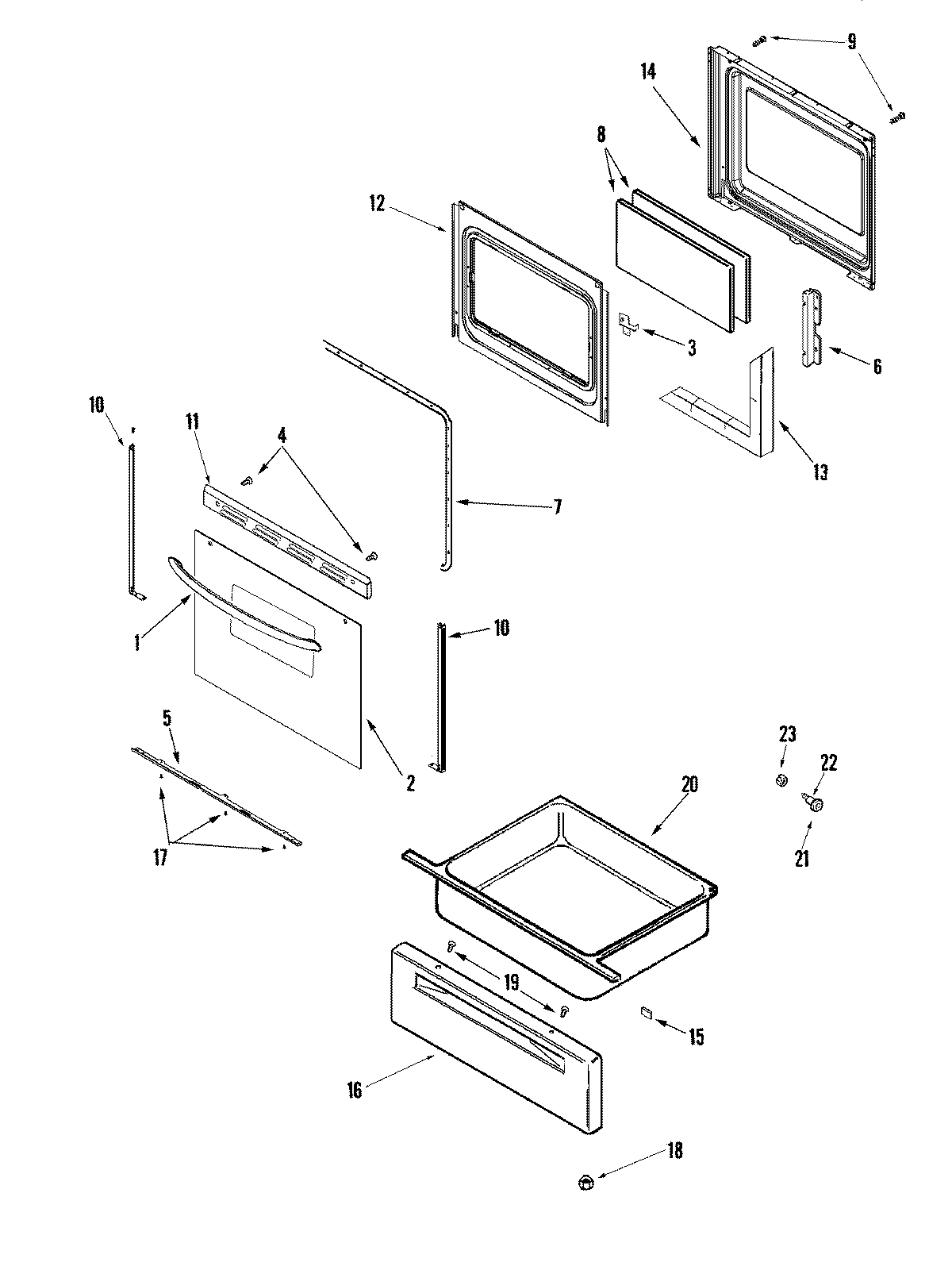

AER5511AAW 03 – DOOR/DRAWER

Products

PositionProduct
1HANDLE, DOOR (WHT)
2MAY 74003146
2MAY 12002393
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4MAY 74006295
4MAY 74001521
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
10WP74004224 Whirlpool Tape
10WP98008544 Whirlpool Screw Assembly
11MAY 7101P356-60
11WP3608F141-71 Whirlpool Door Trim
12BAFFLE, OVEN DOOR
13MAY 74001842
14NUT, SNAP (ROUND-BLK)
14LINING, OVEN DOOR
15WP74005546 Whirlpool RU Spacer
16MAY 74003399
17SCREW
18WPW10131078 Whirlpool Nut Assembly
20DRAWER, STORAGE
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
