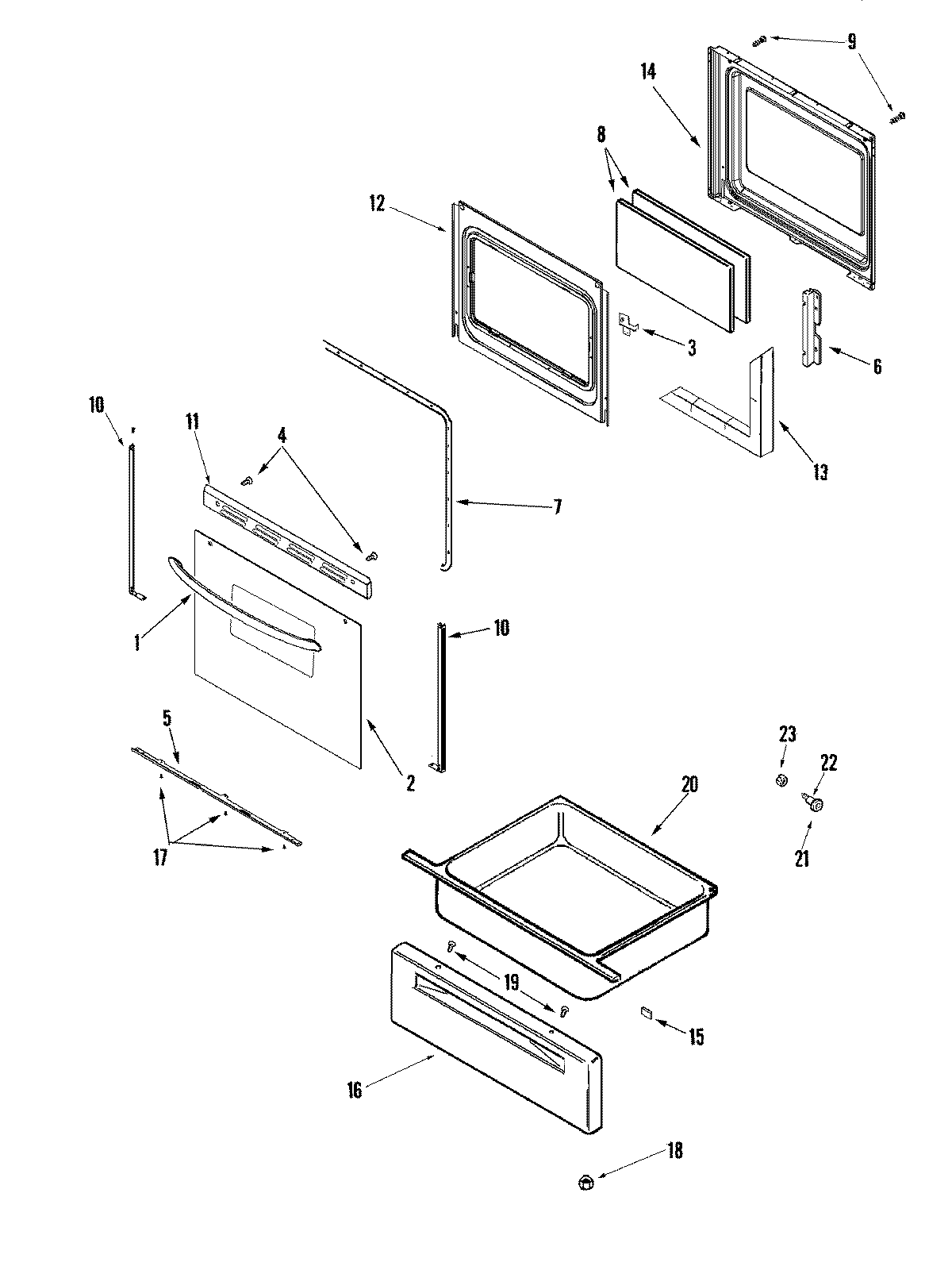

AER5511ACW 03 – DOOR/DRAWER

Products

Position	Product
NI	MAY 74002002
1	HANDLE, DOOR (WHT)
2	MAY 74009727
2	TAPE, FOIL 29“ X 2“
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	MAY 74006295
4	MAY 74001521
4	WP74006515 Whirlpool Washer Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74001844
7	GASKT-DOOR OVEN
8	GLASS, INNER
10	WP74004224 Whirlpool Tape
10	WP3608F116-71 Whirlpool Door Trim
10	WP3608F117-71 Whirlpool Door Trim
11	MAY 7101P356-60
11	MAY 74009689
12	BAFFLE, OVEN DOOR
13	MAY 74001842
14	LINING, OVEN DOOR
14	NUT, SNAP (ROUND-BLK)
15	WP74005546 Whirlpool RU Spacer
16	MAY 74003399
16	WP98008544 Whirlpool Screw Assembly
17	SCREW
18	WPW10131078 Whirlpool Nut Assembly
20	DRAWER, STORAGE
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
