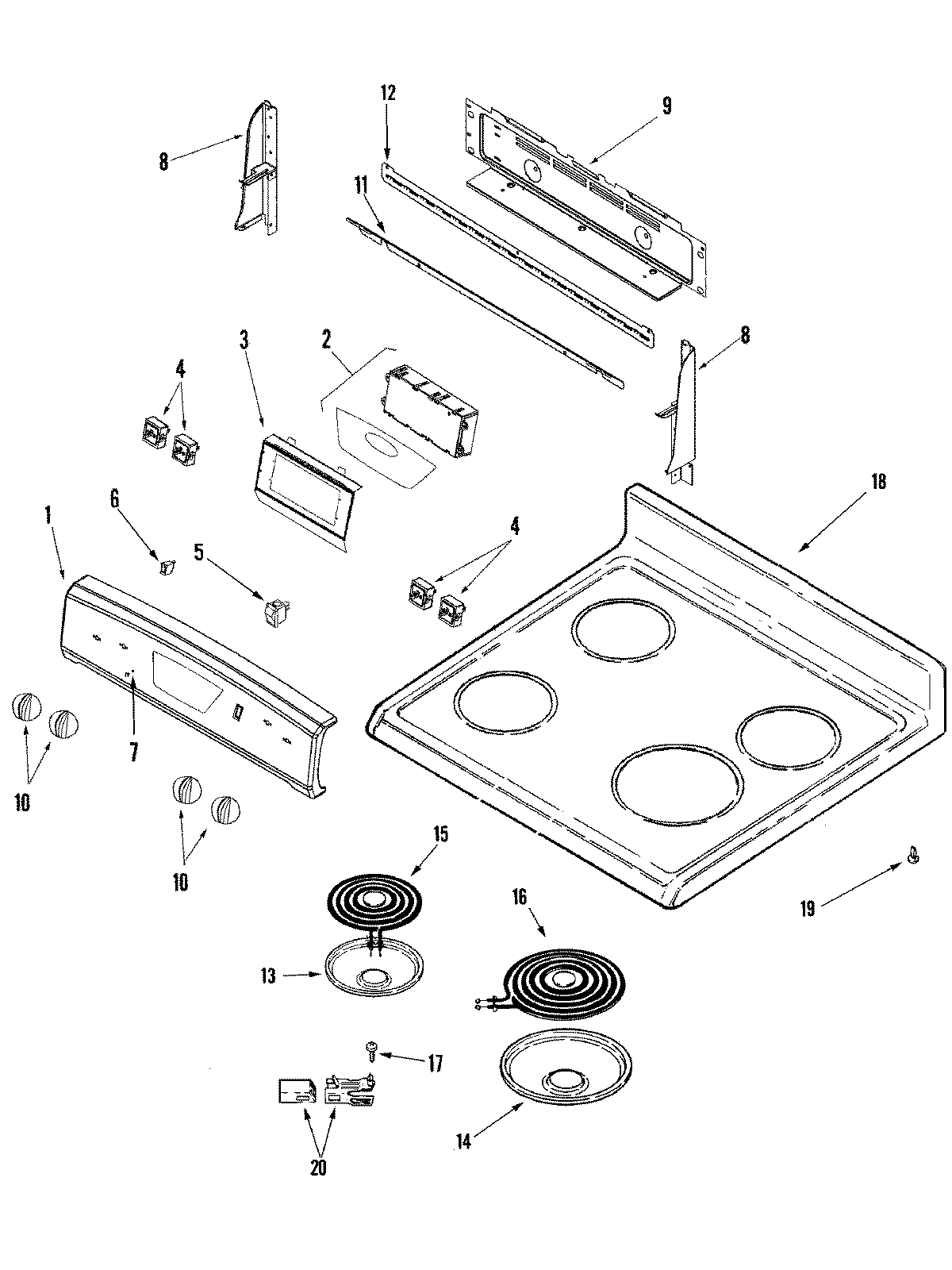

AER5511BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74010304
2	5701M760-60 Whirlpool Electronic Control Board
3	MAY 74008716
3	WP74003976 Whirlpool Screw
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4	WP7403P239-60 Whirlpool Oven Switch
4	SCREW
5	7403P985-60 Whirlpool Rocker Switch (Black)
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74010201
8	MAY 74010202
8	WP98008545 Whirlpool Screw
9	COVER, REAR WIRE
10	MAY 74008731
11	MAY 74009978
11	WP90767 Whirlpool Screw
12	MAY 74009701
12	SCREW (8BX3/8-NI)
13	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
14	MAY Y04100393
15	WPW10259868 Whirlpool Surface Heating Element
16	WPW10345410 Whirlpool Surface Element
17	WP74004005 Whirlpool Screw
18	MAY 74003582
19	W11189172 Whirlpool Glide Drawer
20	WP74007474 Whirlpool Dishwasher Element Receptacle
