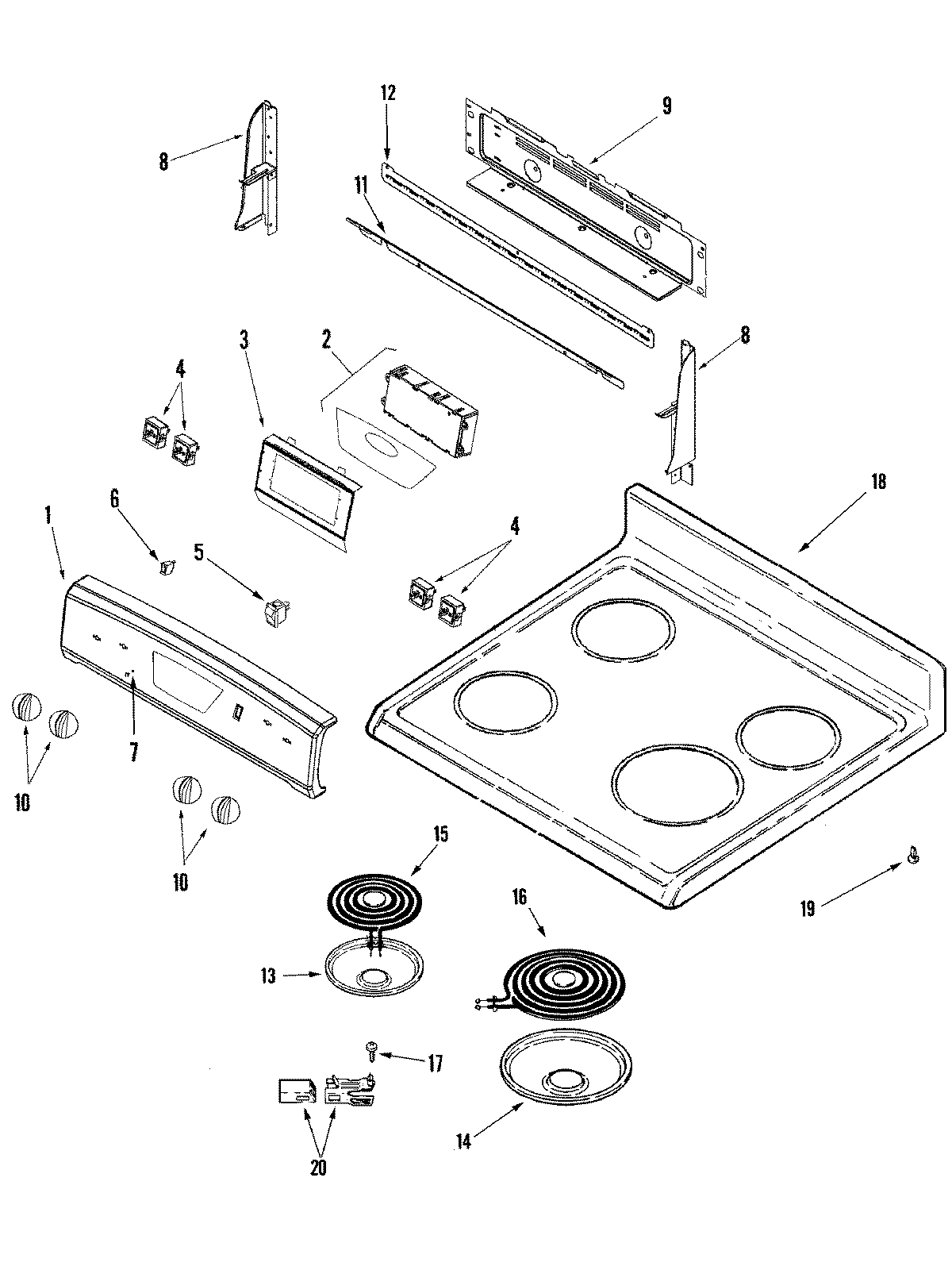

AER5511BAQ 02 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
AER5511BAQ 02 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74008712
2
MAY 74010294
3
WP74003976 Whirlpool Screw
3
MAY 74008716
4
SCREW
4
WP7403P239-60 Whirlpool Oven Switch
4
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5
7403P984-60 Whirlpool RO Switch
6
WP74004153 Whirlpool Indicator Light
7
WP7730P011-60 Whirlpool Indicator Lens
8
MAY 74010714
8
Screw (2) (Bisque)
8
MAY 74010712
9
COVER, REAR WIRE
10
MAY 74008732
11
WP90767 Whirlpool Screw
11
MAY 74009978
12
SCREW (8BX3/8-NI)
12
MAY 74009701
13
W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
15
WPW10259868 Whirlpool Surface Heating Element
16
WPW10345410 Whirlpool Surface Element
17
WP74004005 Whirlpool Screw
18
MAY 74010346
19
W11189172 Whirlpool Glide Drawer
20
WP74007474 Whirlpool Dishwasher Element Receptacle
←
