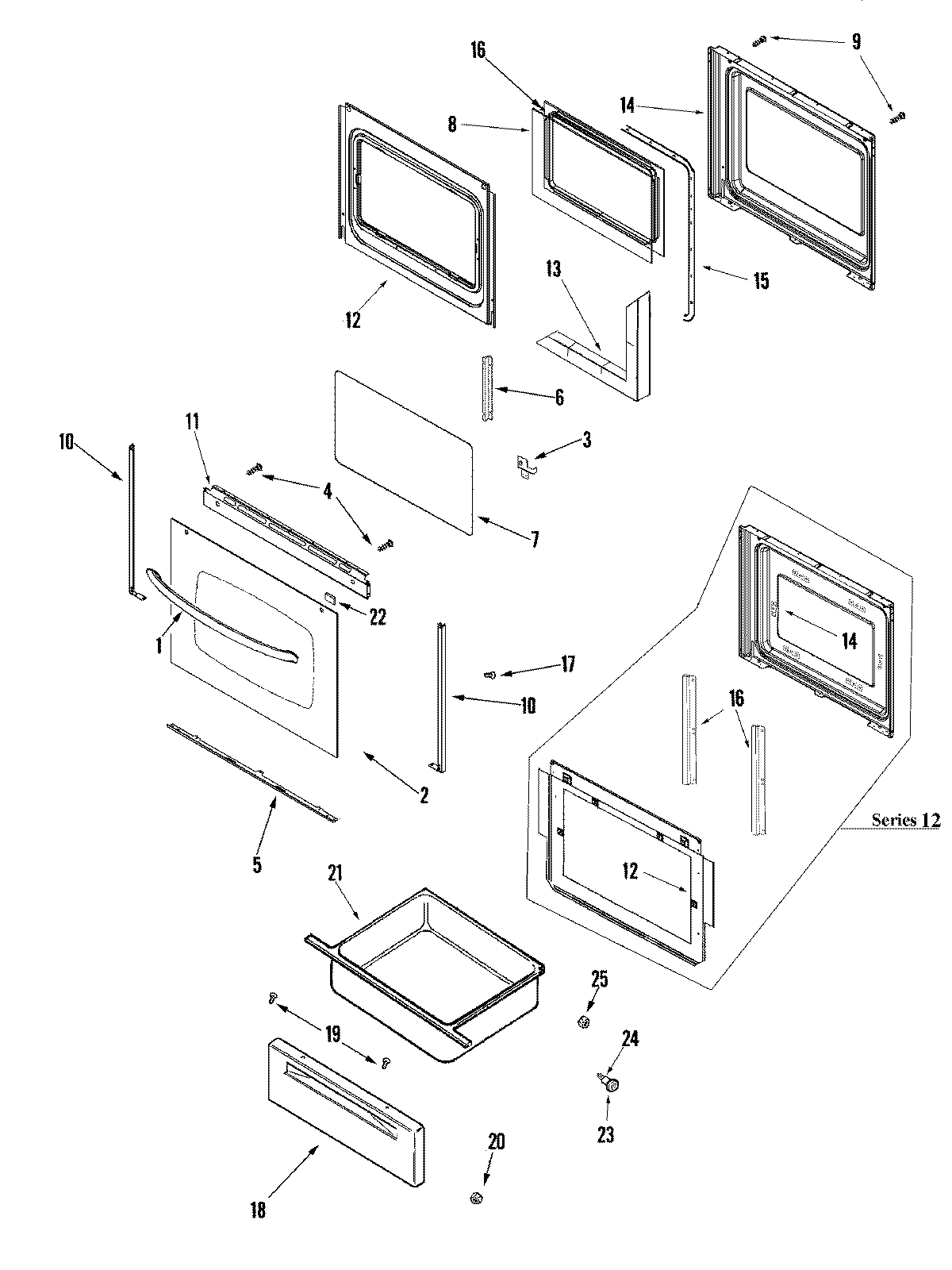

AER5511BAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008323
2MAY 74009733
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
10WP74004224 Whirlpool Tape
10TRIM, DOOR (BSQ-LT)
10TRIM, DOOR (BSQ-RT)
11MAY 74009691
12SCREW
12MAY 74011339
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14WP74005546 Whirlpool RU Spacer
14NUT, SNAP (ROUND-BLK)
14LINING, DOOR
14MAY 74003642
15GASKT-DOOR OVEN
163801F886-51 Whirlpool Mounting Bracket
16FRAME, GLASS
17WP74009541 Whirlpool Screw Assembly
18MAY 74005055
18SCREW, 8 X 1/2
20WPW10131078 Whirlpool Nut Assembly
21MAY 74008337
22SPACER, RUBBER (BLK-SQUARE)
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
