AER5511BAW 03 – DOOR/DRAWER

AER5511BAW 03 – DOOR/DRAWER

Written by

in

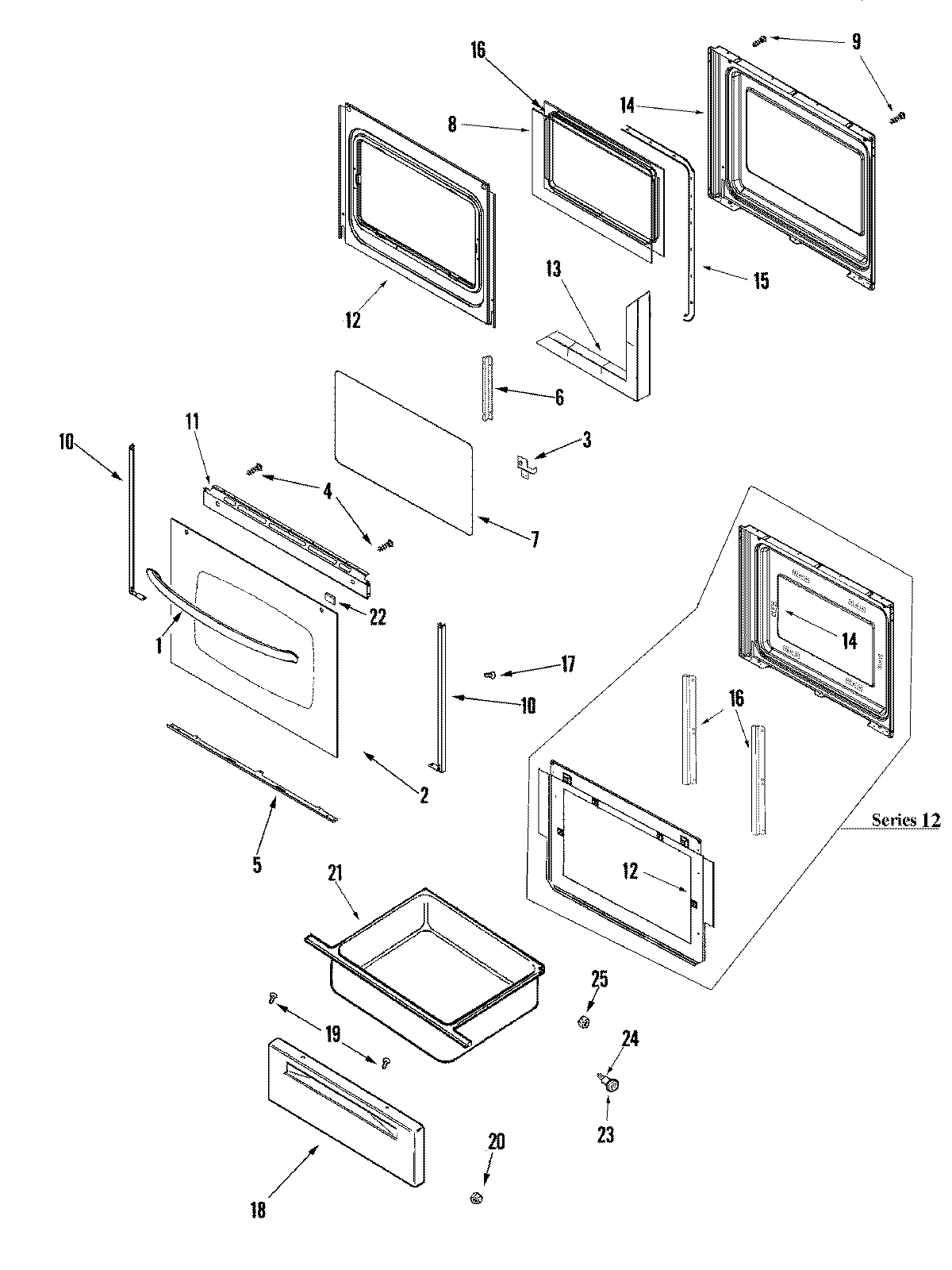

AER5511BAW 03 – DOOR/DRAWER

Products

PositionProduct
1HANDLE, DOOR (WHT)
2MAY 74009732
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
10WP74004224 Whirlpool Tape
10WP3608F116-71 Whirlpool Door Trim
11WP3608F141-71 Whirlpool Door Trim
123601F373-51 Whirlpool Baffle
12SCREW
12MAY 74011339
13INSULATION, OVEN DOOR
14LINING, DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
14WP74005546 Whirlpool RU Spacer
15GASKT-DOOR OVEN
16FRAME, GLASS
163801F886-51 Whirlpool Mounting Bracket
17WP98008544 Whirlpool Screw Assembly
18SCREW, 8 X 1/2
18MAY 74003399
20WPW10131078 Whirlpool Nut Assembly
21MAY 74008337
22SPACER, RUBBER (BLK-SQUARE)
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
