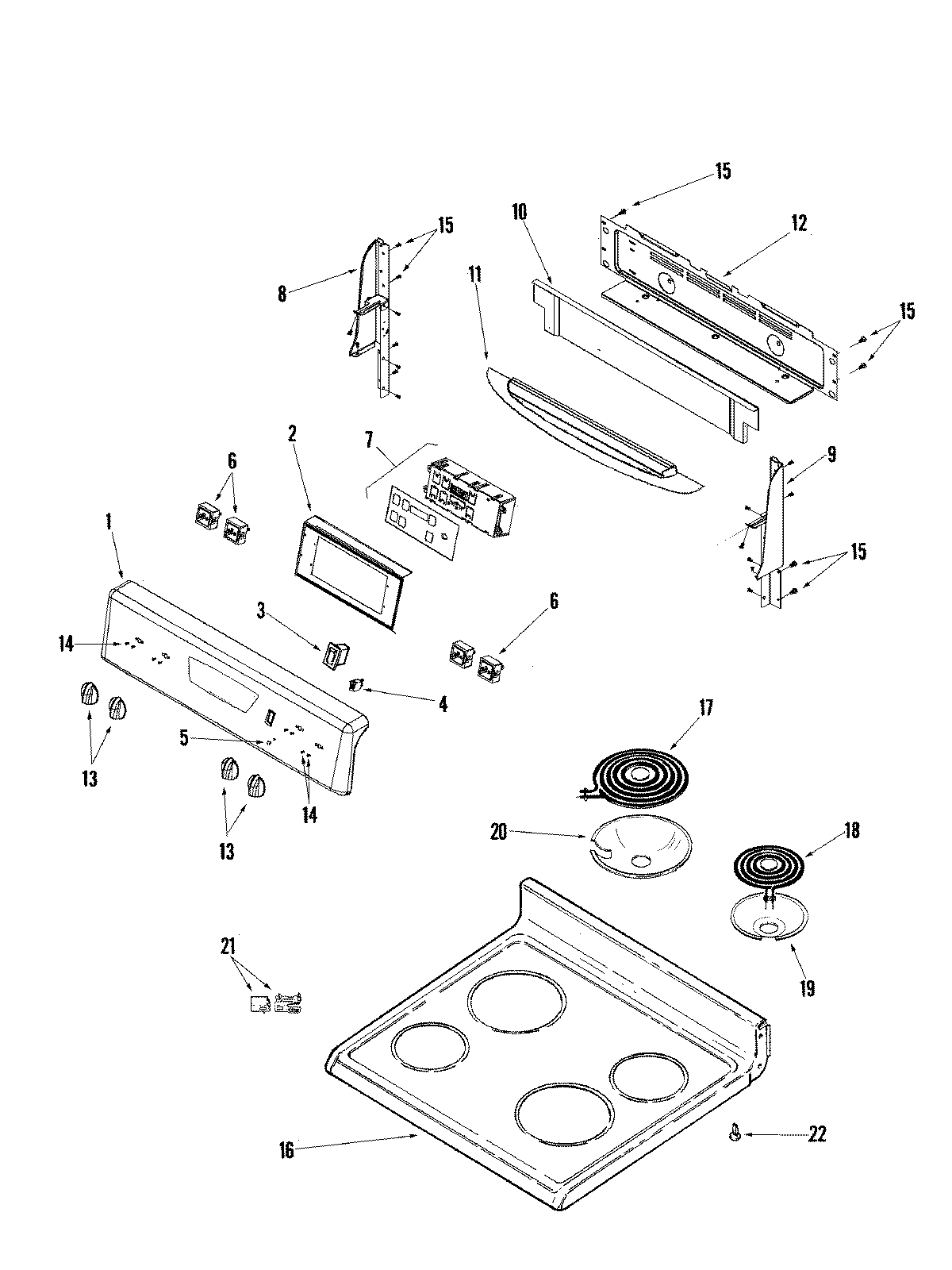

AER5515QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008712
2MAY 74008716
374008765 Whirlpool Range Oven Rocker Switch Bisque
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74008633
7WP5701M719-60 Whirlpool Electronic Control Board
8END CAP (LT-BSQ)
9END CAP (RT-BSQ)
10MAY 74009207
10MAY 74008727
11SHIELD, HEAT VISOR (BSQ)
11MAY 74008729
12MAY 74008730
13MAY 74008732
14SCREW
15SCREW
16MAY 74008738
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
