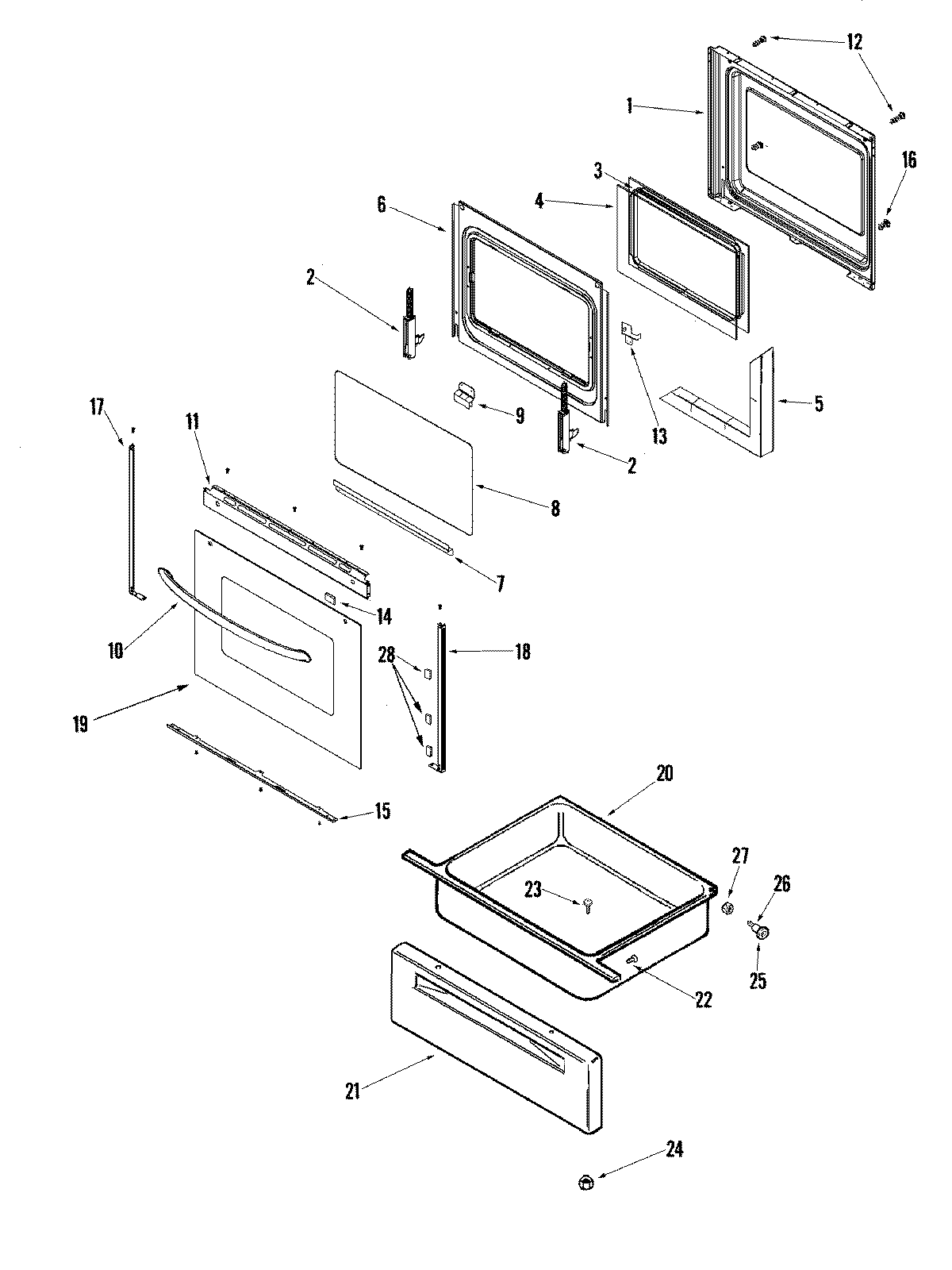

AER5515QAQ 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008742
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74008323
11MAY 74008748
11WP74009541 Whirlpool Screw Assembly
12WP74006515 Whirlpool Washer Screw
13MAY 74008749
13MAY 74008750
14WP74004224 Whirlpool Tape
15TRIM, BOTTOM (BSQ)
16SCREW (10-24X5/16-NI)
17MAY 74008754
18TRIM, SIDE (BSQ)
18MAY 74008752
19GLASS, DOOR (BSQ)
20DRAWER, STORAGE
21MAY 74008756
22SCREW
23WP7101P072-60 Whirlpool Screw
24WPW10131078 Whirlpool Nut Assembly
25WP74004078 Whirlpool Door Roller
26SHAFT, STORAGE DRAWER ROLLER
27WP488130 Whirlpool Air Conditioner Nut
28WP74009014 Whirlpool Double Tape
