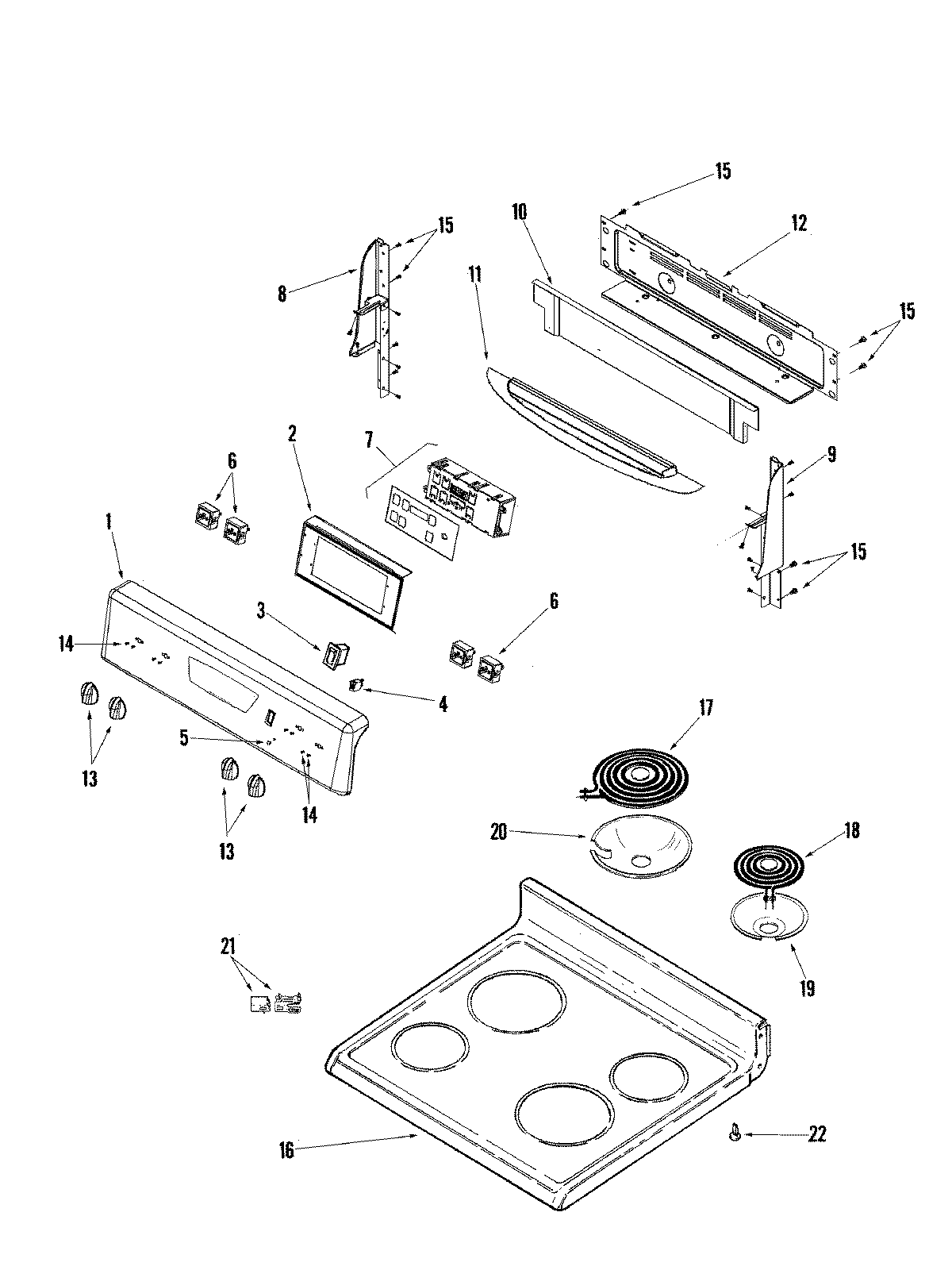

AER5515QAW 03 – CONTROL PANEL/TOP ASSEMBLY

AER5515QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5515QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008711
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7WP5701M719-60 Whirlpool Electronic Control Board
8Latch Assembly
9END CAP (RT-WHT)
10MAY 74009206
10MAY 74008726
11MAY 74008728
11MAY 74009203
12MAY 74008730
14SCREW
15SCREW
16MAY 74008737
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
