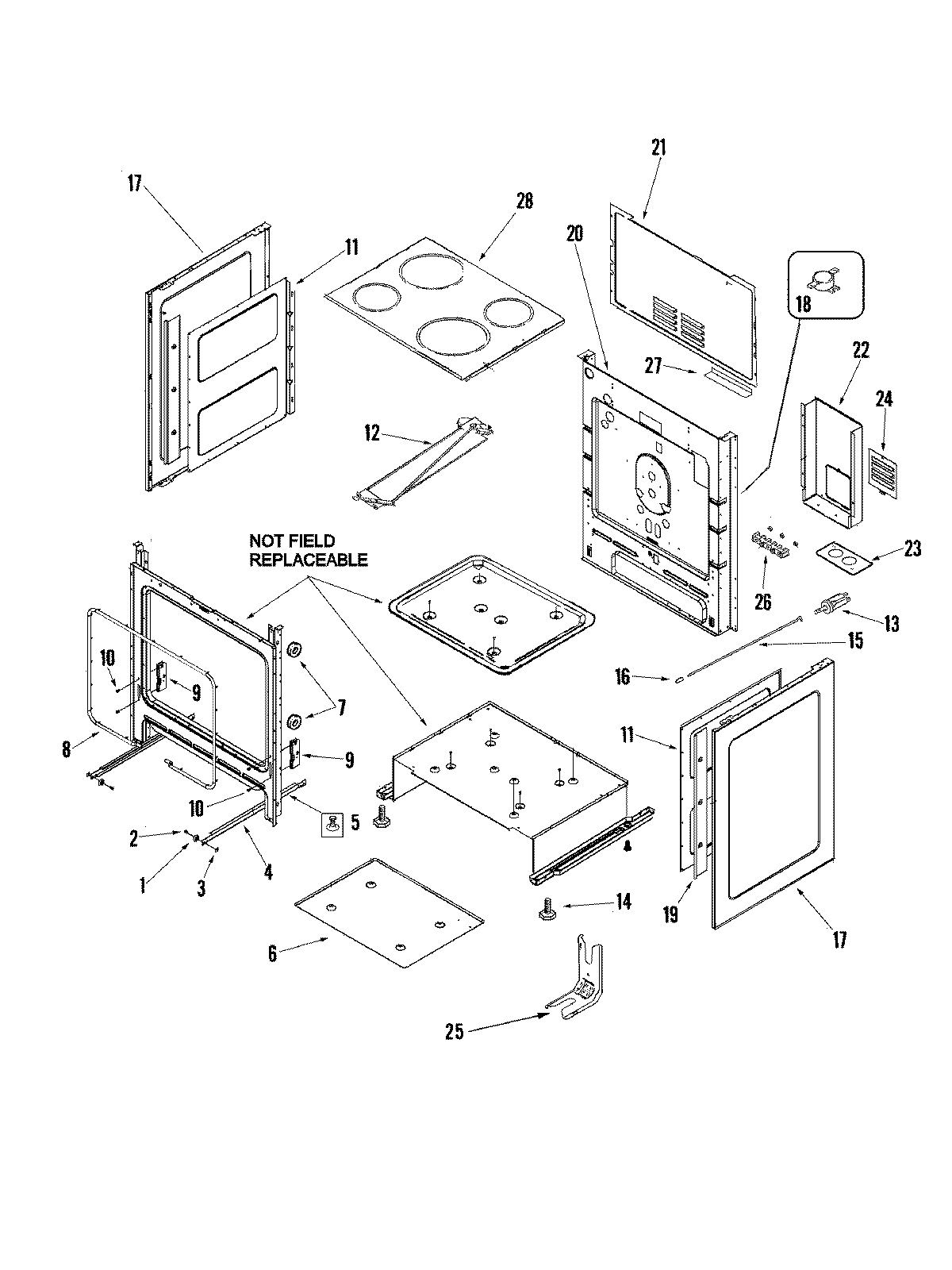

AER5515QCW 01 – CABINET

Products

Position	Product
NI	MAY 7402P050-60
1	WP74004078 Whirlpool Door Roller
2	SHAFT, STORAGE DRAWER ROLLER
3	74005230 Whirlpool Oven Lock Nut (8-32)
4	RUNNER, SERVICE DRAWER
5	MAY 74008688
6	MAY 74008689
7	SCREW W/SHOULDER (No.8)
7	SPACER, SIDE PANEL
8	W11562931 Whirlpool Door Gasket
9	WP74010551 Whirlpool Receiver
10	WP4159193 Whirlpool Screw
11	MAY 74008701
12	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12	MAY 74008702
13	MAY 74008704
13	74008703 Whirlpool Door Switch
14	W11665456 Whirlpool Range Level Foot
14	74008835 Whirlpool Clip Retainer
15	SLEEVE, ROD TUBE
15	MAY 74008706
16	74008707 Whirlpool Oven Bumper
17	MAY 74008709
18	74008715 Whirlpool Thermal Limiter Switch
18	SCREW
19	MAY 74008831
19	MAY 74009956
20	MAY 74008699
21	COVER, MAIN WIRE (ELE)
22	MAY 74008760
23	PLATE, CONDUIT REINFORCEMENT
24	MAY 74008340
25	WP7101P485-60 Whirlpool Anchor Tip
25	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26	WPW10245259 Whirlpool Terminal Block
27	BOTTOM, WIRE COVER
28	MAY 74008739
