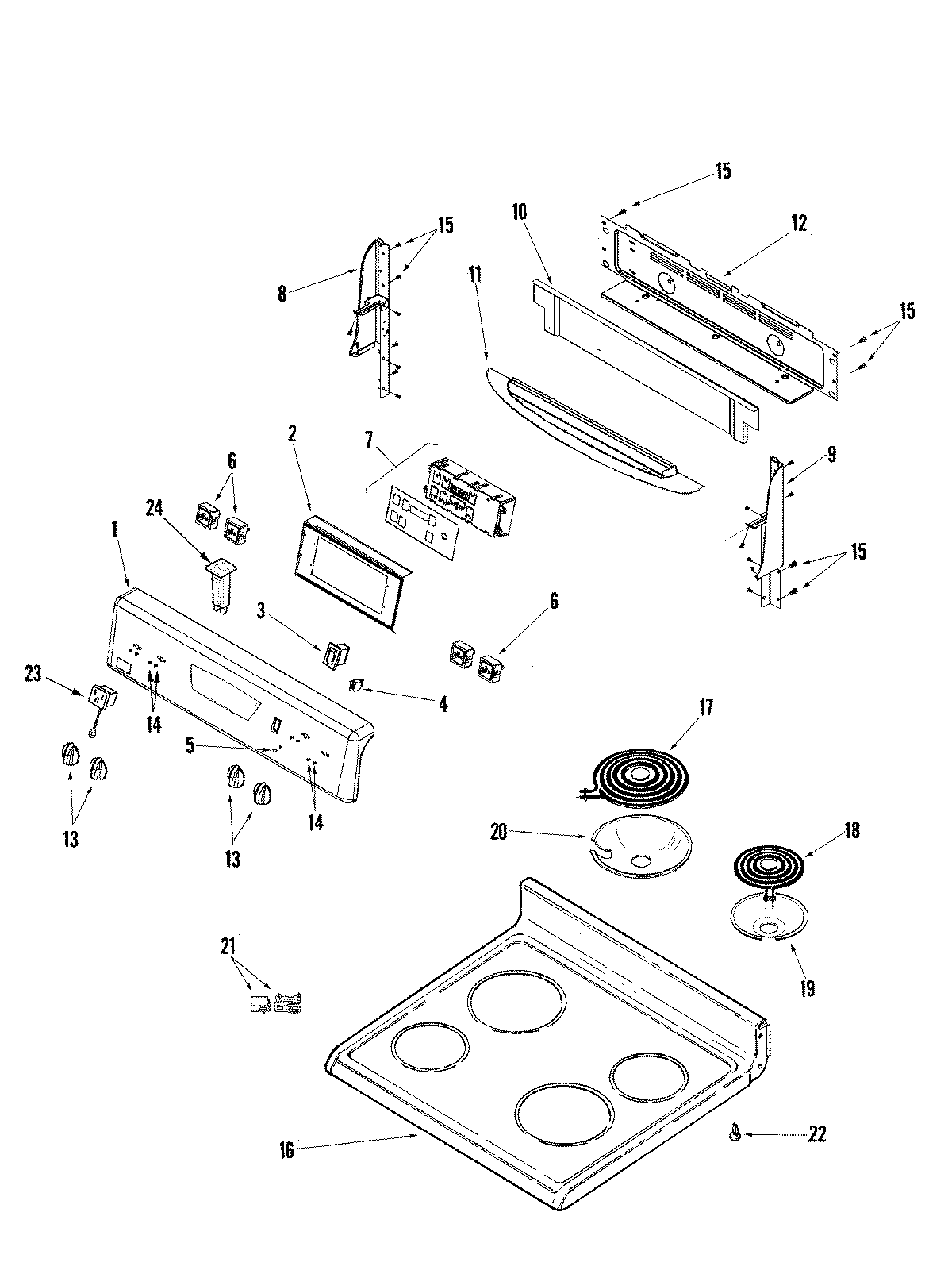

AER5515QCW 03 – CONTROL PANEL/TOP ASSEMBLY

AER5515QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5515QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009331
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7WP5701M717-60 Whirlpool Electronic Control Board
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009206
11MAY 74009203
12MAY 74008730
14SCREW
16MAY 74008737
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
20MAY Y04100393
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
23MAY 71003069
23SCREW
24MAY 74009322
