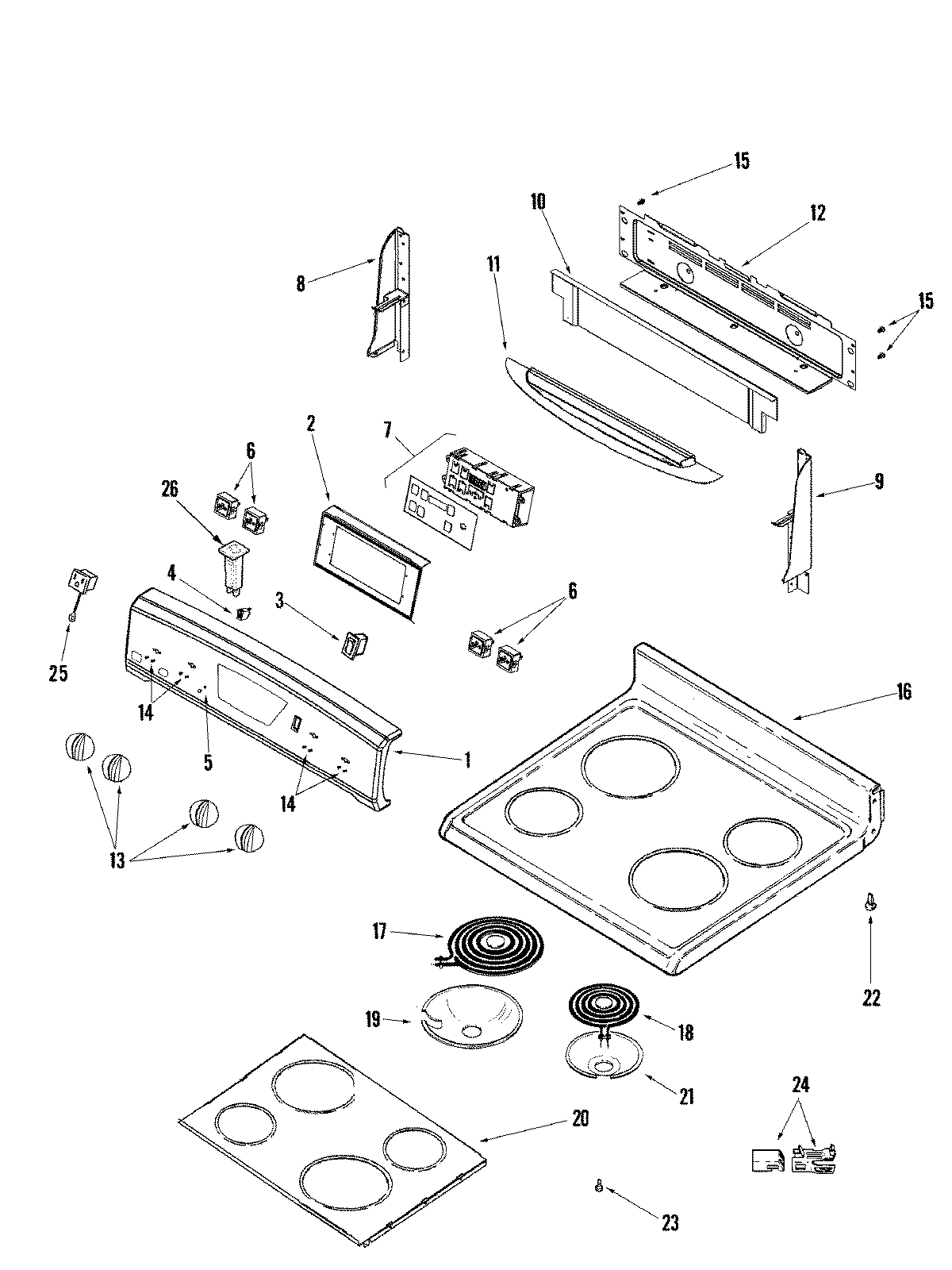

AER5515RCW 03 – CONTROL PANEL/TOP ASSEMBLY

AER5515RCW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5515RCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009331
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M719-60 Whirlpool Electronic Control Board
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009444
11MAY 74009203
12MAY 74008836
12MAY 74010983
14SCREW
16MAY 74008737
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19MAY Y04100393
20MAY 74008739
21WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2274008761 Whirlpool Spacer Snap-In
24WP74007474 Whirlpool Dishwasher Element Receptacle
24WP74004005 Whirlpool Screw
25MAY 71003069
25SCREW
26MAY 74009322
