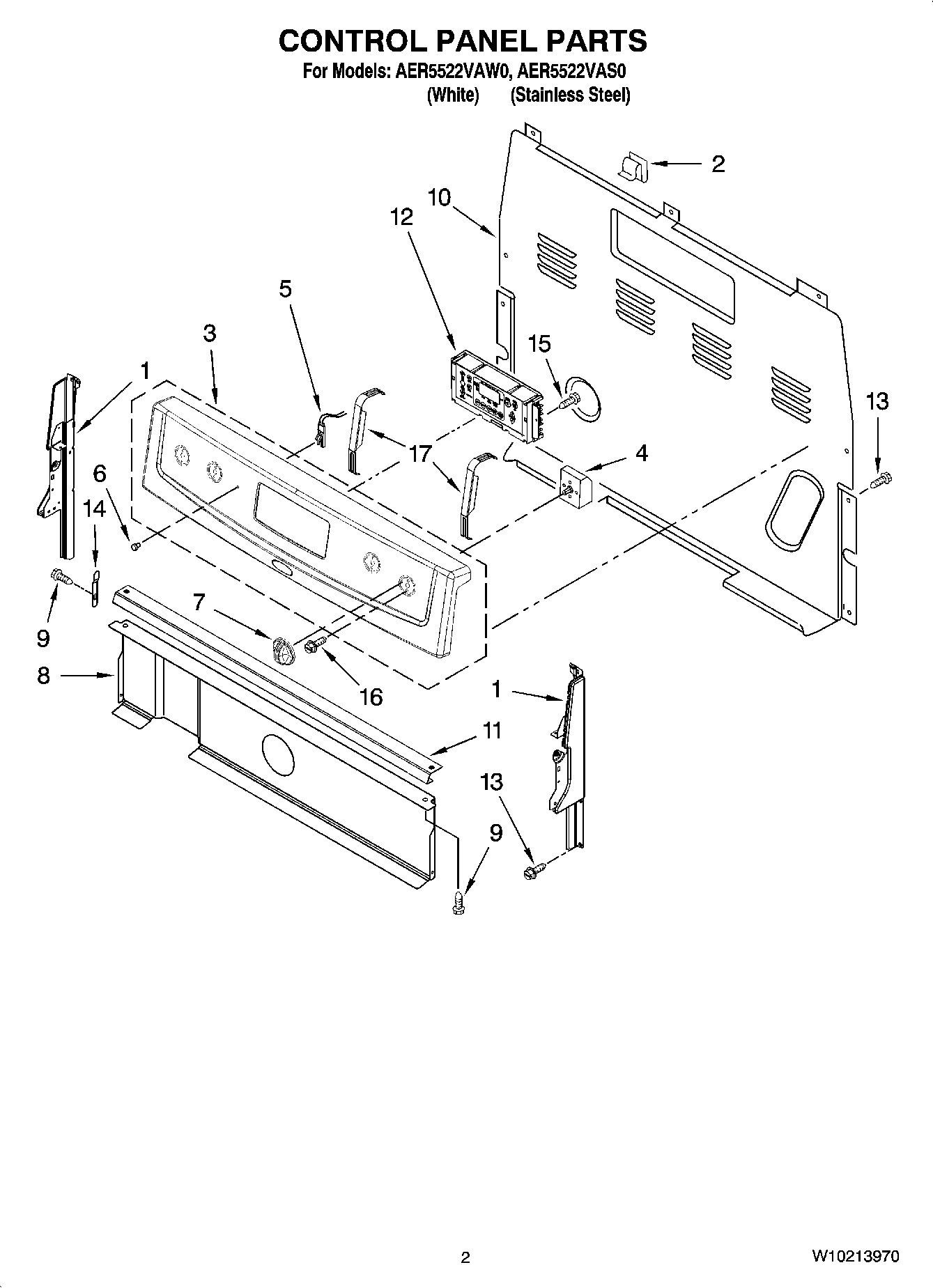

AER5522VAS0 02 – CONTROL PANEL PARTS

AER5522VAS0 02 – CONTROL PANEL PARTS

Written by

in

AER5522VAS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10009040
1MAY W10009050
1MAY W10009090
1MAY W10009080
2MAY 8273564
3MAY W10170010
3MAY W10170009
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
7KNOB, INFINITE (BLACK)
8MAY 8053912
9Screw (White)
10COVER, UPPER REAR
11Bracket, Console
12MAY W10173506
12MAY W10173507
13SCREW
14CLIP, SPRING
15SCREW
16SCREW
17BRACKET, MOUNTING, EOC
