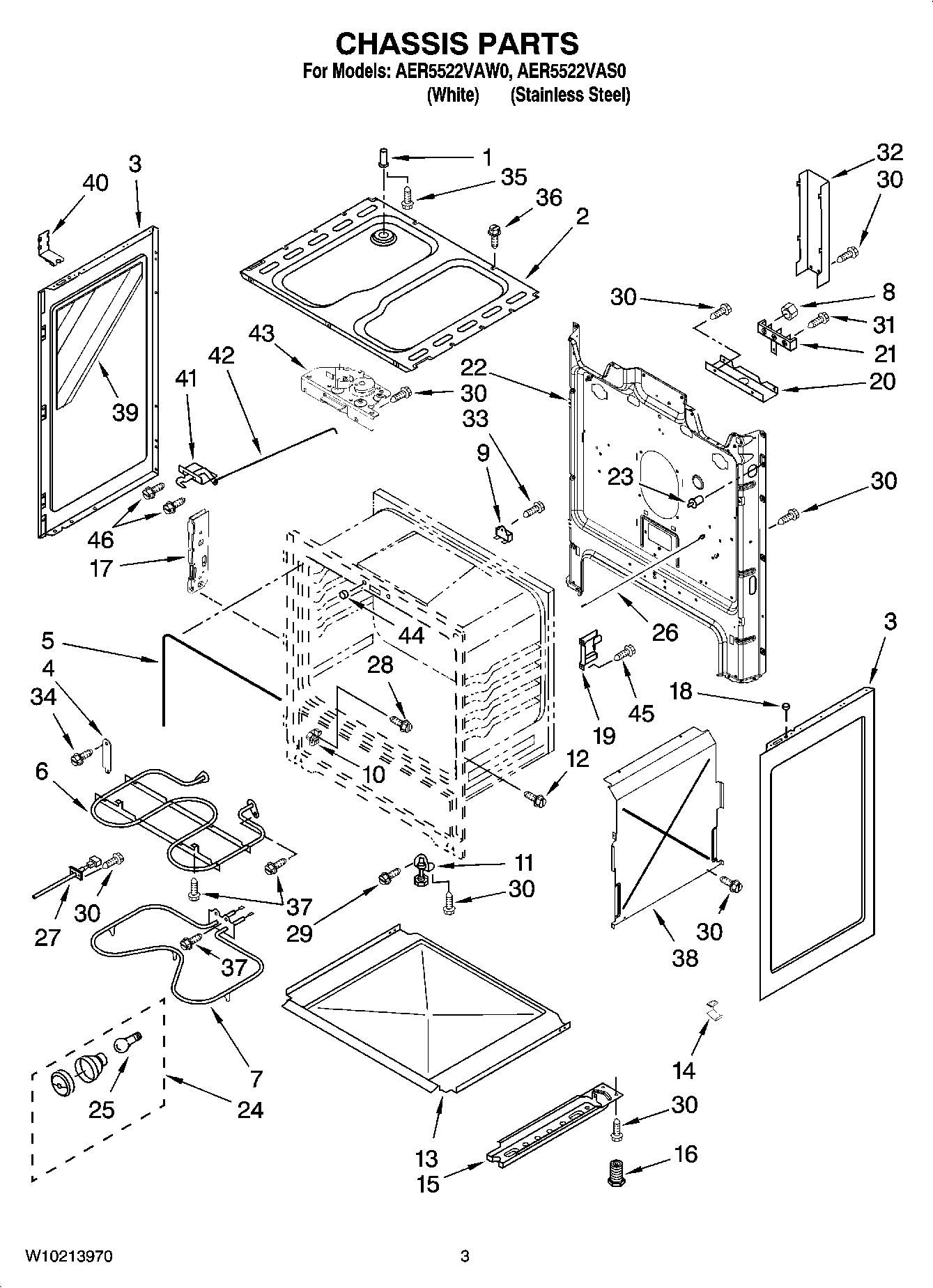

AER5522VAS0 03 – CHASSIS PARTS

AER5522VAS0 03 – CHASSIS PARTS

Written by

in

AER5522VAS0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY 8272616
1	VENT TUBE
2	MAY 3186144
3	Panel, Side (2) (White)
3	MAY 8053832
4	Clip,Door Mntg(2)
5	MAY 8522416
6	ELEMENT, BROIL
7	Element, Bake (Hidden)
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	Glide, Drawer
11	MAY 3196037
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	RAIL, BASE
16	FOOT, LEVELING
17	BRKT – MOUNTING
18	BUMPER, SIDE
19	MAY 3186116
20	BRACKET, SERVICE
21	Block, Terminal
22	MAY 8274034
23	MAY 9757262
24	MAY 3196701
25	BULB, OVEN LIGHT
26	ROD, DOOR SWITCH
27	SENSOR, OVEN
28	SCREW
29	Screw
30	SCREW
31	SCREW
32	MAY 9758283
33	SCREW
34	MAY W10031780
35	SCREW
36	Screw (Black)
37	SCREW
38	RETAINER, INSULATION
39	MAY W10182346
40	Clip, Mounting
41	ASSEMBLY, DOOR LATCH (FRONT)
42	ROD, LATCH
43	ASSEMBLY, DOOR LATCH (REAR)
44	SPACER, DOOR
45	SCREW
46	SCREW
